NTDP Interval Time: Enter the interval to collect topology information.

NTDP Hops: Enter the hop count the switch topology collects.

NTDP Hop Delay:

Enter the time between the switch receiving NTDP request

packets and the switch forwarding NTDP request packets for

the

first time.

NTDP Port Delay:

Enter the time between the port forwarding NTDP request packets

and its adjacent port forwarding NTDP request packets over.



Port Config

Selected Port(s): Select a port will enable NTDP function of the port.

Unselected Port(s): Unselect a port will disable NTDP function of the port.

Note:

NTDP function is effective only when NTDP function is enabled globally and for the port.

17.3 Cluster

A commander switch can recognize and add the candidate switch to a cluster automatically based

on NDP and NTDP. You can manually add the candidate switch to a cluster. If the candidate switch

is successfully added to the cluster, it will get a private IP address assigned by the commander

switch. You can manage and configure the member switch via the commander switch.

The Cluster function can be implemented on Cluster Summary, Cluster Config, Member Config

and Cluster Topology pages.

17.3.1 Cluster Summary

On this page you can view the status of the current cluster.

Choose the menu Cluster→Cluster→Cluster Summary to load the following page.

 For a candidate switch, the following page is displayed:

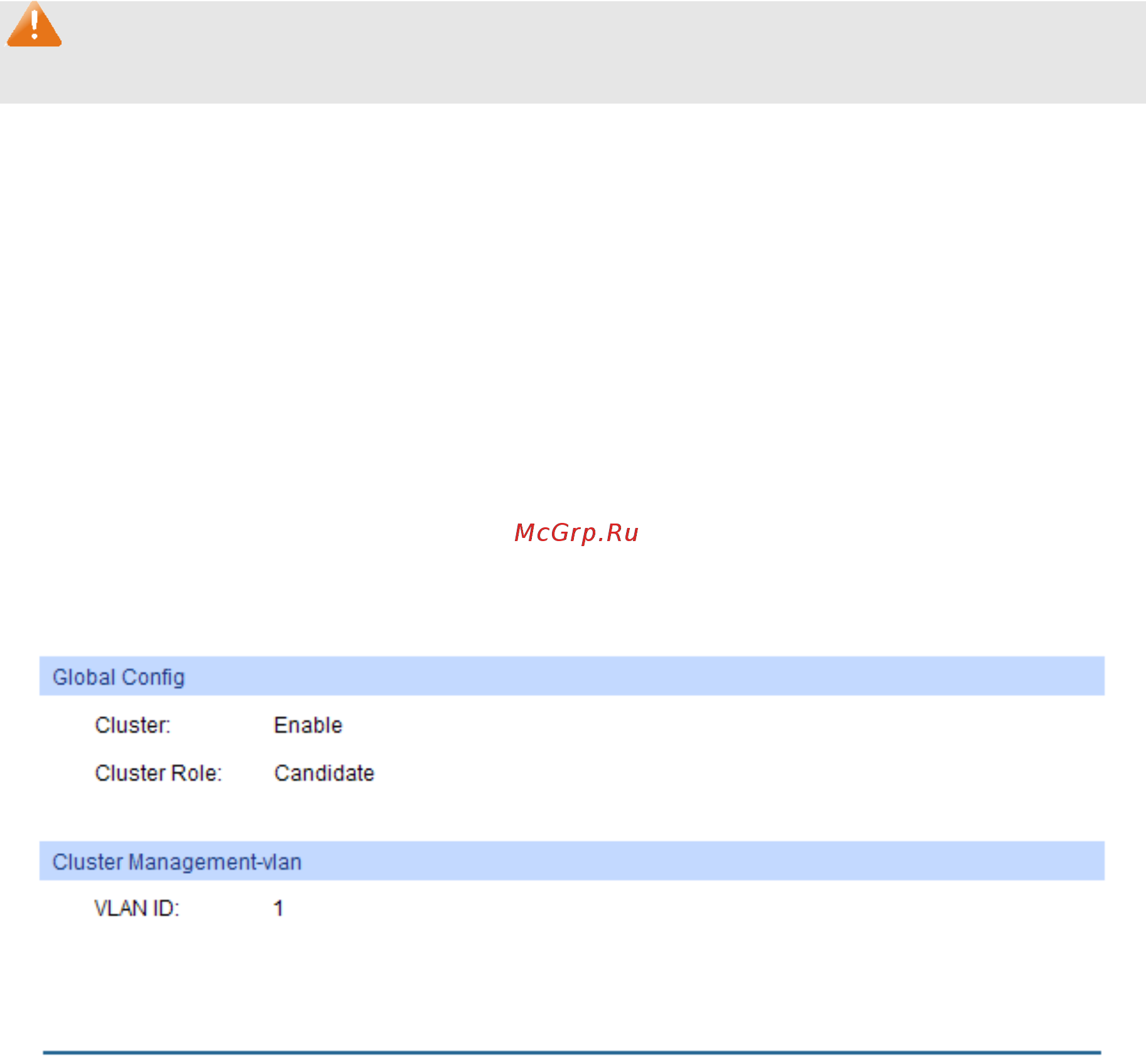

Figure17-9 Cluster Summary for Candidate Switch

The following entries are displayed on this screen:



Global Config

Cluster: Displays the cluster status (enabled or disabled) of the switch.
