294

Configuration Procedure:

Step Operation Description

Configure effective

time-range

Required. On ACL→Time-Range

configuration pages,

configure the effective time-ranges for ACLs.

Configure ACL rules Required. On ACL→ACL Config

configuration pages,

configure ACL rules to match packets.

Configure Policy Required. On ACL→Policy Config configuration pages,

configure the policy to control the data packets those match

the corresponding ACL rules.

Bind the policy to the

port/VLAN

Required. On ACL→Policy Binding configuration pages,

bind the policy to the port/VLAN to make the policy effective

on the corresponding port/VLAN.

13.5 Application Example for ACL

 Network Requirements

1. The manager of the R&D department can access to the forum of the company without any

forbiddance. The MAC address of the manager is 00-64-A5-5D-12-C3.

2. The staff of the R&D department can visit the forum during the working time.

3. The staff of the marketing department cannot visit the forum during the working time.

4. The R&D department and marketing department cannot communicate with each other.

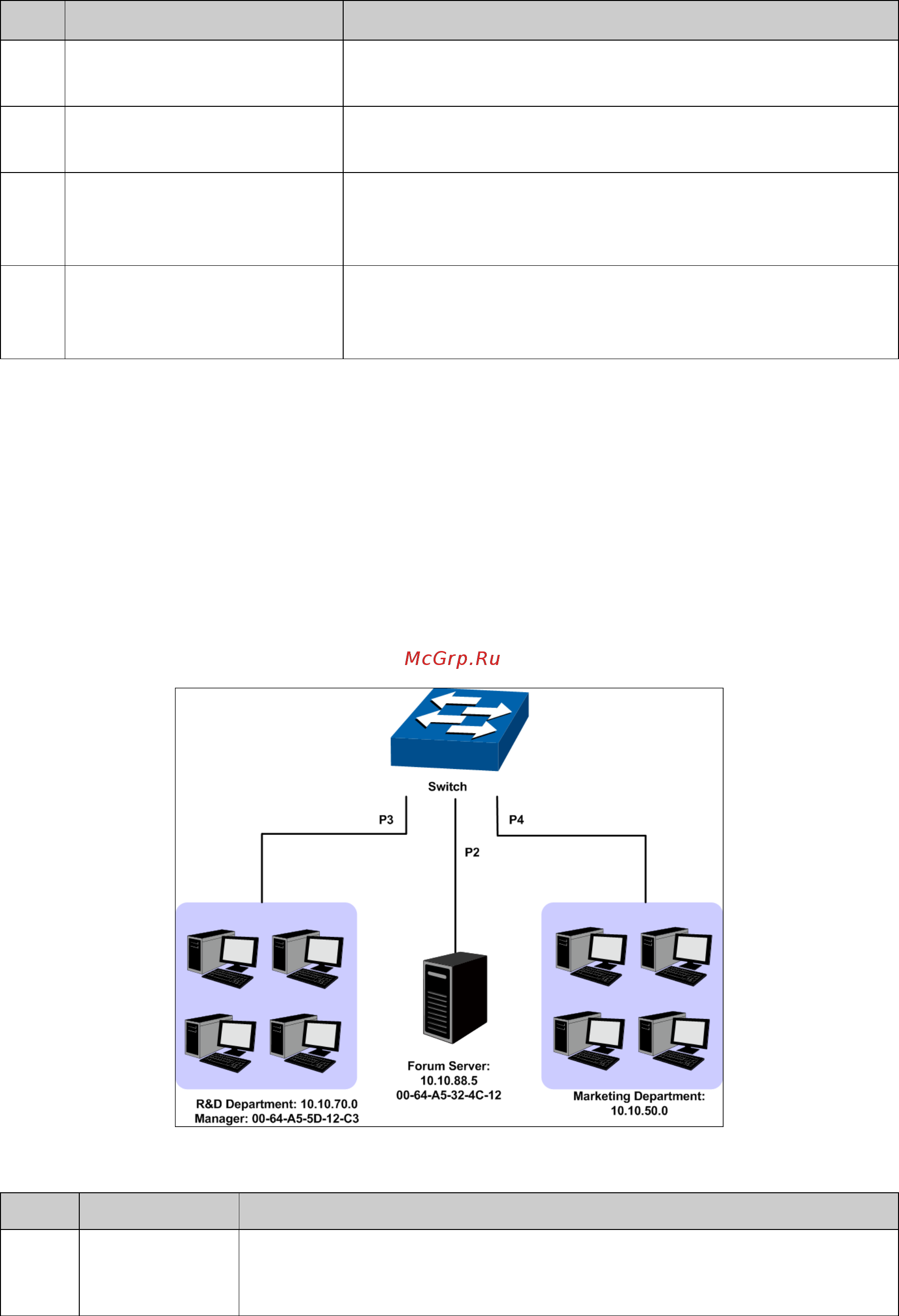

 Network Diagram

 Configuration Procedure

Step Operation Description

1 Configure

Time-range

On ACL→Time-Range page, create a time-

range named work_time.

Select Week mode and configure the week time from Monday to Friday.

Add a time-slice 08:00~18:00.
