Tp-Link T2700G-28TQ [43/420] Application example 1 for ssh

2. After the Key File is downloaded, the user’s original key of the same type will be replaced.

The wrong uploaded file will result in the SSH access to the switch via Password

authentication.

Application Example 1 for SSH:



Network Requirements

1. Log on to the switch via password authentication using SSH and the SSH function is enabled

on the switch.

2. PuTTY client software is recommended.



Configuration Procedure

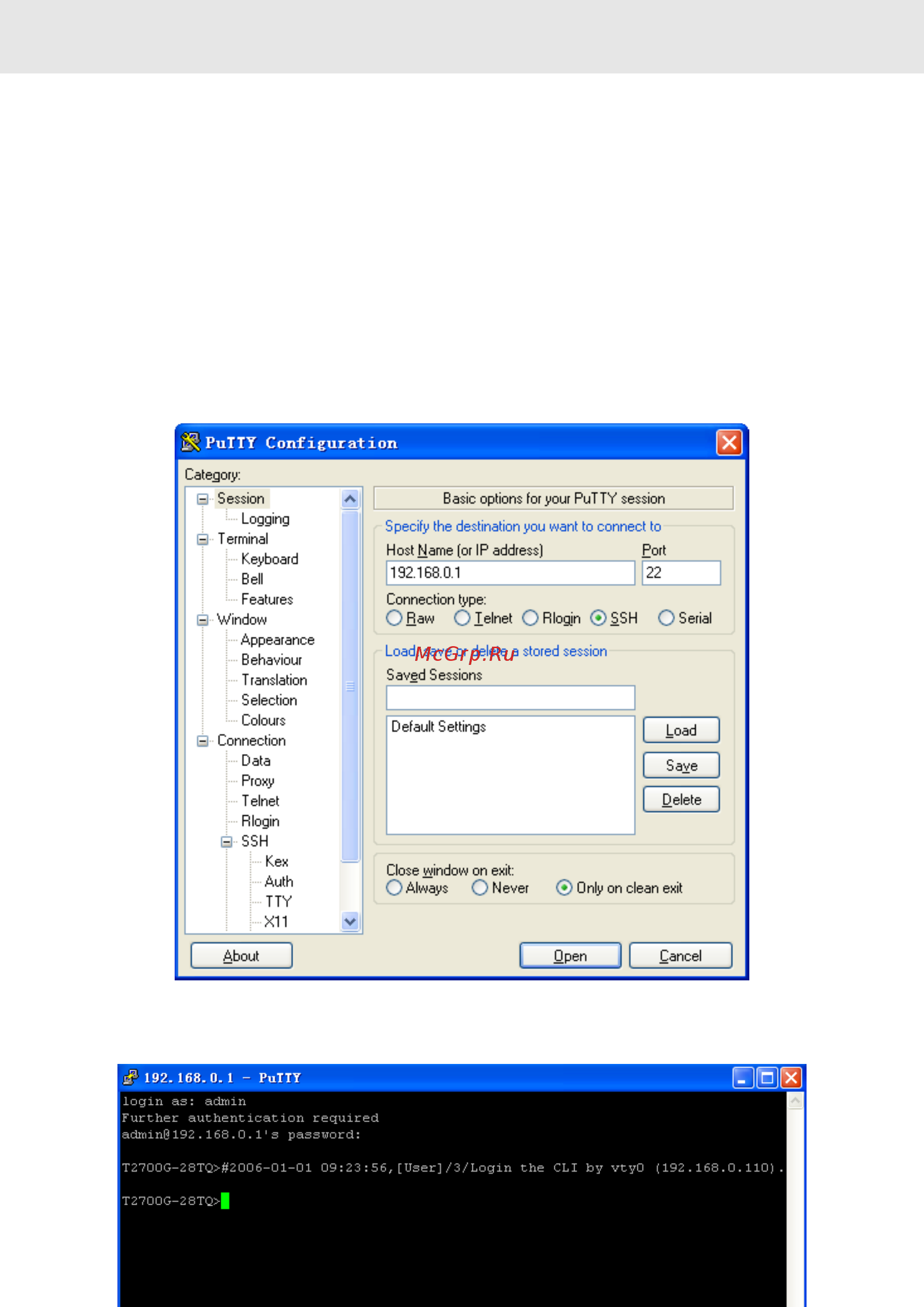

1. Open the software to log on to the interface of PuTTY. Enter the IP address of the switch into

Host Name field; keep the default value 22 in the Port field; select SSH as the Connection

type.

2. Click the Open button in the above figure to log on to the switch. Enter the login user name and

password, and then you can continue to configure the switch.

Application Example 2 for SSH:



Network Requirements

1. Log on to the switch via key authentication using SSH and the SSH function is enabled on the

switch.
