CS261 RS-232 Control Tool
4
RS-232 Operation
Overview
The CS261’s built-in bi-directional RS-232 serial interface allows system
control through a high-end controller or PC. RS-232 serial operations in a
CS261 installation are managed via HyperTerminal sessions on systems that
are running Windows. In order to use this feature to send commands to the
CS261, you must first download and install a HyperTerminal application. For
more detailed instructions and information about each of the commands
provided in this manual, please refer to the original CS261 user manual.
Setup
Install a HyperTerminal application on a computer that is not part of the CS261
setup, which will be connected and used to control the CS261 via RS-232.
HyperTerminal applications can be download from the internet, and many
operating systems are embedded with HyperTerminal applications.

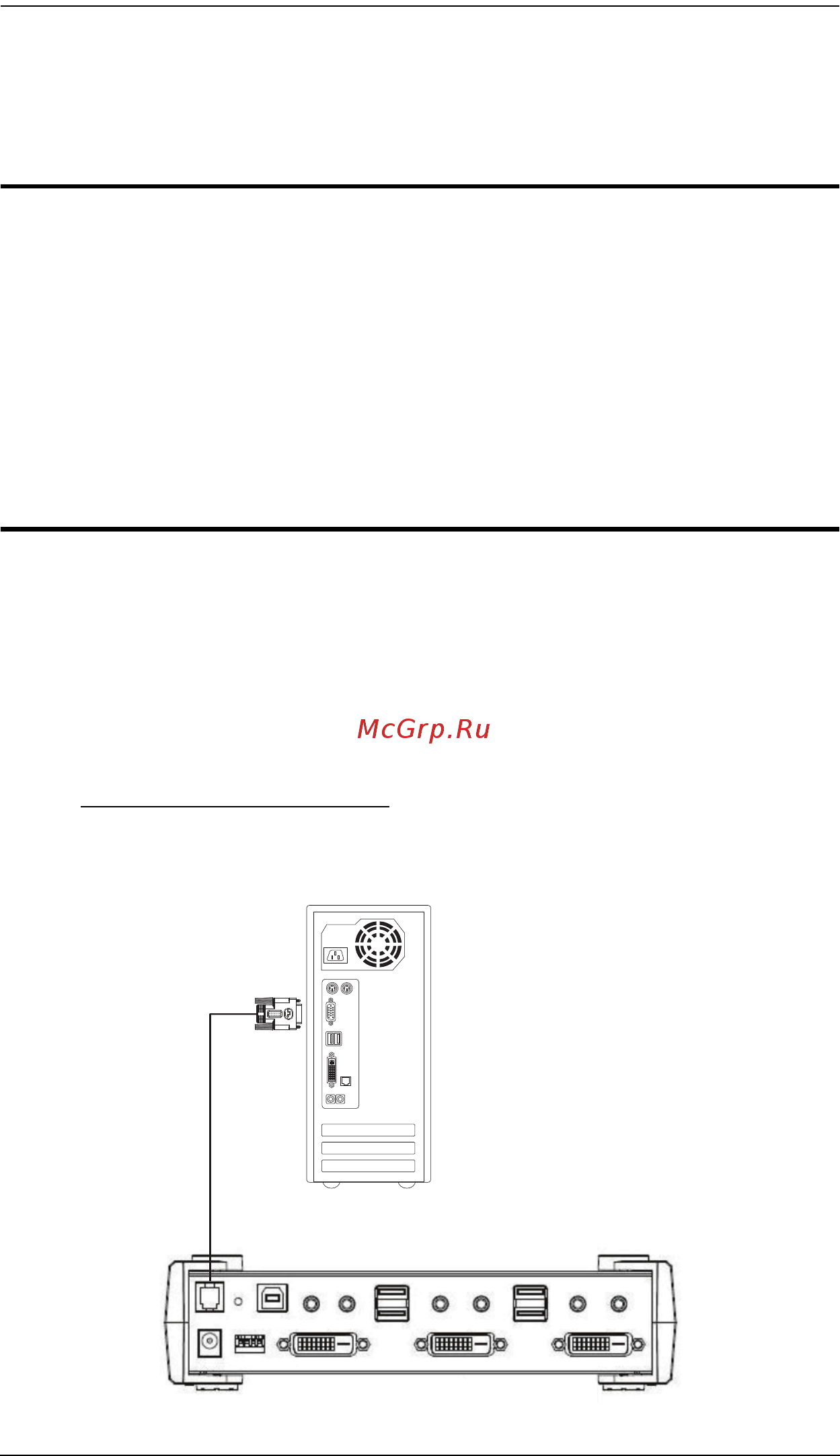

Hardware Connection
Use an RJ-11 to DB-9 serial adapter
(ATEN model no.: LIN5-04A2-J11G) to
connect the computer’s serial port to the Serial port of the CS261, as shown
below:
