- 5 -

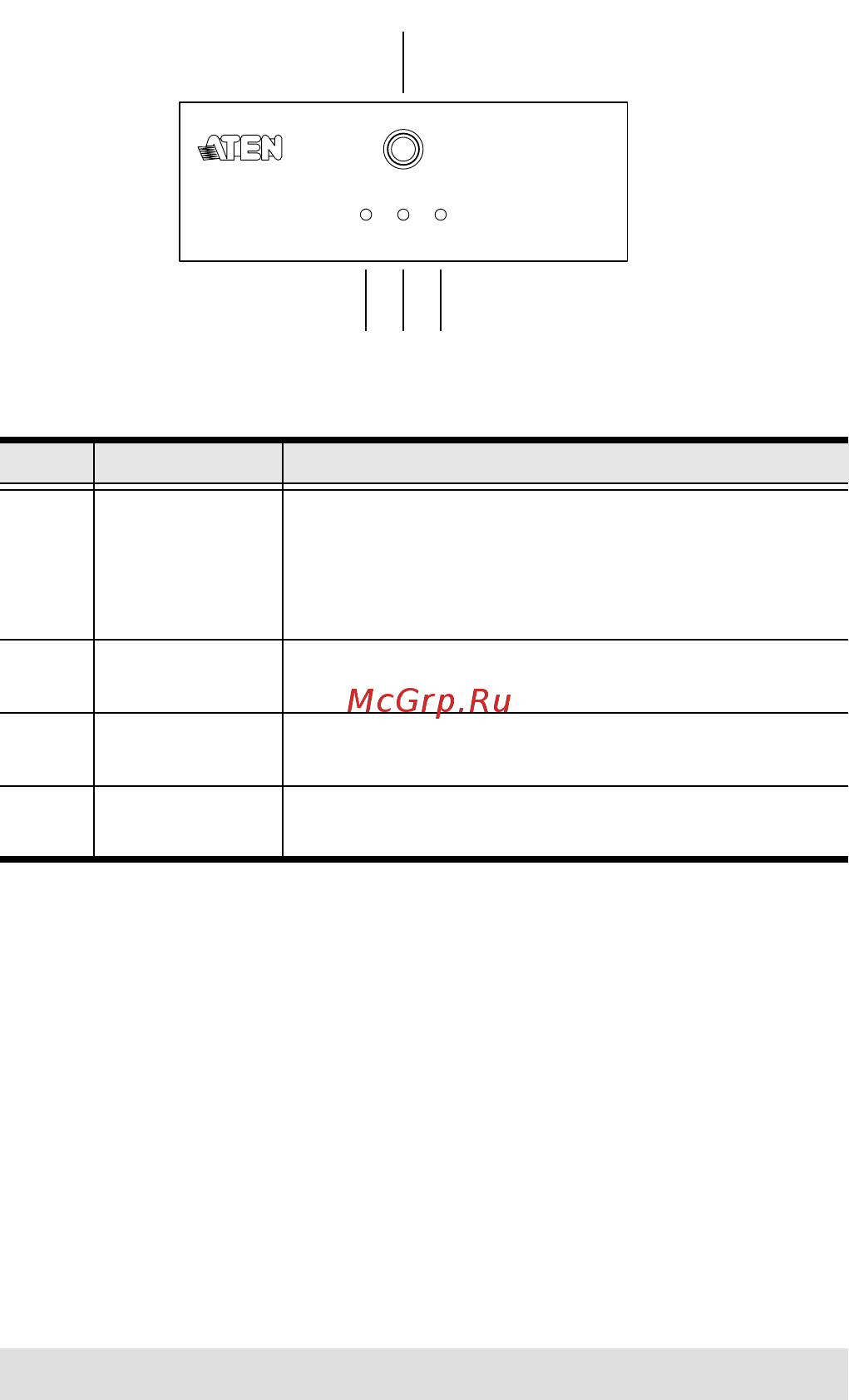

CS-231 Front View
* In Auto Mode, when neither console is accessing the computer, both Console
LEDs are illuminated.
No. Component Description
1MANUAL/AUTO
Selection
Button
This button is used to switch between Manual and
Auto Modes. The default is Auto Mode. Repeatedly
pressing the button cycles through the modes in the
following order: Auto Mode -> Console 1 (Manual) ->
Console 2 (Manual) -> Auto Mode.
2 C1 LED* Lights when Console 1 accesses the computer.
Turns off when Console 2 accesses the computer.
3 C2 LED* Lights when Console 2 accesses the computer.
Turns off when Console 1 accesses the computer.
4 MANUAL LED Lights to indicate that the CS-231 is set to Manual
Mode. In Auto Mode the LED does not illuminate.
1
234
