- 6 -

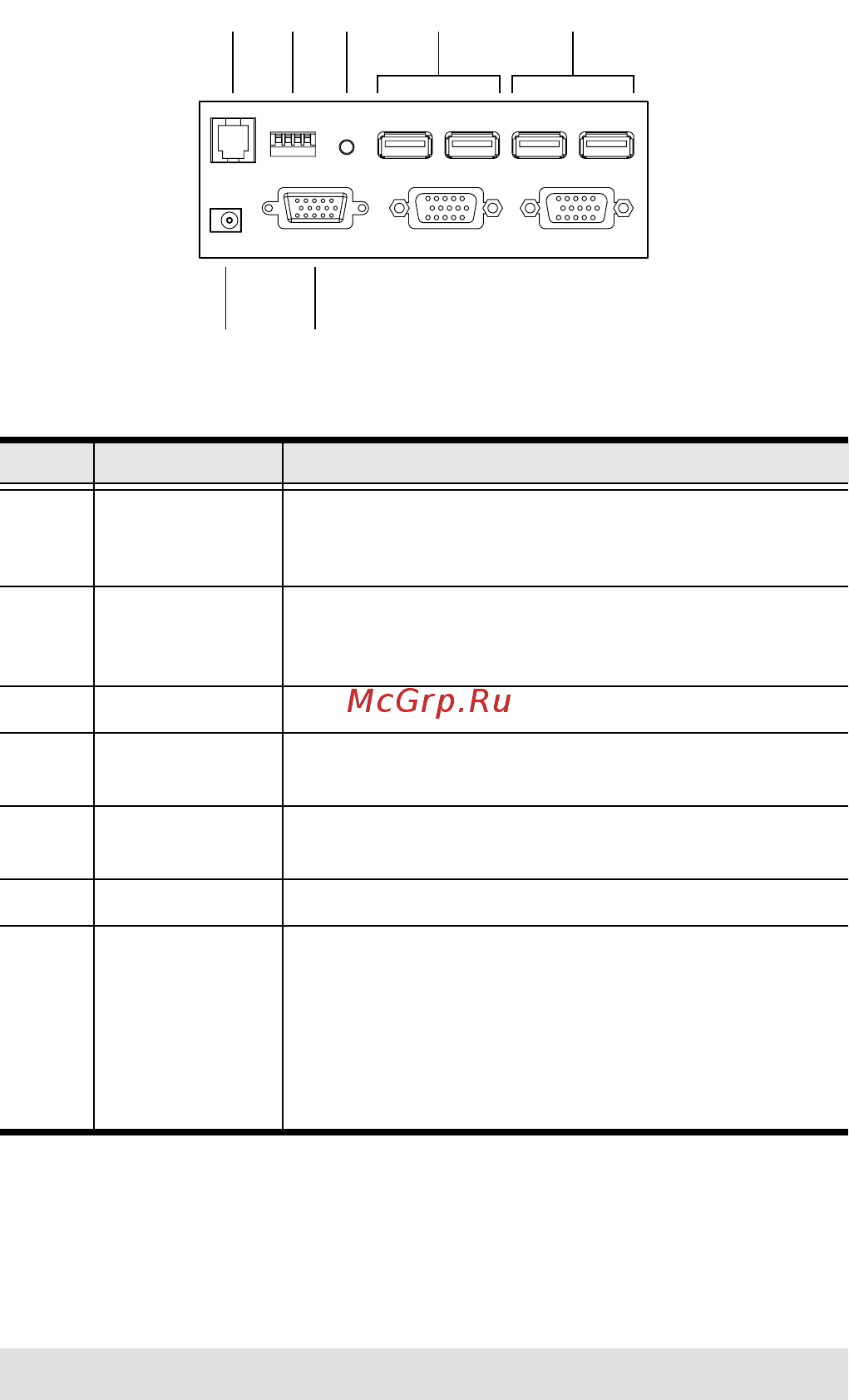

CS-231 Rear View

* The shape and pin assignment of this 15-pin SPHD connector has been

specifically modified so that only KVM cables designed to work with this switch

may be used. Do NOT attempt to use a cable with ordinary 15-pin VGA

connectors to link this port to the computer.

No. Component Description

1Firmware

Upgrade Port

The firmware upgrade cable connects here and to

the administrator's computer to upgrade the firmware

(see Firmware Upgrade, page 15).

2 DIP Switch This is a 4-pin DIP switch. Use it to set the Timeout,

Private Mode, and Screen Saver functions (see DIP

Switch Settings Table, page 11).

3 Reset Button Press this semi-recessed button to reset the system.

4 Console 2 Ports The cables from the VGA monitor and USB keyboard

and mouse of Console 2 plug in here.

5 Console 1 Ports The cables from the VGA monitor and USB keyboard

and mouse of Console 1 plug in here.

6 Power Jack The power adapter cable plugs in here.

7 PC Port* The 15-pin SPHD connector on the provided KVM

cable plugs in here. At the other end of the cable, the

HDB-15 and USB connector plug into the

corresponding ports on the computer. If the computer

does not have an available USB port, a KVM cable

with PS/2 keyboard and mouse connectors may be

purchased separately.

1 2 34
