Chapter 1. Introduction
5
Components

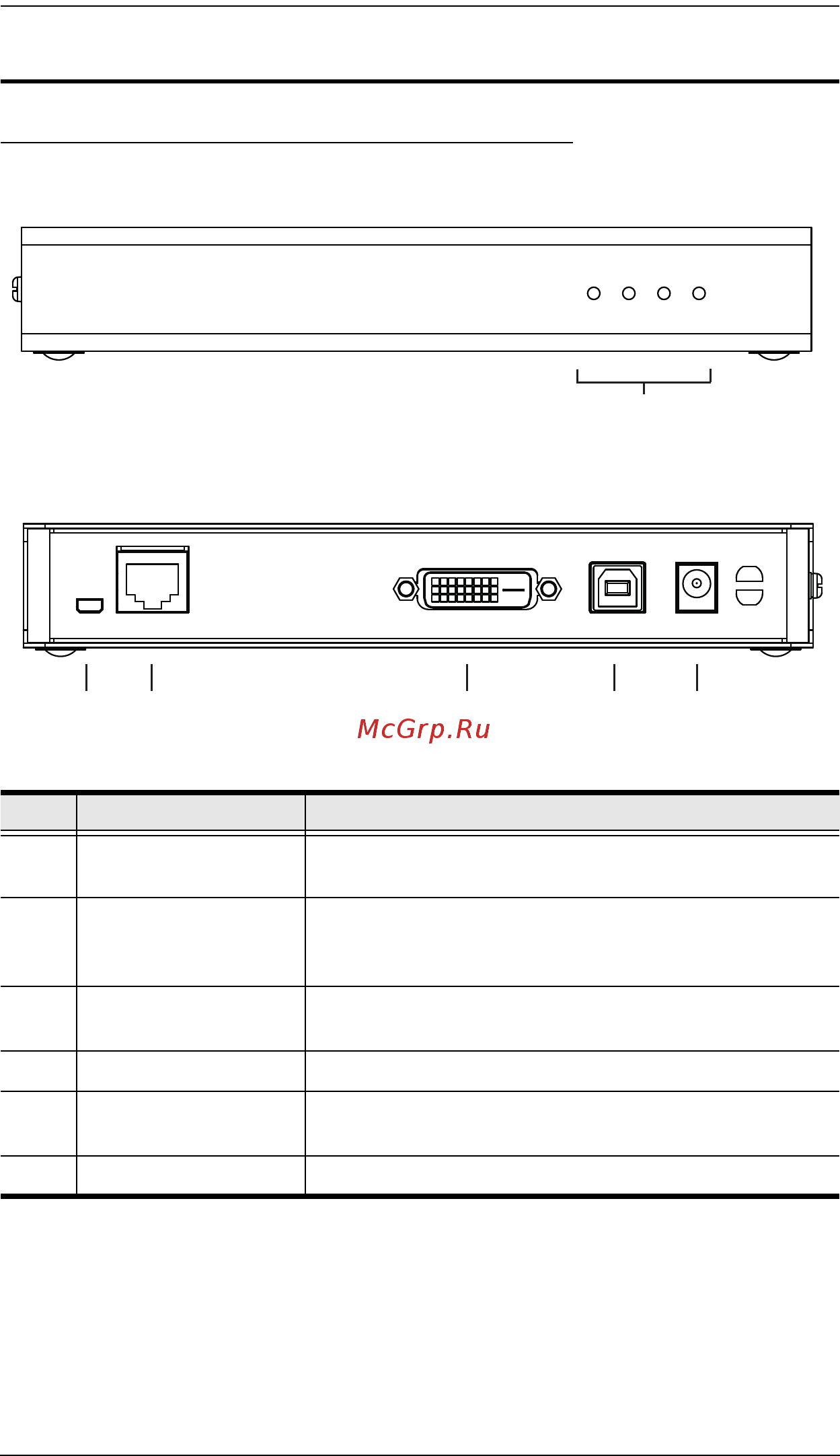

CE610L (Local Unit) Front and Rear View
No. Component Description
1 LEDs The CE610L has four LEDs to indicate operating
status – Power, Link, USB, and Video.
2 Firmware Upgrade
Port
The Firmware Upgrade Port is reserved for technical
support. If you would like to upgrade the unit’s
firmware yourself, please contact your ATEN dealer.
3 Unit to Unit Port The Cat 5e cable that connects the Local and Remote
Units plugs in here.
4 DVI-D In Port Connect a DVI cable from a computer to this port.
5 USB Type B Input The USB cable from your computer or USB hub plugs
in here.
6 Power Jack The cable from the Power adapter connects here.
Front View
Rear View
1
23 4 5 6
