VC182 User Manual
4
Components

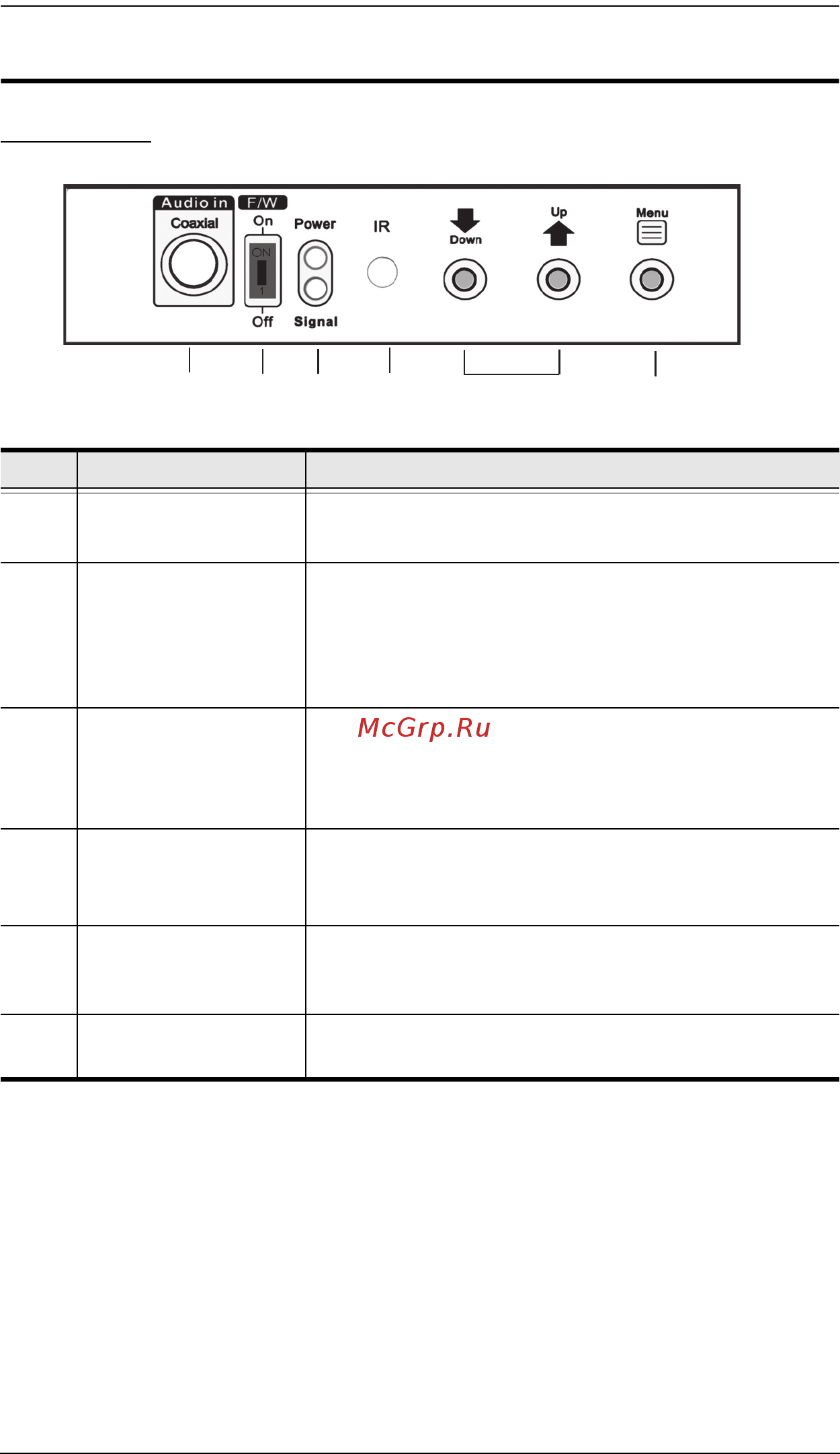

Front View
No. Component Description
1 Audio In Port Connect your audio source device or PC to this port
using a coaxial cable.
2 F/W Upgrade Set this to Off to operate the VC182 in Normal Mode.
Note: In case the firmware needs to be upgraded, turn
the switch On to have the VC182 enter Firmware
Upgrade mode. Contact your product dealer for more
details.
3 LED Status The Power LED lights red to indicate that the VC182 is
receiving power.
The Signal LED lights green to indicate that the input
source is active.
4 IR Receiver This sensor receives signals from the IR remote
control (optional).
Note: Contact your dealer for more information.
5Up / Down
pushbuttons
Pressing the Up / Down pushbuttons moves the
selection to the corresponding fields shown in the
built-in On-Screen Display (OSD).
6 Menu pushbutton Press this button to open the OSD menu and/or select
an option.
2
4
3
5
6
