 B/W extension: Turn the black and white extension On or Off. This is set

to Off by default.

 Color Tone: Select the color tone for the display. Options are Off

(default), Skin or Green.

 Edge Enhance: Select the degree of display image edge enhancements –

you can choose: Typ (typical), Mid (middle), Max (maximum) or Off.

This is set to Typ by default.

Adjustment

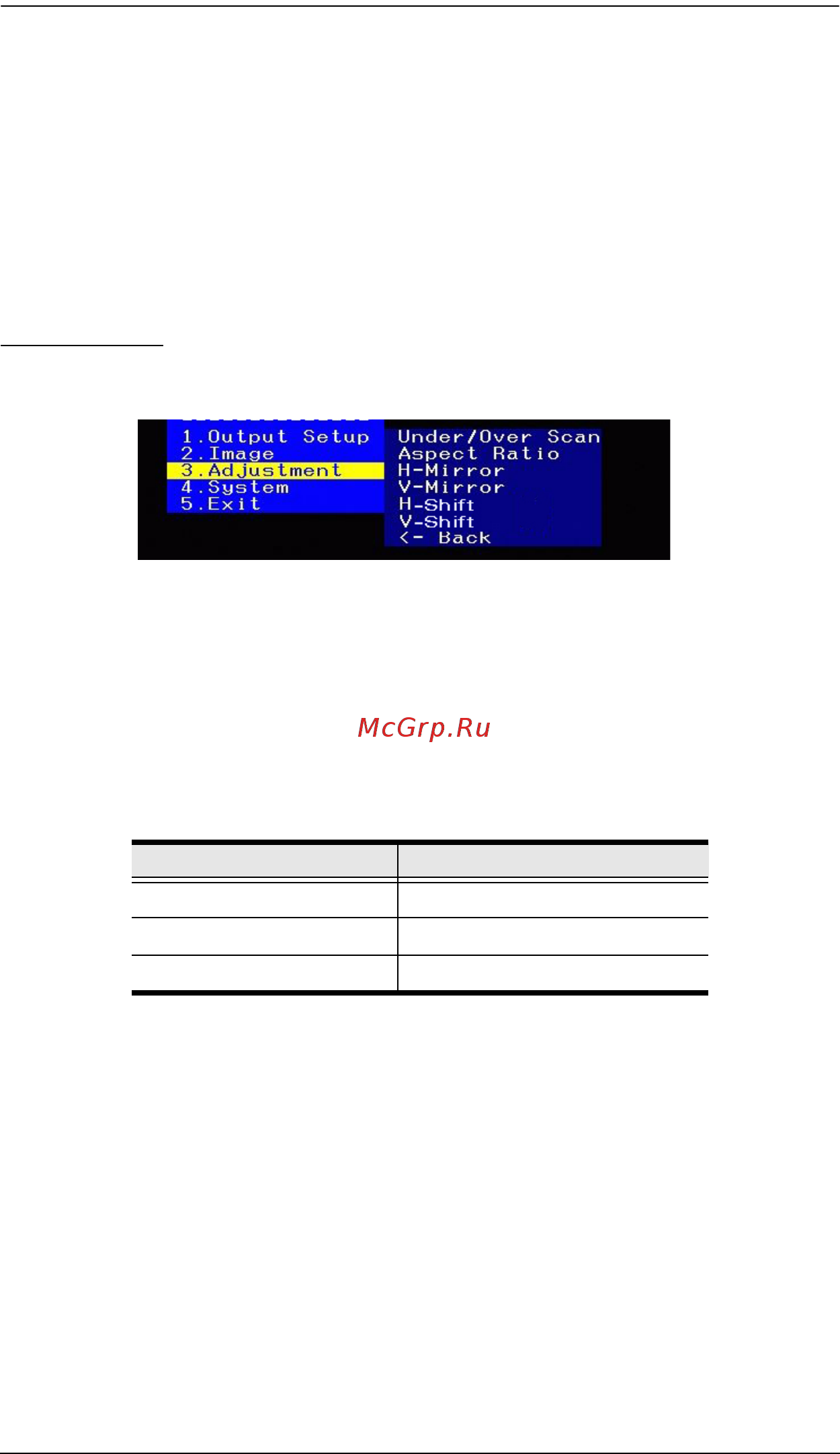

In the OSD Menu screen, navigate to 3. Adjustment and press the Menu

pushbutton to open the Adjustment submenu, as follows:

Adjust the picture position on the screen by setting the under/over scan

percentage, selecting the aspect ratio and configuring the horizontal and

vertical adjustment values.

 For the following options, use the Up and Down buttons to increase or

decrease the value. This either increases or decreases the empty space

around the picture (Under/Over Scan), or effectively moves the picture

area either to the left or right (for H-Shift and V-Shift)

of the screen.

 Aspect Ratio: Select the aspect ratio for the display. Options are 4:3

(default) or 16:9.

 For H-Mirror and V-Mirror, select whether the function is On or Off.

 Click the Apply button(s) to use the values entered.

Setting Value

Under/Over Scan -50% to +50% (default is 0 or off)

H-Shift -100 to 100 (default is 0)

V-Shift -50 to 50 (default is 0)
