Chapter 1. Introduction
5

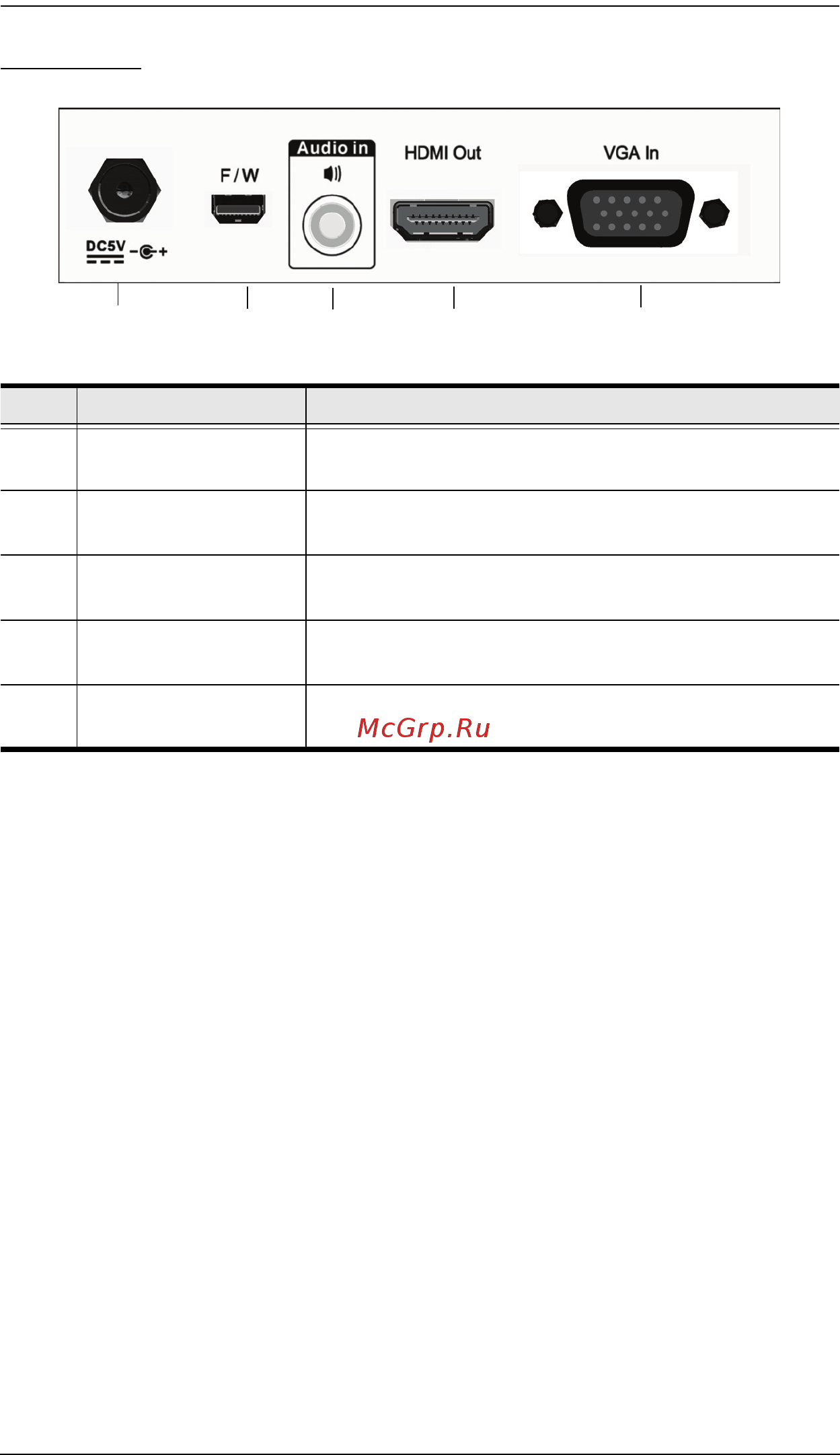

Rear View
No. Component Description
1 Power Jack Connect the provided power adapter to this power jack
to power on the VC182.
2 Firmware Upgrade
Port
For device configuration via the utility tool, connect this
port to a PC or laptop using a USB to mini USB cable.
3 Audio In Port Connect your analog stereo audio source device or
PC to this port.
4 HDMI Output Port Connect your HDMI display device to this port using
an HDMI Type A cable.
5 VGA Input Port Connect your VGA source device or PC to this port
using an HDB-15 cable.
11
33
44
555
22
