Chapter 1
6
A75F2-A2 USER MANUAL

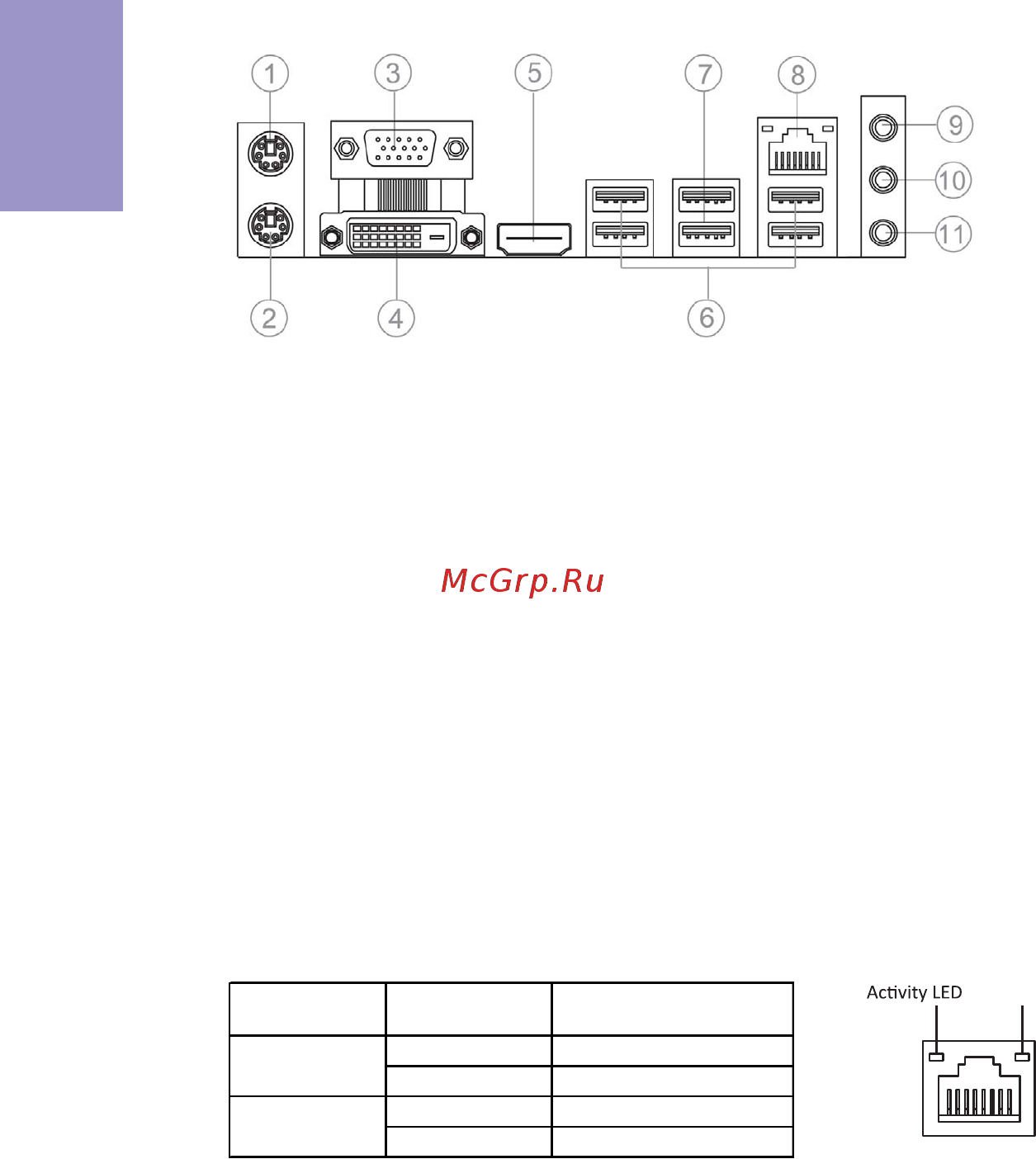

I/O Ports
1. PS/2 Mouse
Use the upper PS/2 port to connect a PS/2 mouse.
2. PS/2 Keyboard
Use the lower PS/2 port to connect a PS/2 keyboard.
3. VGA Port
You can connect the display device to the VGA port.
4.
DVI Port
You can connect the display device to the DVI port.
5.
HDMI Port
You can connect the display device to the HDMI port.
6. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
7. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
8. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
9. Line-in(blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
10. Line-out(lime)
It is used to connect to speakers or headphones.
11. Microphone(pink)
It is used to connect to a microphone.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
