Chapter 2

A75F2-A2 USER MANUAL

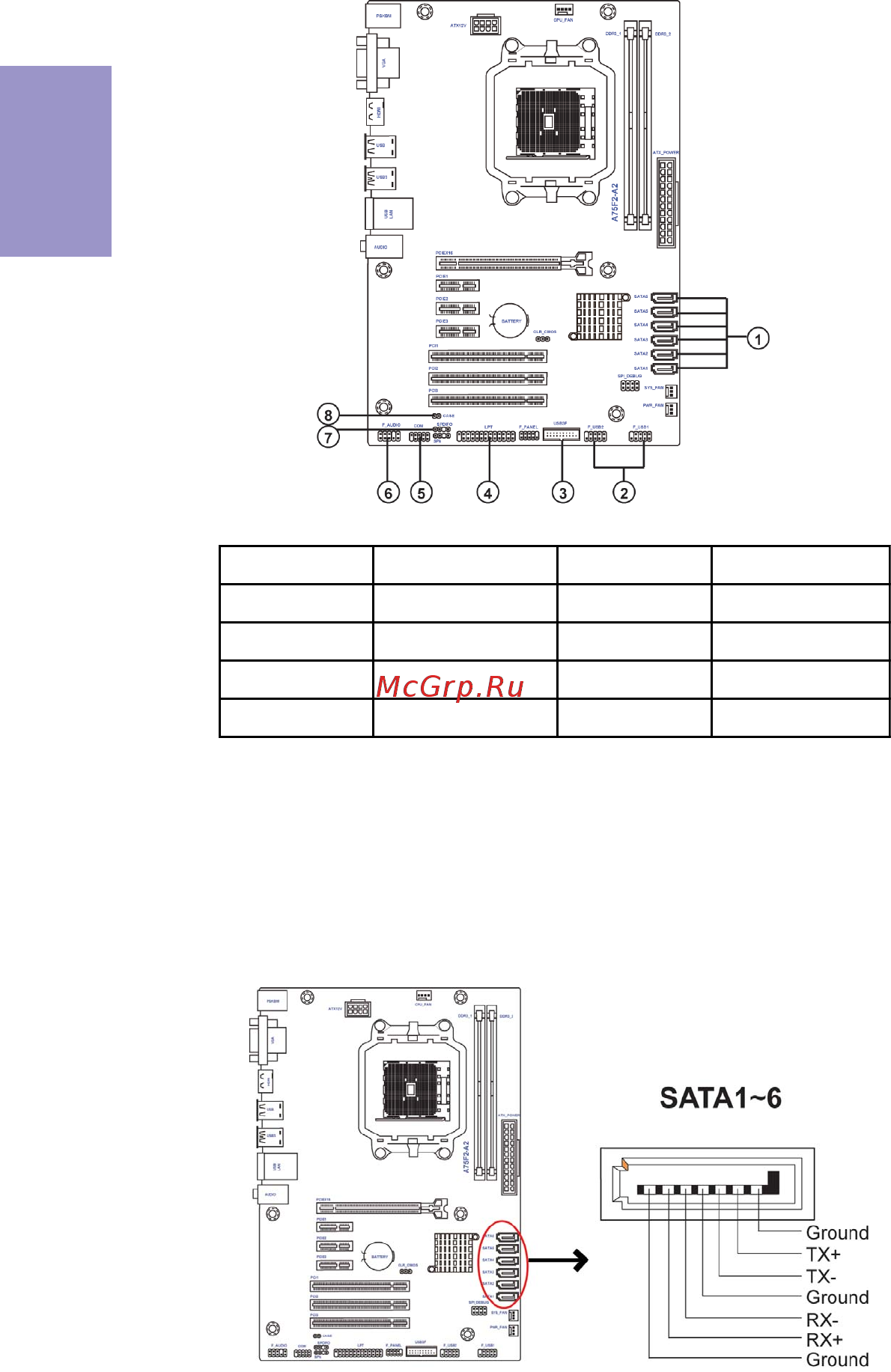

2-4-5. Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

No. Components No. Components

1SATA1~65 COM

2 F_USB1~2 6 F_AUDIO

3 USB3F 7 SPDIFO

4LPT 8CASE

SATA1~6 connectors are used to support the Serial ATA 6.0Gb/s device, simpler disk

drive cabling and easier PC assembly. It eliminates limitations of the current Paral-

lel ATA interface. But maintains register compatibility and software compatibility

with Parallel ATA.

1. SATA1~6: Serial ATA connectors
