ECS Elitegroup A75F2-A2 [12/68] A75f2 a2 user manual

Chapter 2

A75F2-A2 USER MANUAL

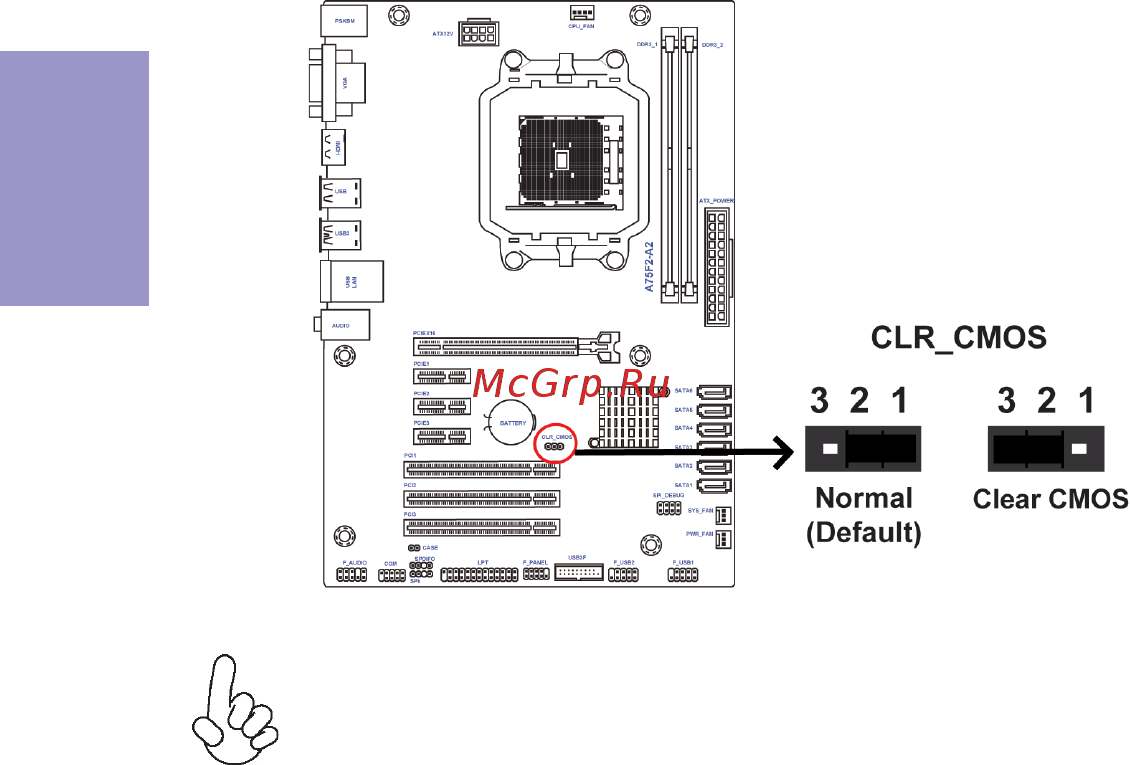

The following illustration shows the location of the motherboard jumpers. Pin 1 is

labeled.

To avoid the system instability after clearing CMOS, we recommend users to

enter the main BIOS setting page to “Load Default Settings” and then “Save

and Exit Setup”.

2-3. Checking Jumper Settings
