Chapter 2

A75F2-A2 USER MANUAL

If you use AC’ 97 Front Panel, please don’ t tick off “Using Front Jack Detect ”. If you

use HD Audio Front Panel, please

tick off the option of “ Using Front Jack Detect ”.

* For reference only

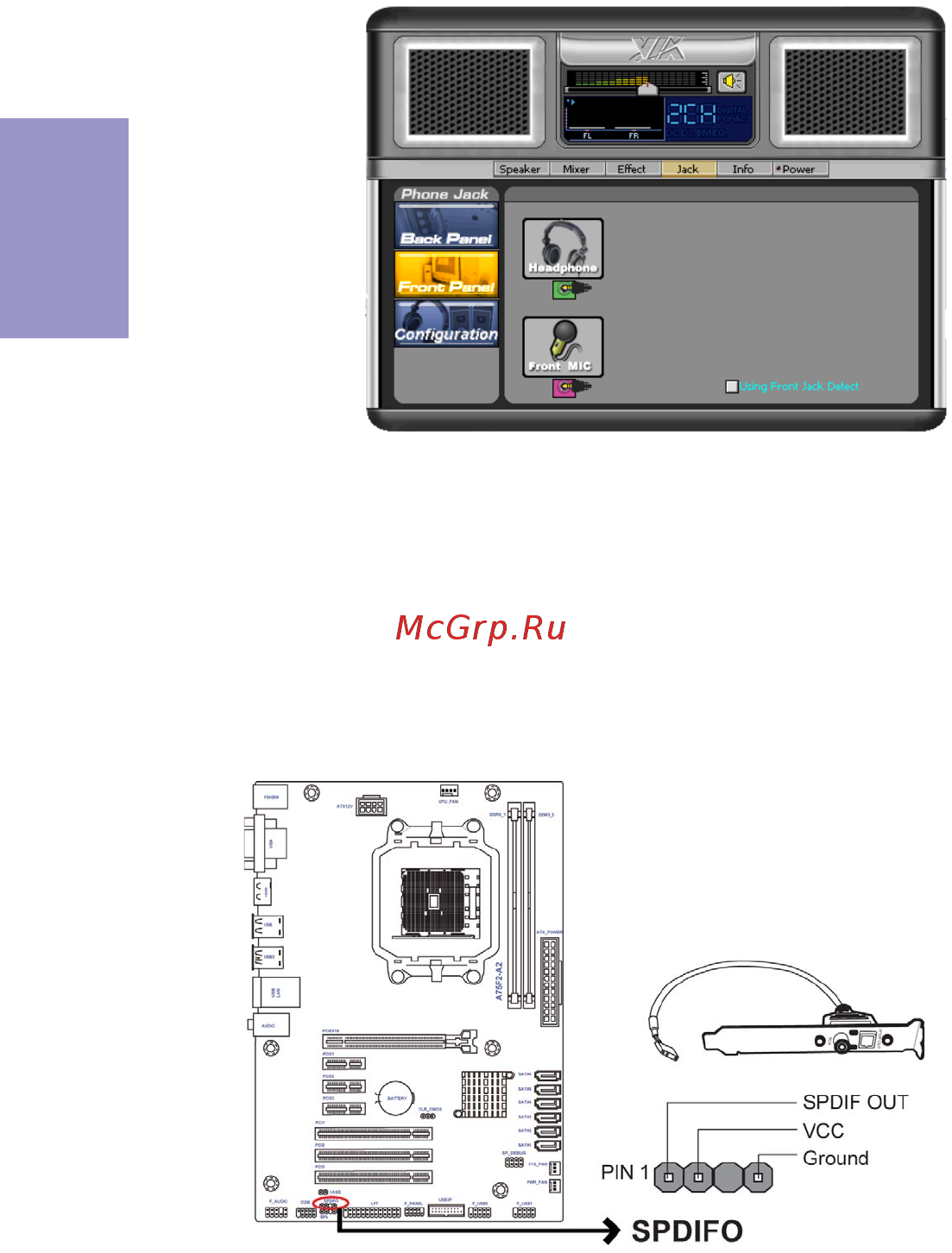

This is an optional header that provides an SPDIFO (Sony/Philips Digital Interface)

output to digital multimedia device through optical fiber or coaxial connector.

7. SPDIFO: SPDIF out header
