Chapter 1

Q77H2-TI USER MANUAL

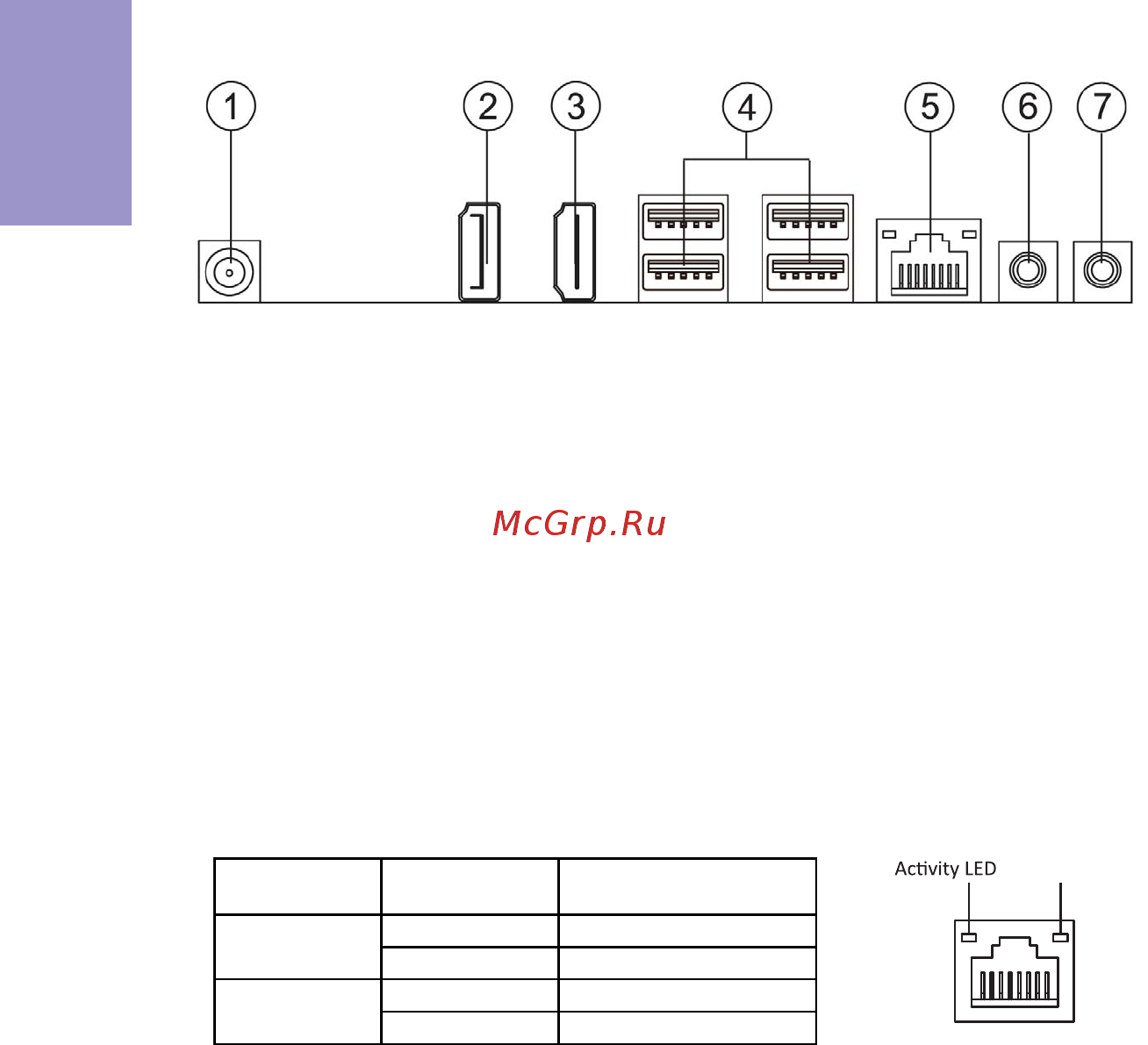

I/O Ports

1. 19V DC_IN Port

Connect the DC_IN port to the power adapter.

2. Display Port (DP)

You can connect the display device to the display port.

3. HDMI Port

You can connect the display device to the HDMI port.

4. USB 3.0 Ports

Use the USB 3.0 ports to connect USB 3.0 devices.

5. LAN Port

Connect an RJ-45 jack to the LAN port to connect your computer to the Network.

6. Line-out (lime)

It is used to connect to speakers or headphones.

7. Microphone (pink)

It is used to connect to a microphone.

LAN LED Status Description

OFF No data

Orange blinking Active

OFF No link

Green Link

Activity LED

Link LED

LAN Port
