Руководство пользователя Страница: 22

ECS Elitegroup Q77H2-TI [22/72] Q77h2 ti user manual

Chapter 2

Q77H2-TI USER MANUAL

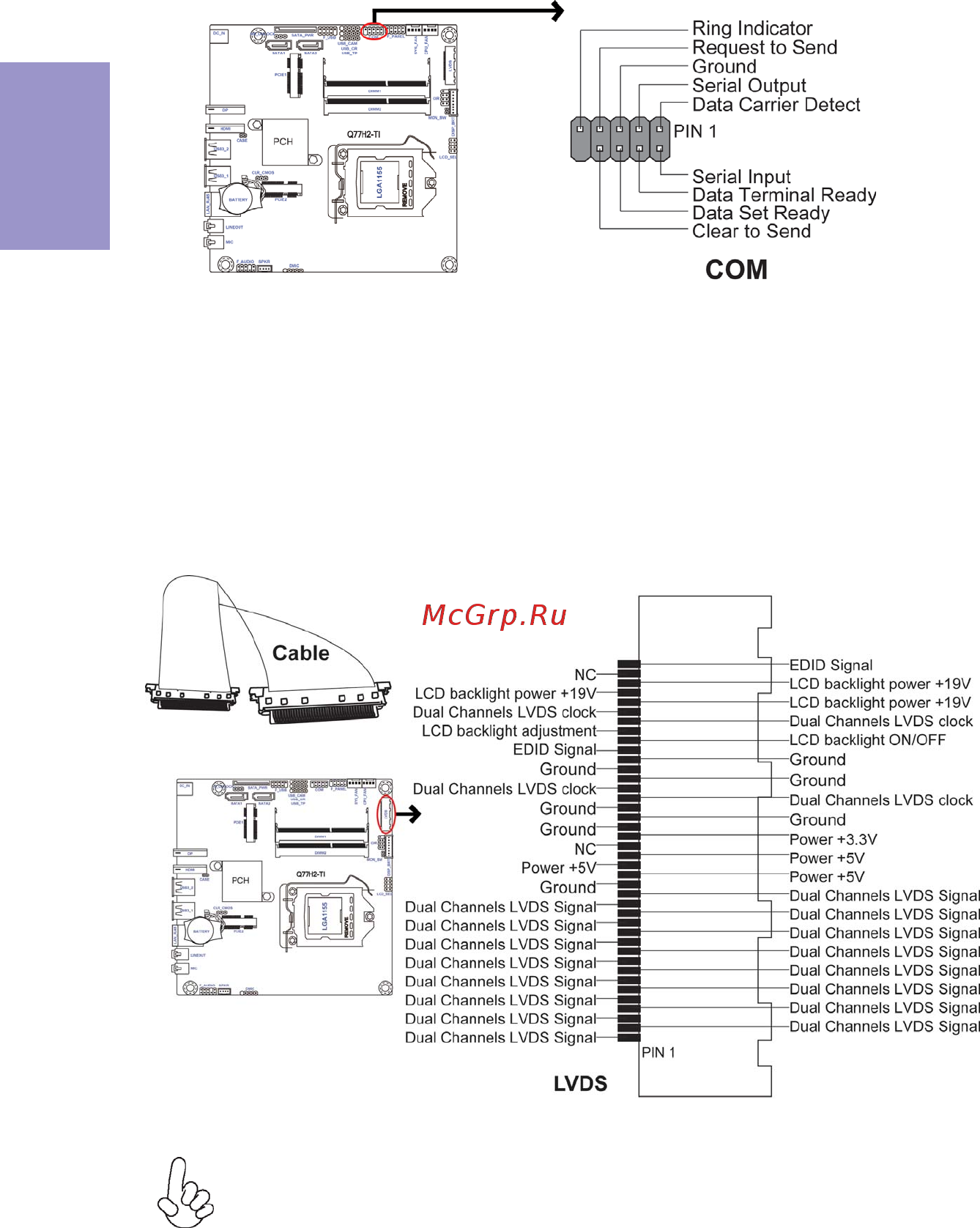

6. LVDS: LVDS connector (optional)

1. You can connect the large end of the cable to the LED Panel, and connect

the other small end to the slot on the motherboard.

2.Due to the chipset limitation, using dual displays LVDS(AIO) + VGA or

LVDS(AIO) + HDMI will cause the problem that you may not enter BIOS setup

or have the display problem.

Connect a serial port extension bracket to this header to add a serial port to your

system.

4. COM: Onboard serial port header
