Chapter 2

Q77H2-TI USER MANUAL

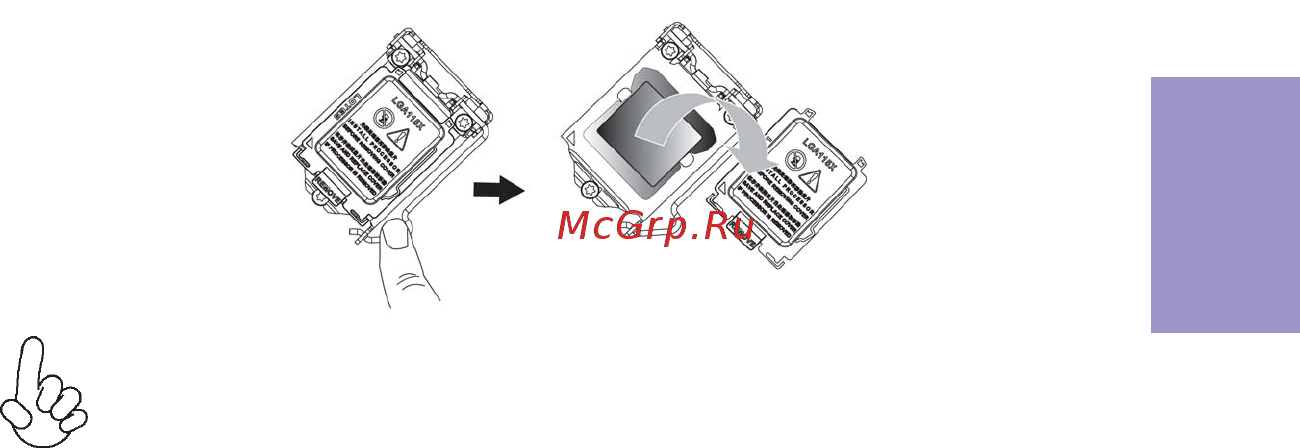

D. Rotate the load plate onto the package IHS (Intergraded Heat

Spreader). Engage the load lever while pressing down lightly onto the

load plate. Secure the load lever with the hook under retention tab. Then

the cover will flick automatically.

Please save and replace the cover onto the CPU socket if processor is re-

moved.
