Содержание
- Copyright 1
- Disclaimer 1
- Federal communications commission fcc 1
- Preface 1
- Trademark recognition 1
- About the manual 2
- Canadian department of communications 2
- Declaration of conformity 2
- Preface 2
- Chapter 1 1 3
- Chapter 2 9 3
- Chapter 3 29 3
- Connecting i o devices 23 connecting case components 4 3
- Installing hardware 2 3
- Installing the motherboard 9 safety precautions choosing a computer case installing the motherboard in a case checking jumper settings 0 3
- Introducing the motherboard 1 introduction feature specifications motherboard components 3
- Preface i 3
- Tttttable of contents able of contents able of contents able of contents able of contents 3
- Using bios 0 3
- Using bios 29 about the setup utility 29 3
- Chapter 4 63 4
- Chapter 5 67 4
- Chapter 1 introducing the motherboard 5
- Introducing the motherboard 5
- Introduction 5
- Chipset 6
- Extra chips optional 6
- Feature 6
- Introducing the motherboard 6
- Memory 6
- Processor 6
- Bios firmware 7
- Expansion options 7
- Integrated i o 7
- Introducing the motherboard 7
- Onboard lan 7
- Introducing the motherboard 8
- Specifications 8
- Introducing the motherboard 9
- Introducing the motherboard 11

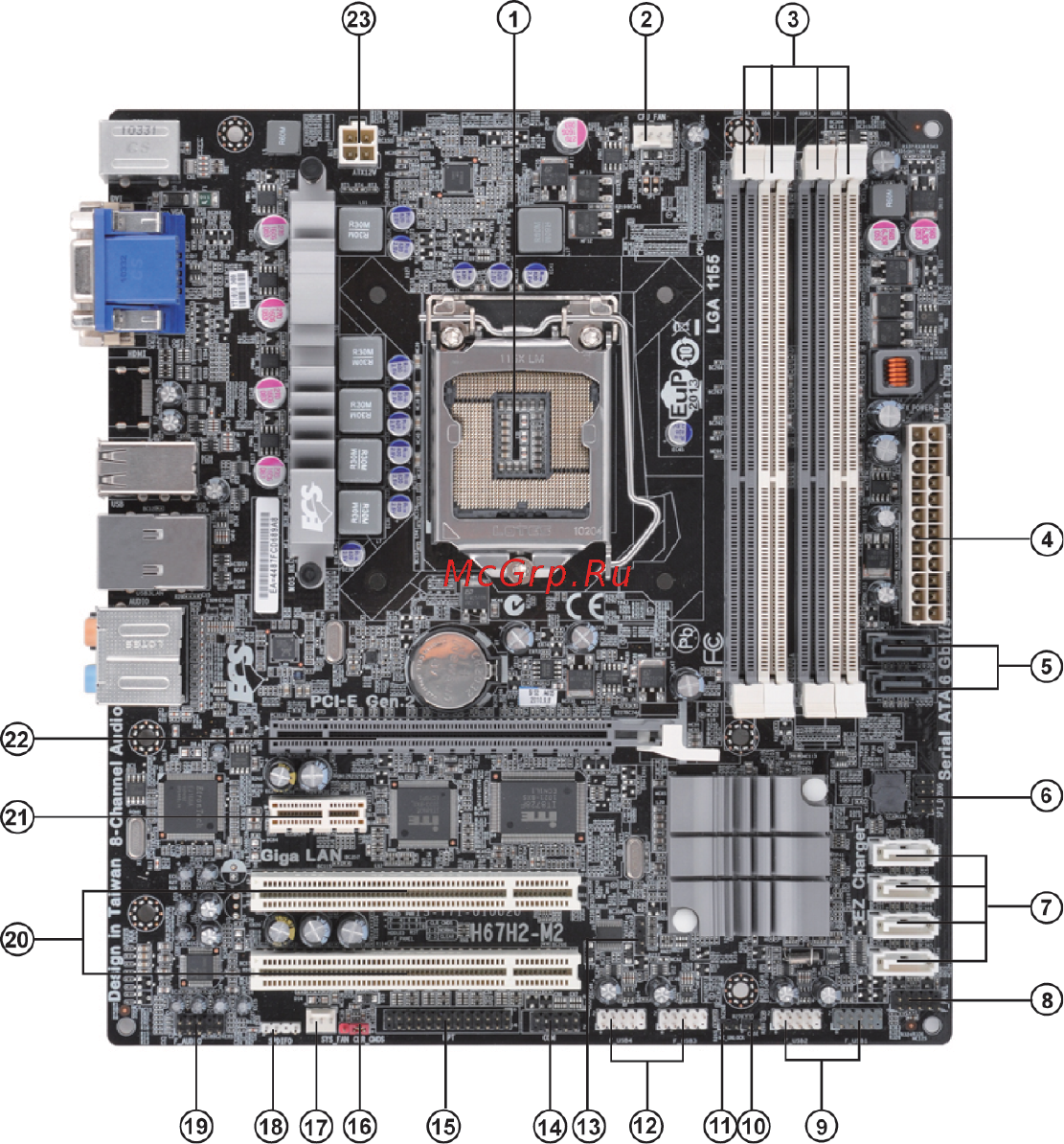

- Table of motherboard components 11
- Chapter 2 installing the motherboard 13
- Choosing a computer case 13
- Installing the motherboard 13
- Installing the motherboard in a case 13
- Safety precautions 13
- Checking jumper settings 14
- Installing the motherboard 14
- Setting jumpers 14
- Checking jumper settings 15
- Installing the motherboard 15
- Jumper settings 15
- Before installing the processor 16
- Fail safe procedures for over clocking 16
- Installing hardware 16
- Installing the motherboard 16
- Installing the processor 16
- Cpu installation procedure 17
- Installing the motherboard 17
- Ddr3 sdram memory module table 18
- Ddr3_1 ddr3_2 ddr3_3 ddr3_4 18
- Dimm populated 18
- Dimms populated populated 18
- Dimms populated populated populated 18
- Dimms populated populated populated populated 18
- Installing memory modules 18
- Installing the motherboard 18
- Mode sockets 18
- Recommend memory configuration 18
- Installation procedure 19
- Installing the motherboard 19
- Expansion slots 20
- Installing add on cards 20
- Installing the motherboard 20
- Installing the motherboard 21
- Connecting optional devices 22
- F_audio front panel audio header 22
- Installing the motherboard 22
- Sata1 2 serial ataiii connectors 22
- F_usb1 4 front panel usb 2 headers 23
- Installing the motherboard 23
- Sata3 6 serial ataii connectors 23
- Case chassis intrusion detect header 24
- Com onboard serial port header 24
- Connect a serial port extension bracket to this header to add a serial port to your system 24
- Installing the motherboard 24
- Lpt onboard parallel port header 24
- This detects if the chassis cover has been removed this function needs a chassis equipped with instrusion detection switch and needs to be enabled in bios 24
- This is a header that can be used to connect to the printer scanner or other devices 24
- Installing the motherboard 25
- Me_unlock me unlock header 25
- Spdifo spdif out header 25
- Spdifout 2 5v 3 key 4 gnd 25
- Spi_debug spi debug header 25
- This 16 mb debug contains the programmable bios program 25
- This is an optional header that provides an spdifo sony philips digital interface output to digital multimedia device through optical fiber or coaxial connector 25
- About sata connectors 26
- Installing sata hard drives 26
- Installing serial ata hard drives 26
- Installing the motherboard 26
- Connecting i o devices 27
- Installing the motherboard 27
- Connecting 24 pin power cable 28
- Connecting case components 28
- Installing the motherboard 28
- Atx_ power atx 24 pin power connector 29
- Connecting 4 power cable 29
- Cpu_fan cpu cooling fan power connector 29
- Installing the motherboard 29
- Sys_fan system cooling fan power connector 29
- Atx12v atx 12v power connector 30
- Installing the motherboard 30
- Spk external speaker header 30
- Connecting pins 1 and 3 to a front panel mounted led provides visual indication that data is being read from or written to the hard drive for the led to function properly an ide drive should be connected to the onboard ide interface the led will also show activity for devices connected to the scsi hard drive activity led connector 31
- Connecting pins 2 and 4 to a single or dual color front panel mounted led provides power on off sleep and message waiting indication 31
- Front panel header 31
- Hard drive activity led 31
- Installing the motherboard 31
- Power sleep message waiting led 31
- Power switch 31
- Reset switch 31
- Supporting the power on off function requires connecting pins 6 and 8 to a momen tary contact switch that is normally open the switch should maintain contact for at least 50 ms to signal the power supply to switch on or off the time requirement is due to internal de bounce circuitry after receiving a power on off signal at least two seconds elapses before the power supply recognizes another on off signal 31
- Supporting the reset function requires connecting pin 5 and 7 to a momentary contact switch that is normally open when the switch is closed the board resets and runs post 31
- The panel header panel provides a standard set of switch and led headers commonly found on atx or micro atx cases refer to the table below for informa tion 31
- This concludes chapter 2 the next chapter covers the bios 31
- Users please note that the above picture is for reference only you should determine the header pin definition by the actual key pin location 31
- About the setup utility 33
- Chapter 3 using bios 33
- Entering the setup utility 33
- The standard configuration 33
- Using bios 33
- Resetting the default cmos values 34
- Using bios 34
- Bios navigation keys 35
- Using bios 35
- Main menu 36
- System date time the date and time items show the current date and time on the computer if you are running a windows os these items are automatically updated whenever you make changes to the windows date and time properties utility 36
- System language english this item is used to set system language 36
- To display the submenu 36
- Using bios 36
- Advanced menu 37
- Lan configuration 37
- Using bios 37
- Cpu smart fan control enabled this item allows you to enable disable the control of the cpu fan speed by changing the fan voltage 38
- On motherboards support hardware monitoring this item lets you monitor the parameters for critical voltages temperatures and fan speeds 38
- Pc health status 38
- To view the following screen smart fan function 38
- Using bios 38
- Using bios 39
- Power management setup 40
- Using bios 40
- Acpi configuration 41
- Acpi sleep state s3 suspend to ram this item allows user to enter the acpi s3 suspend toram sleep state default 41
- The item in the menu shows the highest acpi sleep state when the system enters suspend 41
- To return to the advanced menu page 41
- Using bios 41
- Cpu configuration 42
- Em64t supported this item shows the computer supports em64t 42
- Intel ht technology not supported this item shows your computer does not support intel ht technology 42
- Intel vt x technology supported this item shows your computer support intel vt x technology 42
- Inter r pentium r cpu g860 3 0 ghz this is display only field and diaplays the information of the cpu installed in your computer 42
- Microcode revision 25 this item shows the microcode revision 42
- Processor cores 2 this item shows the information of the processor cores 42
- Processor speed 3000mhz this item shows the processor speed 42
- Processor stepping 206a7 this item shows the information of processor stepping 42
- The item in the menu shows the cpu 42
- Using bios 42
- Using bios 43
- Sata configuration 44
- Sata mode ide mode use this item to select sata mode 44
- Sata port1 6 this motherboard supports six sata channel and each channel allows one sata device to be installed use these items to configure each device on the sata channel 44
- To return to the advanced menu page 44
- Use this item to show the mode of serial sata configuration options 44
- Using bios 44
- All usb devices enabled use this item to enable or disable all usb devices 45
- Legacy usb support enabled use this item to enable or disable support for legacy usb devices 45
- Onchip usb 3 controller enabled use this item to enable or disable usb 3 controller we recommend users keep the default value disabling it might cause the usb devices not to work properly 45
- To return to the advanced menu page 45
- Usb configuration 45
- Use this item to show the information of usb configuration 45
- Using bios 45
- And view the following screen 46
- Change settings auto 46
- Device settings io 3f8h irq 4 46
- Serial port enabled 46
- Super io configuration 46
- This item allows you to enable or disable serial port 46
- This item shows the information of the device settings 46
- To return to the super io configuration page 46
- Use this item to change device settings 46
- Use this item to show the information of super io configuration 46
- Using bios 46
- And view the following screen 47
- Change settings auto 47
- Device mode standard parallel 47
- Device settings io 378h irq 5 47
- Parallel port enabled 47
- This item allows you to enable or disable serial port 47
- This item allows you to select the device mode for a better operation environment 47
- This item shows the information of the device settings 47
- To return to the super io configuration page 47
- Use this item to change device settings 47
- Using bios 47
- Intel r smart connect technology 48
- Isct configuration enabled use this item to enable disable isct configuration 48
- Isct notification control enabled use this item to enable disable isct notification control 48
- Isct sleep duration value format actual time use this item to select actual time or duration in seconds isct 2 48
- Isct wlan power control enabled use this item to enable disable isct wlan power control 48
- Isct wwan power control enabled use this item to enable disable isct wwan power control 48
- Use this item to show the information of intel r smart connect technology 48
- Using bios 48
- And view the following screen 49
- Chipset menu 49
- Dvmt memory 256m 49
- Igd memory 64m 49
- Igd multi monitor disabled 49
- Initate graphic adapter auto 49
- The chipset menu items allow you to change the settings for the north chipset south chipset and other system 49
- This item allows you to select graphics controller to use as the primary boot device 49
- This item enables or disables igd internal graphics device multi monitor 49
- This item shows the information of the igd internal graphics device memory 49
- Using bios 49
- When set to fixed mode the graphics driver will reserve a fixed position of the system memory as graphics memory according to system and graphics requirements 49
- Multi monitor technology 50
- Using bios 50
- Step 2 install all the drivers of pci express graphic cards click the browse cd item then appears the following screen select the driver you want to install e g nvidia geforce 8400 gs microsoft corporation wddm v1 and double click it 51
- Step 3 enable igd multi monitor from bios in the following bios screen please set igd multi monitor to enabled 51
- Using bios 51
- Display devices 52
- Enter the control panel menu select the display in the all control panel items and click the screen resolution then appears the following screen 52
- Select display devices set the multiple displays option and to extend destop for display multi monitor technology 52
- Set the multiple displays 52
- Show the path of the setting location 52
- Step 4 change the appearance of your displays under windows 7 8 52
- The type of the display 52
- Using bios 52
- Using bios 53
- Audio configuration 54
- Azalia hd audio enabled 54
- Azalia internal hdmi codec enabled 54
- Case open warning disabled 54
- Chassis opened no 54
- Restore ac power loss power off 54
- This item enables or disables azalia hd audio 54
- This item enables or disables azalia internal hdmi codec 54
- This item enables or disables the warning if the case is opened up and the item below indicates the current status of the case 54
- This item indicates whether the case has been opened 54
- This item shows the information of the audio configuration 54
- This item specifies what state to go to when power is re applied after a power failure g3 state 54
- To return to the chipset menu page 54
- To view the following screen 54
- Using bios 54
- Me version 8 248 this item shows the me version 55
- To return to the chipset menu page 55
- To view the following screen 55
- Using bios 55
- Cpu frequency 1 100mhz 56
- Cpu overclocking configuration scroll to this item to view the following screen 56
- Cpu ratio 30 56
- M i b iii mb intelligent bios iii menu 56
- This item allows users to control non turbo cpu ratio 56
- This item shows the information of the cpu frequency 56
- This page enables you to set the clock speed and system bus for your system the clock speed and system bus are determined by the kind of processor you have installed in your system 56
- Using bios 56
- Active to active delay trrdmin 4 57
- Cas latency tcl 9 57
- Chipset overclocking configuration scroll to this item to view the following screen 57
- Enhanced intel speedstep technology enabled 57
- Ras active time tras 24 57
- Ras to cas delay trcd 9 57
- Row precharge time trp 9 57
- Row refresh cycle time trfc 74 57
- This item allows users to enable or disable the eist enhanced intel speedstep technology 57
- This item controls the active bank x to active bank y in memory clock cycles 57
- This item determines the operation of ddr sdram memory cas colulmn address strobe it is recommended that you leave this item at the default value the 2t setting requires faster memory that specifically supports this mode 57
- This item specifies row precharge to active or auto refresh of the same bank 57
- This item specifies the ras active time 57
- This item specifies the ras to cas delay to rd wr command to the same bank 57
- This item specifies the row refresh cycle time 57
- This item specifies the write recovery time 57
- This item specifies the write to read delay time 57
- Using bios 57
- Write recovery time twr 10 57
- Write to read delay twtr 5 57
- Using bios 58
- Boot configuration this item shows the information of the boot configuration 59
- Boot menu 59
- Boot mode select legacy use this item to select boot mode 59
- Boot option 1 2 3 4 5 6 7 these items show the boot priorities 59
- Bootup numlock state on this item enables you to select numlock state 59
- Launch pxe oprom disabled the item enables or disables launch pxe option rom launch storage oprom enabled the item enables or disables launch storage option rom 59
- Operation system select windows7 or other os this item is used to select the operation system 59
- Quiet boot enabled this item enables or disables quiet boot 59
- Set boot priority this item enables you to set boot priority for all boot devices 59
- This page enables you to set the keyboard numlock state 59
- Using bios 59
- Boot option filter 60
- Csm parameters oprom execution boot options filter etc 60
- Launch csm 60
- Launch pxe oprom policy this controls the execution of uefi and legacy pxe oprom 60
- Launch storage oprom policy this controls the execution of uefi and legacy storage oprom 60
- Launch video oprom policy this controls the execution of uefi and legacy video oprom 60
- Other pci device rom priority for pci devices other than network mass storage or video defines which oprom to launch 60
- This option controls if csm will be launched 60
- This option controls what devices system can boot to 60
- To return to the boot menu page 60
- To see the submenu 60
- To view the following screen 60
- Using bios 60
- Administrator password status not install this item shows administrator password installed or not 61
- Secure boot enabled this item is used to control the secure boot flow it is possible only if system runs in user mode secure boot mode custom this item is used to select secure boot mode when you select standard mode secure boot policy is fixed when you select custom mode the image execution policy and secure boot key databases are changeable 61
- Secure boot state disabled this item allows you to enable or disable the secure boot state 61
- Security menu 61
- System mode state setup this item shows system mode setup or not 61
- This page enables you to set setup administrator password and user password 61
- User password status not install this item shows user password installed or not 61
- Using bios 61
- Image execution policy scroll to this item to view the following screen 62
- Internal fv option rom removable media fixed media always execute deny execute these items allow you to select image execution policy per device path on security violation only users logged with administrative password can exercise query user policy setting 62
- To return to the security menu page 62
- Using bios 62
- Append an entry to kek db dbx this item launches the file browser to append new signature database from the file the file data must be formatted as efi variable with timebased authenticated header 63
- Authorized signature database db this item shows the information of the authorized signature database 63
- Default key provisioning disabled this item enables or disables you to force oem default secure boot keys if system is in setup mode 63
- Delete the pk kek db dbx this item is used to delete the variable key exchange key database kek this item shows the information of the key exchange key database 63
- Forbidden signature database dbx this item shows the information of the forbidden signature database 63
- Get pk kek db dbx to file this item is used to store secure variable to a file with a matching name in selected file system s root 63
- Key management scroll to this item to view the following screen 63
- Platform key pk this item shows the information of the platform key set pk kek db dbx from file this item launches the file browser to set efi variable from the file the file data must be formatted as efi variable with timebased authenticated header 63
- Using bios 63
- Discard changes and exit use this item enables you to exit system setup without saving any changes 64
- Discard changes and reset use this item enables you to reset system setup without saving any changes 64
- Discard changes use this item enables you to discard any changes that you have made 64
- Exit menu 64
- Restore defaults use this item enables you to restore the system defaults 64
- Restore user defaults use this item enables you to restore user defaults to all the setup options 64
- Save as user defaults use this item enables you to save the changes that you have made as user defaults 64
- Save changes and exit use this item enables you to exit system setup after saving the changes 64
- Save changes and reset use this item enables you to reset the system setup after saving the changes 64
- Save changes use this item enables you to save the changes that you have made 64
- Save options use this item enables you to save the options that you have made 64
- This page enables you to exit system setup after saving or without saving the changes 64
- Using bios 64
- Updating the bios 65
- Using bios 65
- Auto installing under windows xp 7 8 67
- Chapter 4 using the motherboard software 67
- Running setup 67
- Using the motherboard software 67
- Drivers and software are automatically installed in sequence follow the onscreen instructions confirm commands and allow the computer to restart a few times to complete the installation 68
- Using the motherboard software 68
- Windows 8 will show the following screen after system restart you must select desktop in the bottom left to install the next driver 68
- Ecs utility software intelligent ez utility 69
- Manual installation 69
- Using the motherboard software 69
- Using the motherboard software 70
- A system does not power up and the fans are not running 71
- B power is on fans are running but there is no display 71
- C the pc suddenly shuts down while booting up 71
- Chapter 5 trouble shooting 71
- Start up problems during assembly 71
- Trouble shooting 71
- Maintenance and care tips 72
- Start up problems after prolong use 72
- Trouble shooting 72
- Basic troubleshooting flowchart 73
- Yes yes 73
Похожие устройства
- ECS Elitegroup H67H2-M3 Руководство пользователя
- ECS Elitegroup H67H2-M4 Руководство пользователя
- ECS Elitegroup Z77H2-A3 Руководство пользователя
- ECS Elitegroup Z77H2-A3D Руководство пользователя
- ECS Elitegroup Z77H2-A4 Руководство пользователя
- ECS Elitegroup Z77H2-AX Руководство пользователя
- ECS Elitegroup X58B-A Руководство пользователя
- ECS Elitegroup X58B-A2 Руководство пользователя
- ECS Elitegroup A750GM-M (V1.0) Руководство пользователя
- ECS Elitegroup A750GM-M (V7.0) Руководство пользователя
- ECS Elitegroup A780LM-M (V1.0) Руководство пользователя
- ECS Elitegroup A780LM-M2 Руководство пользователя
- ECS Elitegroup A785GM-AD3 Руководство пользователя
- ECS Elitegroup A785GM-M Руководство пользователя
- ECS Elitegroup A785GM-M7 Руководство пользователя
- ECS Elitegroup A790GXM-AD3 Руководство пользователя
- ECS Elitegroup A875M-A Руководство пользователя
- ECS Elitegroup A880GM-A3 Руководство пользователя
- ECS Elitegroup A880GM-AD3 Руководство пользователя
- ECS Elitegroup A880GM-M6 Руководство пользователя
