Installing the Motherboard

Connecting I/O Devices

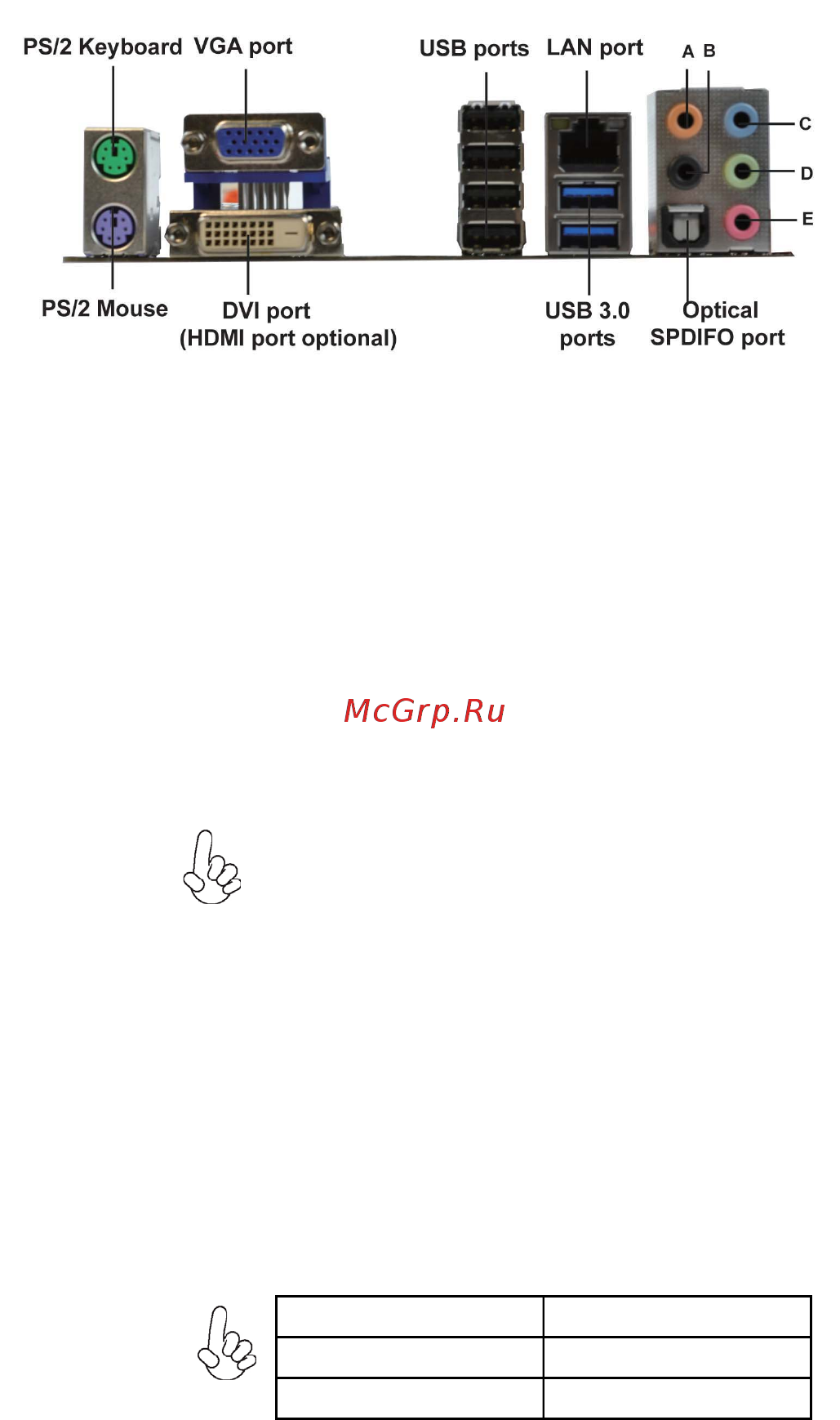

The backplane of the motherboard has the following I/O ports:

VGA Port Connect the VGA port to the monitor.

PS/2 Keyboard Port

LAN Ports

USB 2.0 Ports

Connect an RJ-45 jack to the LAN port to connect your

computer to the Network.

Use the USB 2.0 ports to connect USB 2.0 devices.

USB 3.0 Ports Use the USB 3.0 ports to connect USB 3.0 devices.

PS/2 Mouse Port

Use the upper PS/2 port to connect a PS/2 pointing

device.

Use the lower PS/2 port to connect a PS/2 keyboard.

DVI Port

Connect the DVI port (or HDMI port) to the monitor.

Audio Ports

Use the audio jacks to connect audio devices. The C port

is for stereo line-in signal, while the E port is for micro-

phone in signal. This motherboard supports audio de-

vices that correspond to the A, B, and D port respec-

tively. In addition, both of the 2 ports, B, and D provide

users with both right & left channels individually. Users

please refer to the following note for specific port func-

tion definition.

The above port definition can be changed to audio input

or audio output by changing the driver utility setting.

A: Center & Woofer D: Front Out

B: Back Surround E: Mic_in Rear

C: Line-in -

Optical SPDIF Output

This jack connects to external optical digital audio out-

put devices.

USB3.0 optional & compatible with USB 2.0.

(HDMI Port Optional)
