ECS Elitegroup H67H2-M2 [51/74] Using bios
![ECS Elitegroup H67H2-M2 [51/74] Using bios](/views2/1212529/page51/bg33.png)
47
Using BIOS
+/- : Value
Enter : Select
lk
mn
:Select Screen
:Select Item
F1:General Help
F2:Previous Value
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
System Agent Configuration
Initate Graphic Adapter [Auto]
IGD Memory [64M]
DVM Memory [256MB]
IGD Multi-Monitor [Disabled]
Step 3. Enable IGD Multi-Monitor from BIOS. In the following BIOS screen, please
set IGD Multi-Monitor to [Enabled].

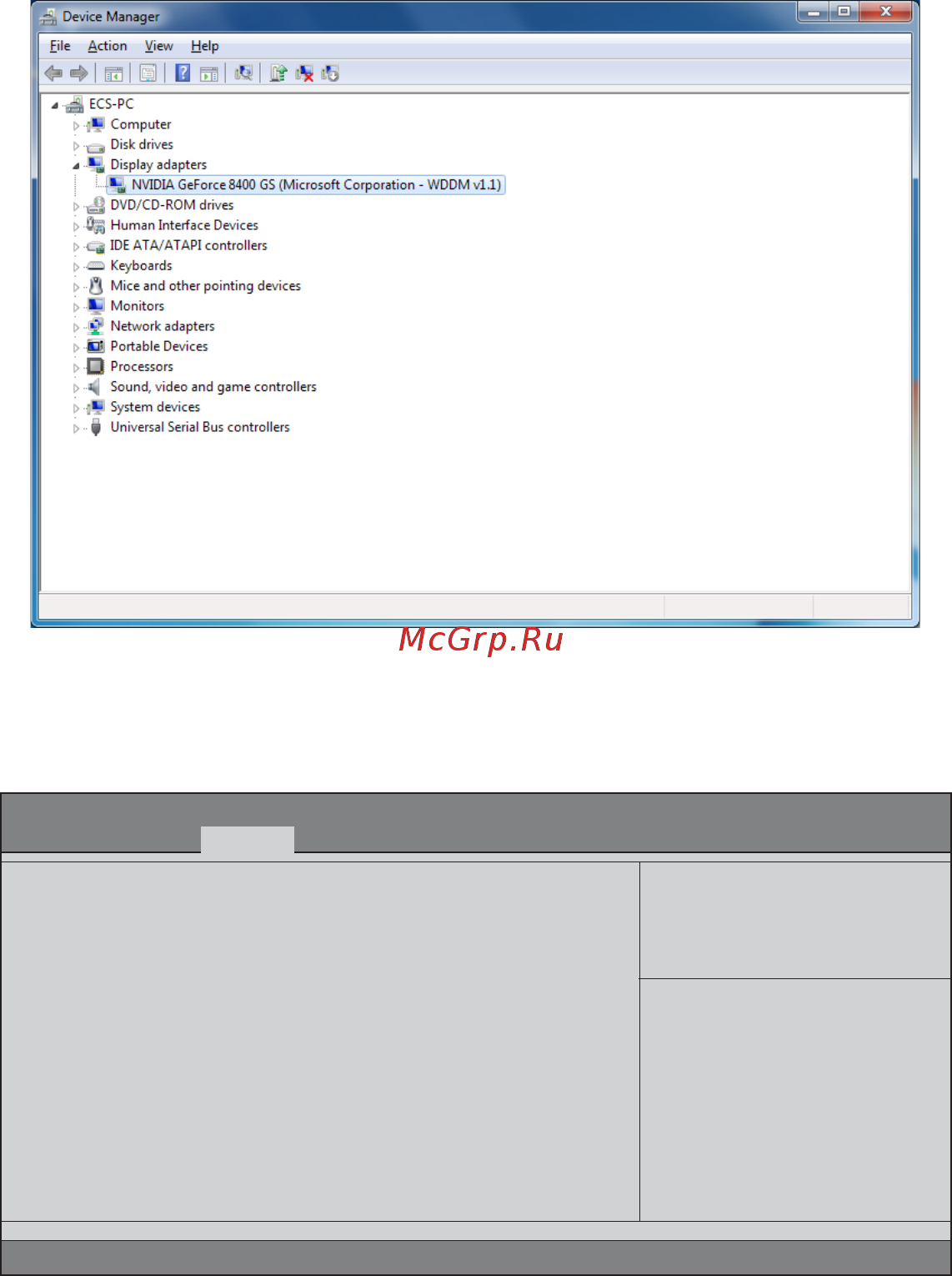

Step 2. Install all the drivers of PCI-Express graphic cards. Click the Browse CD
item, then appears the following screen. Select the driver you want to install(e.g
NVIDIA GeForce 8400 GS(Microsoft Corporation-WDDM v1.1)) and double click
it.
Select which of IGFX/PEG/PCI
Graphics device should be Primary
Display or select SG for Switchable
Gfx.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc.
Main Advanced Chipset M.I.B III Boot Security Exit
