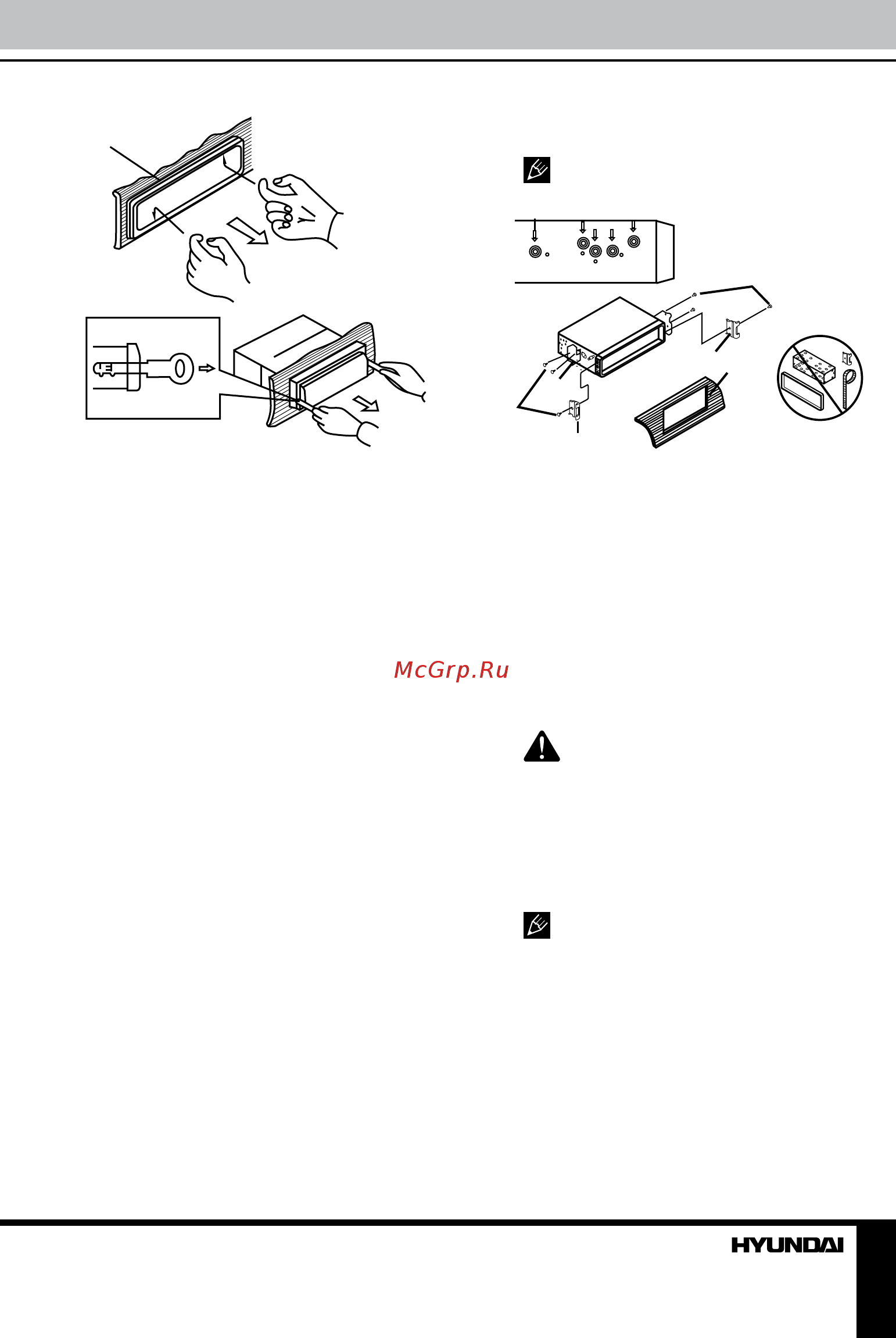

Hyundai H-CDM8017G Black [5/39] Installation connection
![Hyundai H-CDM8017G Black [5/39] Installation connection](/views2/1021448/page5/bg5.png)
5
Installation/Connection
c
b
а
1. Switch off the unit and detach the front
panel.
2. Insert your fingers into the groove in the
front side of the trim frame (apply some effort to
detach the frame). Pull the frame to detach it.
3. Insert the supplied release keys into the
both sides of the unit body to click, as shown
in the picture. To extract the unit from the
dashboard, pull the release keys or the unit
body to pull it out. Before detaching the unit,
ensure it is not fixed with the metal strap.
Trim frame installation
To install the trim frame, press it to the unit
body and push it to fix it in place. This should
be done before installing the front panel;
otherwise you are not able to install the trim
frame. When the trim frame being installed,
the side with the groove should face down and
fixed first.
2. DIN rear-mount (Method B)
For this method, use the screw holes in the
lateral sides of the unit. Fix the unit with the
help of the factory radio mounting brackets.
1. Select a position in which the screw holes
of the brackets (3) are aligned with the screw
holes in the unit body, and screw in two screws
(2) in each side.
2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).
The outer trim frame and mounting
sleeve are not used for method of installation.
2
2
5
5
4
3
Detachable control panel
Install the fastening hole on the right side of
the front panel on the right fastening of the unit.
Then install the fastening hole on the left side of
the front panel on the left fastening of the unit.
After that, lift the panel and press on the middle
of the panel until a click. Ensure that the panel is
properly fixed, otherwise error symbols may be
displayed and some buttons may not function.
To detach the front panel, press OPEN
button and distract the left, then the right side
of the panel from the fastenings of the unit.
The control panel can easily be
damaged by shocks. After removing it, place
it in a protective case and be careful not to
drop it or subject it to strong shocks. The rear
connector that connects the main unit and the
control panel is an extremely important part. Be
careful not to damage it by pressing on it with
fingernails, pens, screwdrivers, etc.
If the control panel is dirty, wipe off the
dirt with soft, dry cloth only. And use a cotton
swab soaked in isopropyl alcohol to clean the
socket on the back of the control panel.
Anti-theft system
The front panel of this unit can be stored in
the protective case and carried away when you
leave the vehicle to deter theft. Switch off the
power of the unit. Detach the front panel, then
put it to the protective case and take it with you.
