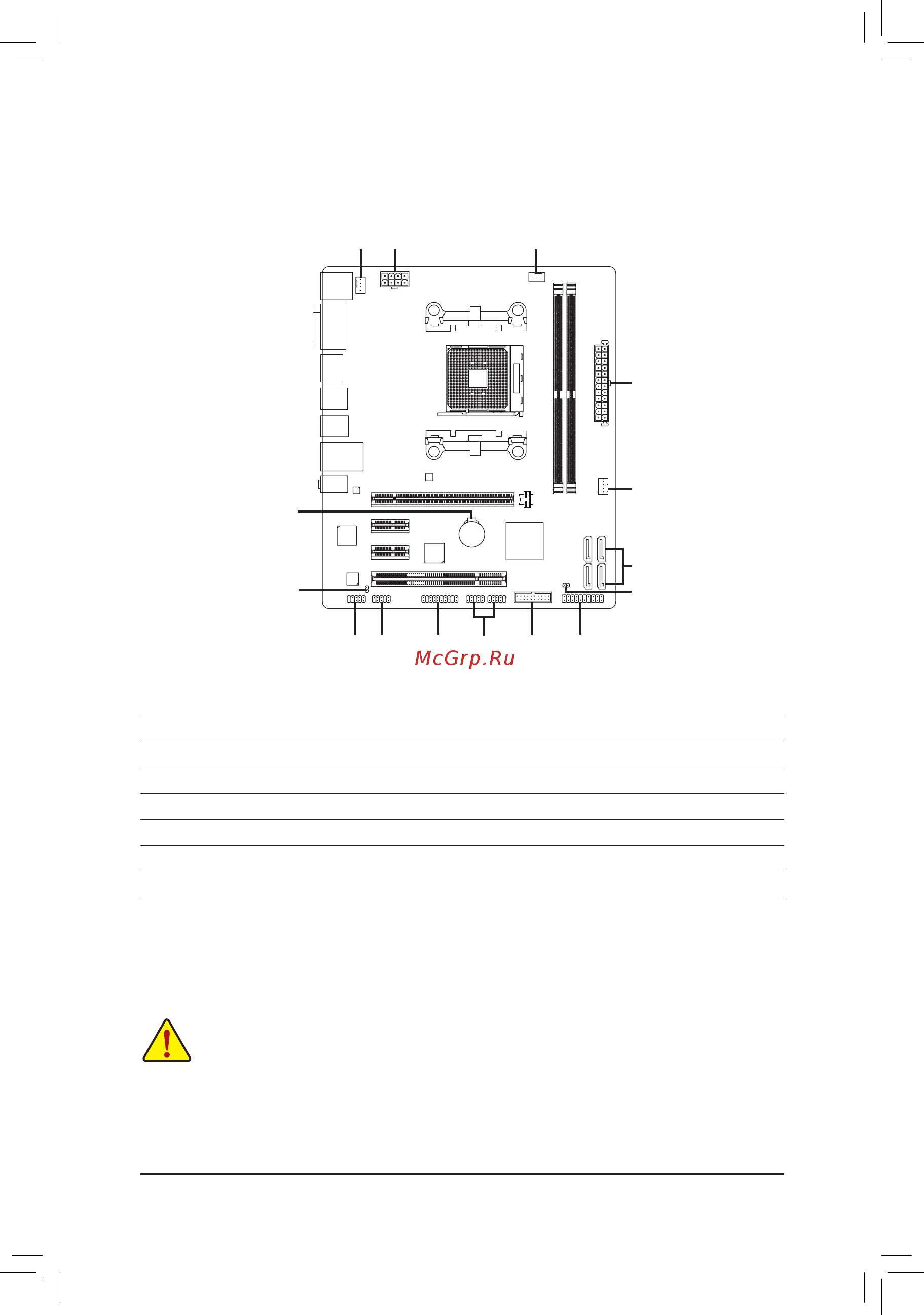

1-7 Internal Connectors
Readthefollowingguidelinesbeforeconnectingexternaldevices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1/2
5) SATA3
0/1/2/3
6) SPDIF_O
7) F_PANEL
8) F_AUDIO
9) COM
10
) F_USB30
11) F_USB1/F_USB2
12) TPM
13) BAT
14) CLR_CMOS
1
2
3
7
10
6
9
11
8
12
13
4
4
5
14
- 12 -
