ASUS TUF X299 MARK 2
1-15
Chapter 1

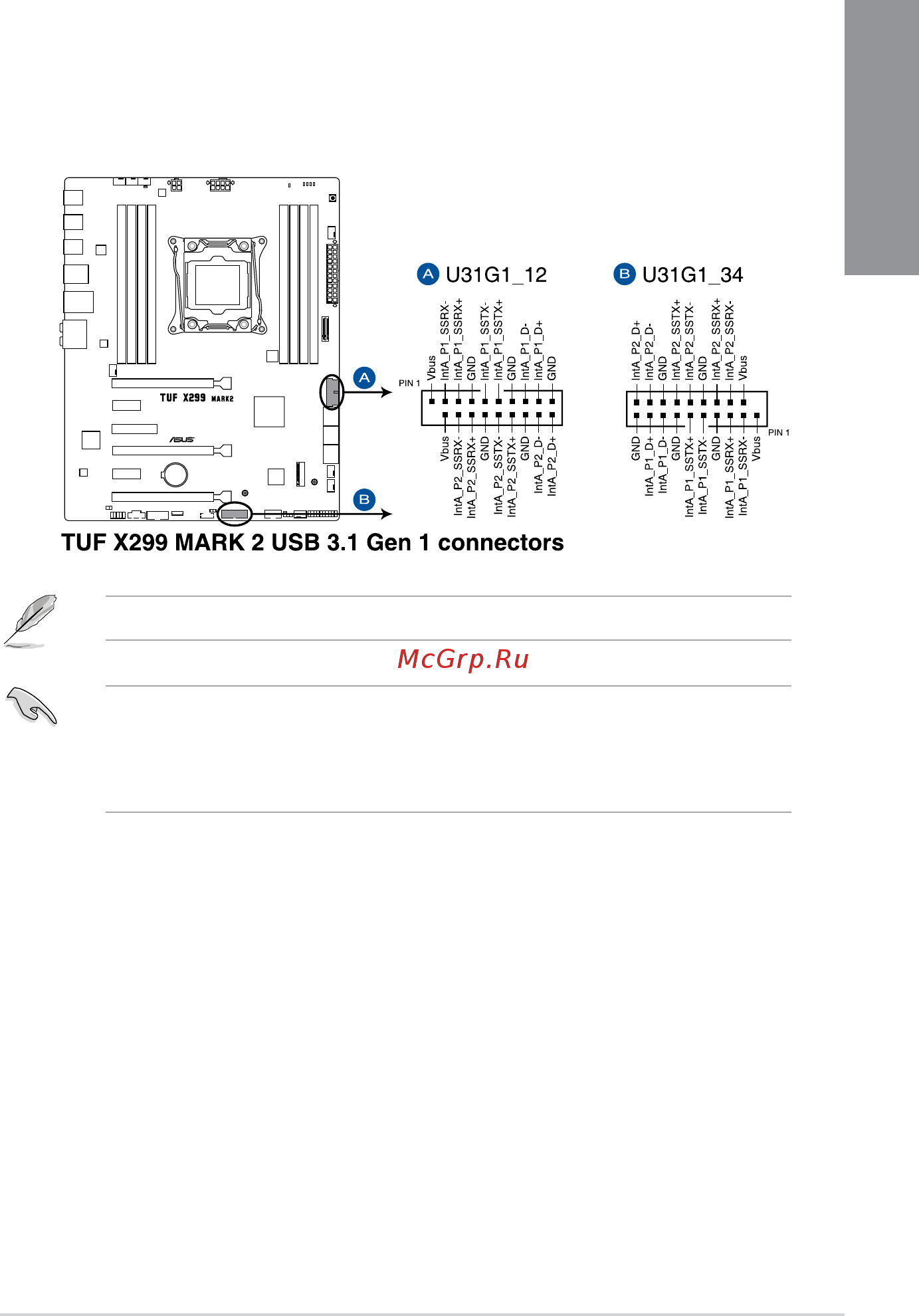

4. USB 3.1 Gen 1 connectors (20-1 pin U31G1_12; U31G1_34)
TheseconnectorsallowyoutoconnectaUSB3.1Gen1moduleforadditionalUSB
3.1Gen1frontorrearpanelports.WithaninstalledUSB3.1Gen1module,youcan
enjoyallthebenetsofUSB3.1Gen1includingfasterdatatransferspeedsofupto
5Gb/s,fasterchargingtimeforUSB-chargeabledevices,optimizedpowerefciency,
andbackwardcompatibilitywithUSB2.0.
TheUSB3.1Gen1moduleispurchasedseparately.
• EnsuretoinstalltherelateddrivertofullyusetheUSB3.1Gen1portsunder
Windows
®
7.
• ThepluggedUSB3.1Gen1devicemayrunonxHCIorEHCImodedependingonthe
operatingsystem’ssetting.
