Asus ROG STRIX X299-E GAMING [57/112] M installation

ROG STRIX X299-E GAMING

2-13

Chapter 2

• Pleaseremovetheplasticlmfromthethermalpadbeforeuse.

• UsethebundledM.2screwstosecuretheM.2.

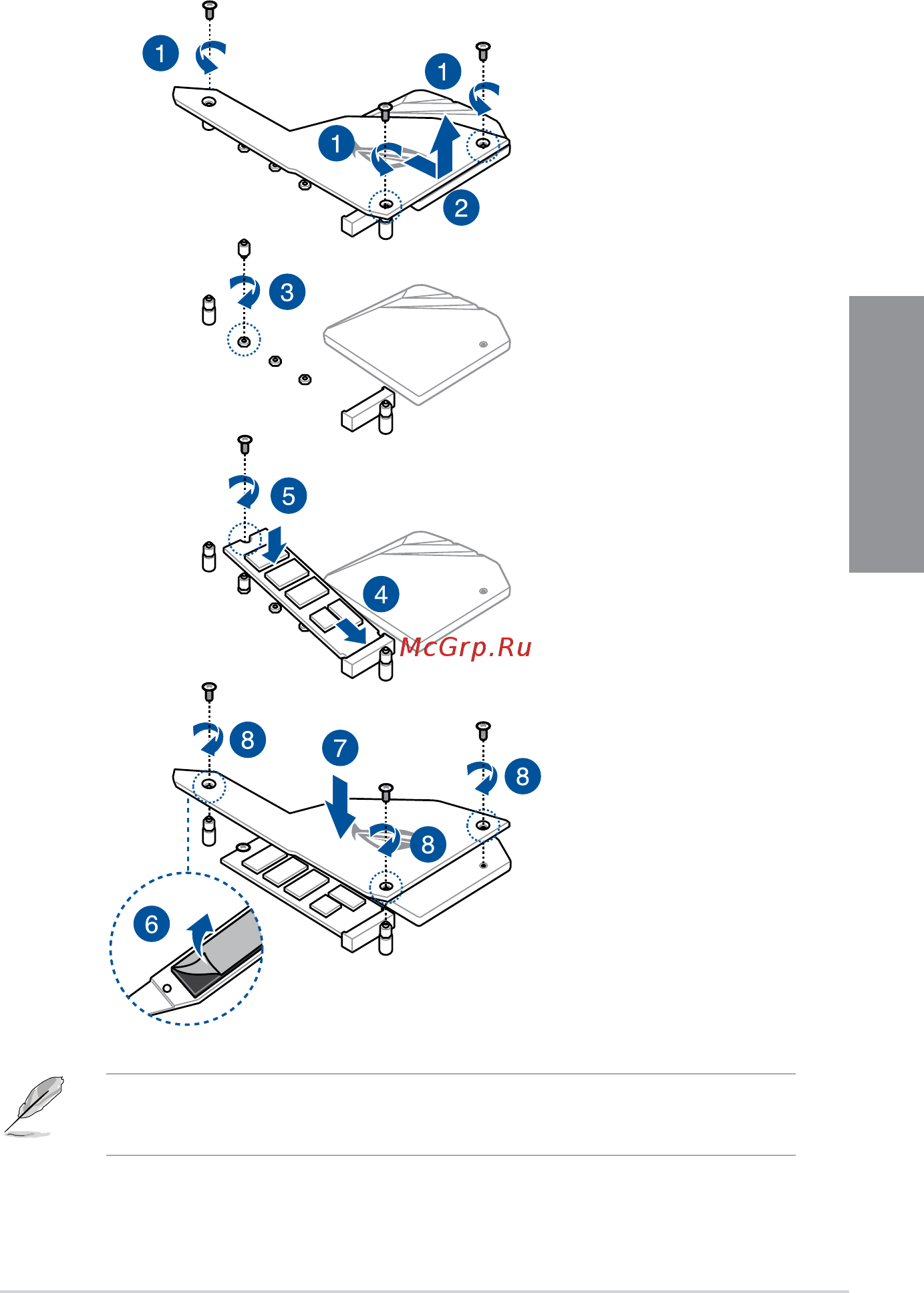

2.1.9 M.2 installation
