Asus ROG MAXIMUS IX CODE [31/52] Network monitor

ASUS ROG & ROG STRIX Z200 Series Feature Manual

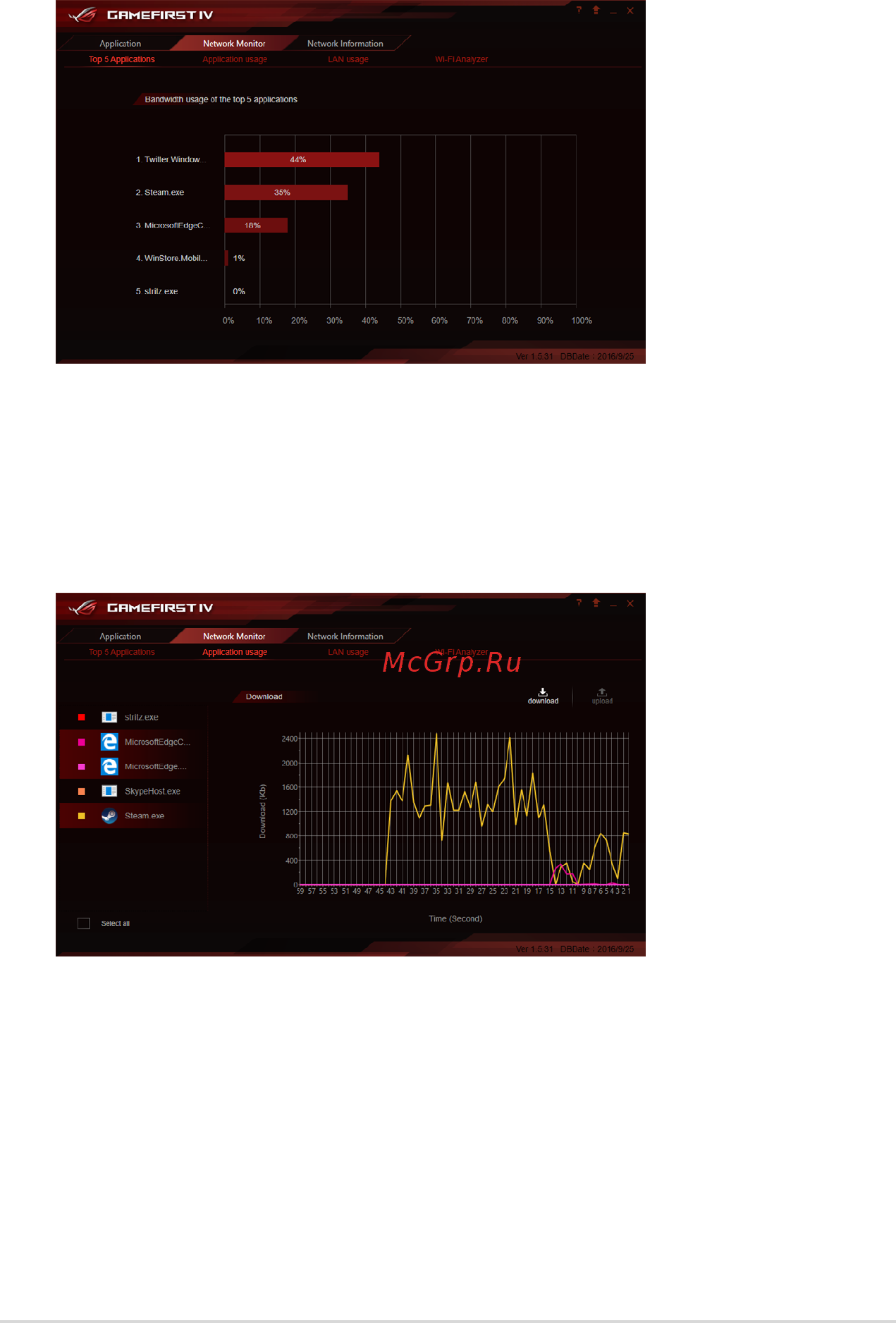

Network Monitor

Top 5 application

Displays the top 5 bandwidth consuming applications currently used.

Application usage

Displays the individual downloading and uploading bandwidth of currently used applications.
