ASUS ROG & ROG STRIX Z200 Series Feature Manual

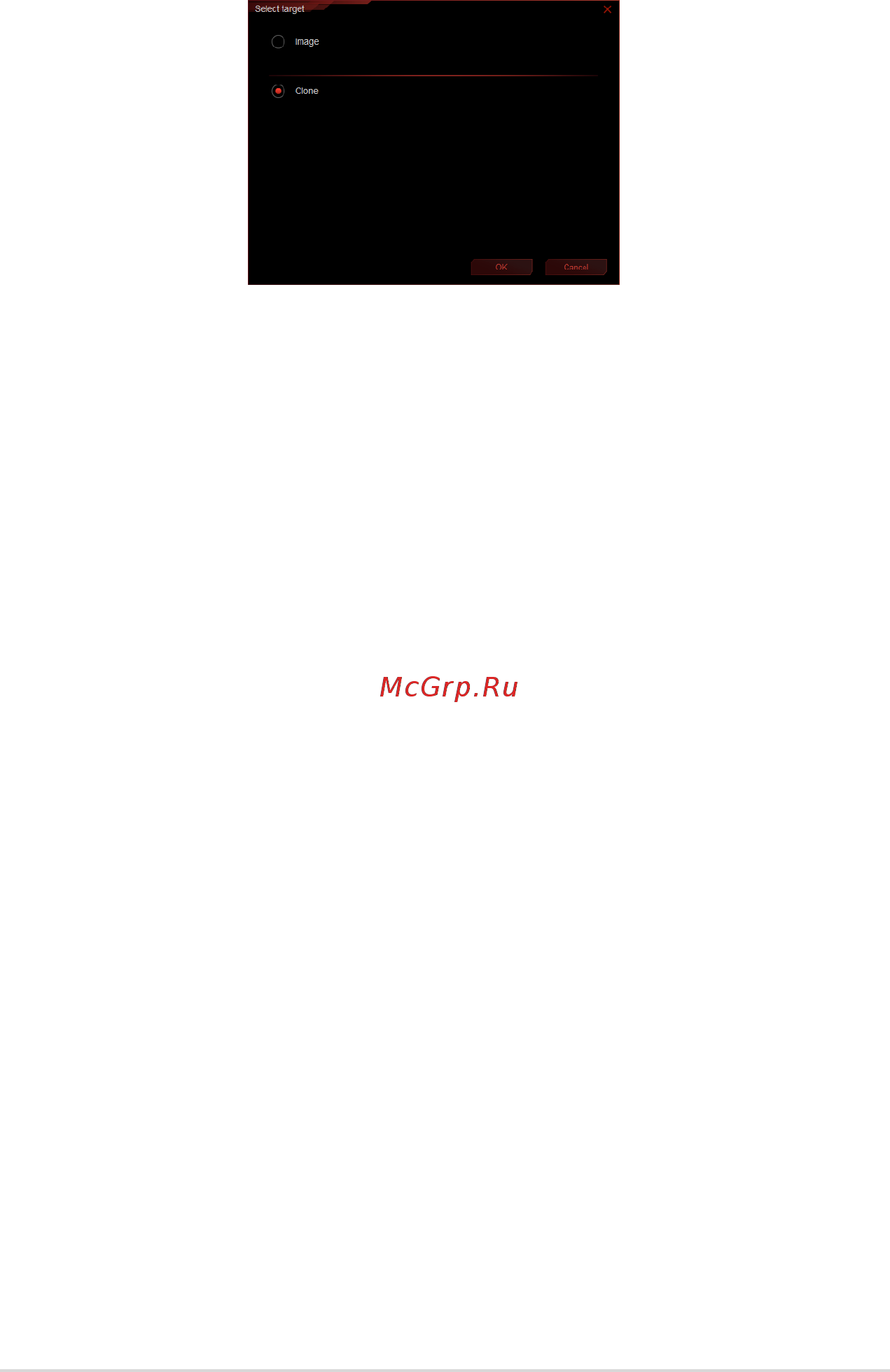

3. Click on Add, then select Image to create an image le of the source disk, or Clone to

copy the source disk to another disk. Click OK once you have selected your target.

4. Click on Start to start cloning the source disk.
