Asus TUF X299 MARK 1 [30/112] Internal connectors
![Asus TUF X299 MARK 1 [30/112] Internal connectors](/views2/1233216/page30/bg1e.png)
1-14
Chapter 1: Product Introduction
Chapter 1

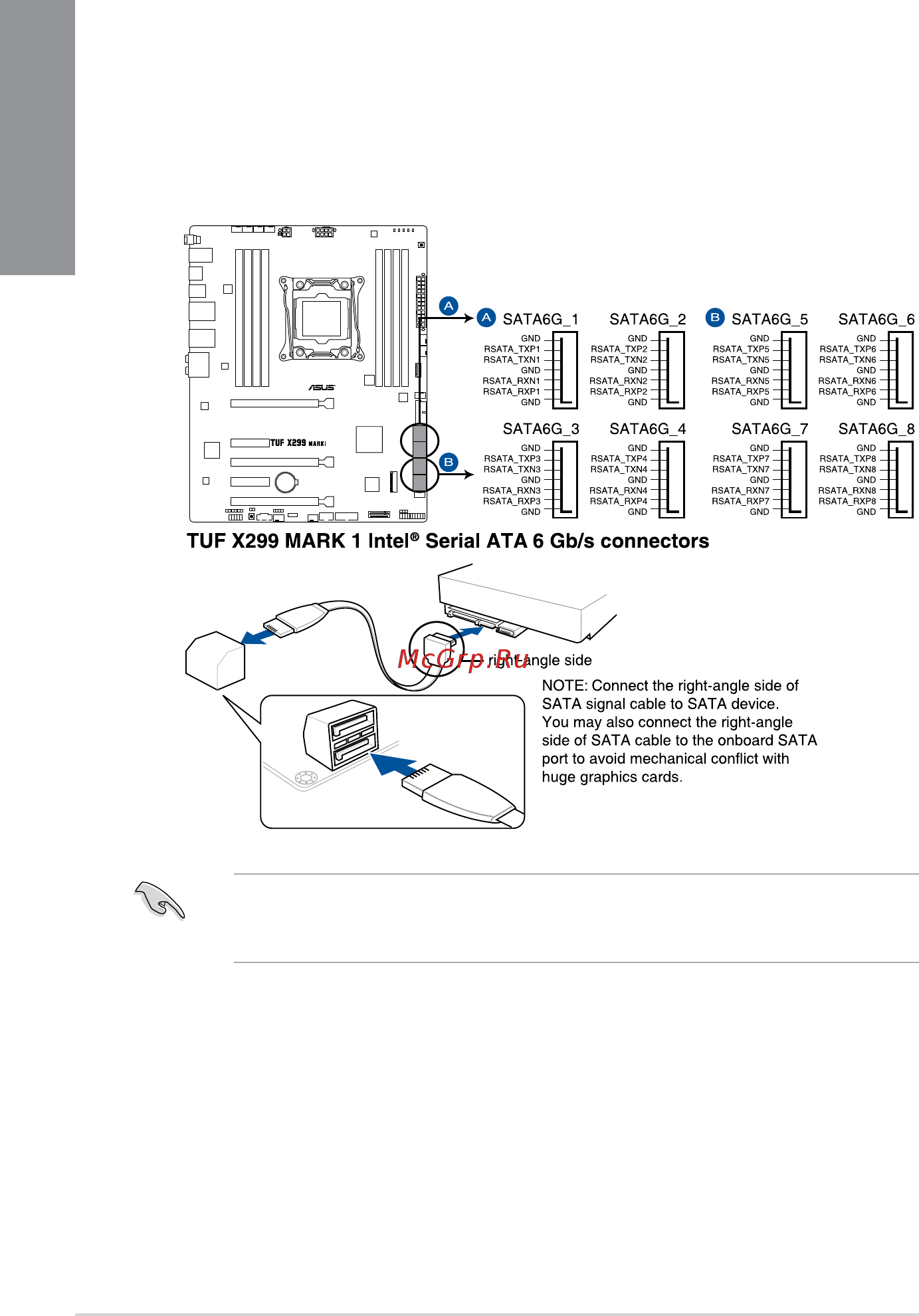

1.1.9 Internal connectors
1. Intel
®
Serial ATA 6 Gb/s connectors (7-pin SATA6G_12; SATA 6G_34;
SATA 6G_56; SATA 6G_78)
TheseconnectorsconnecttoSerialATA6Gb/sharddiskdrivesviaSerialATA6Gb/s
signalcables.
IfyouinstalledSerialATAharddiskdrives,youcancreateaRAID0,1,5,and10
congurationwiththeIntel
®
RapidStorageTechnologythroughtheonboardIntel
®
X299chipset.
Theseconnectorsaresetto[AHCI Mode]bydefault.IfyouintendtocreateaSerialATA
RAIDsetusingtheseconnectors,settheSATAModeitemintheBIOSto[Intel RST
Premium With Intel Optane System Acceleration (RAID)].
