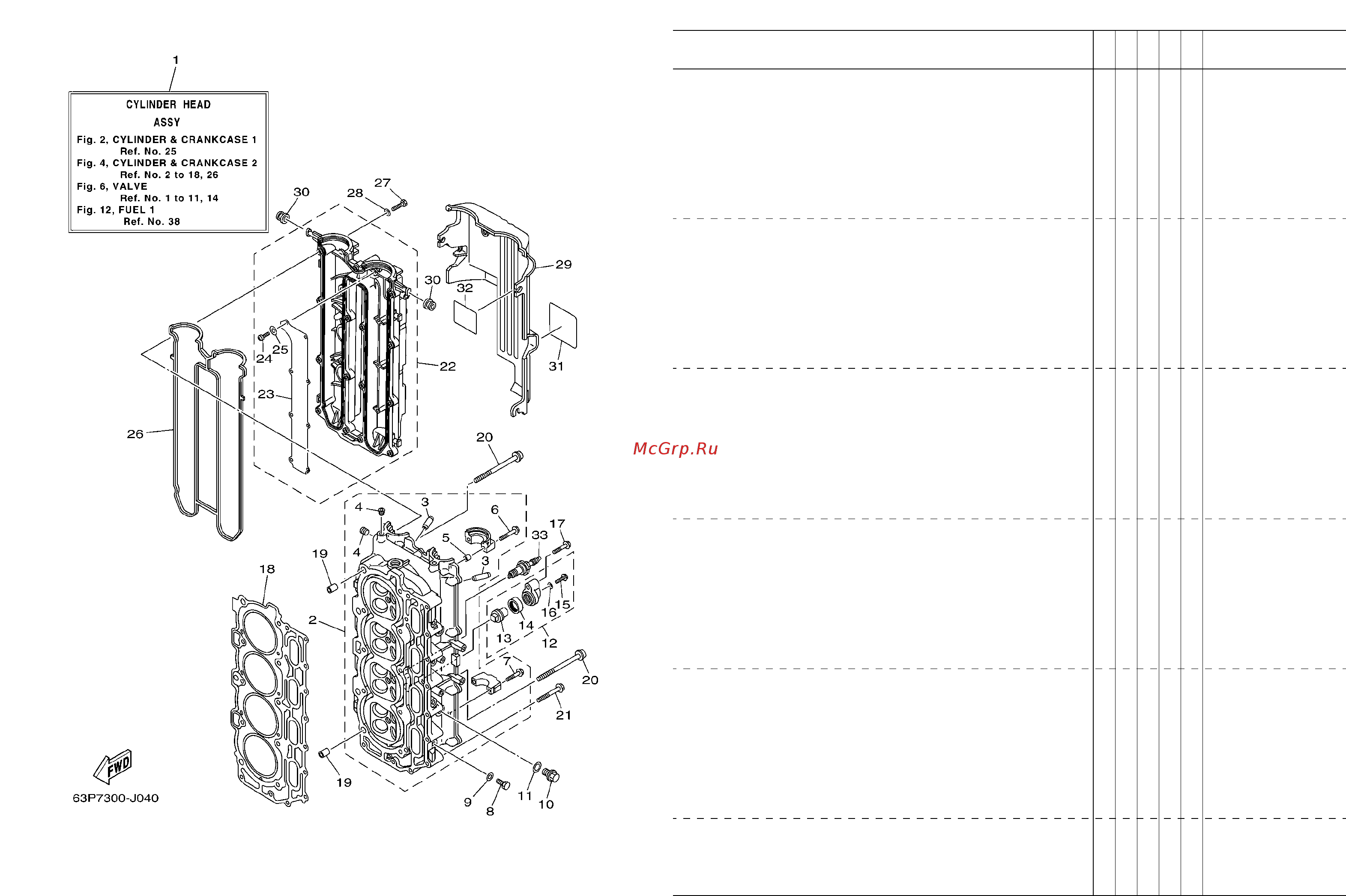

FIG. 4 CYLINDER & CRANKCASE 2 CYLINDRE & CARTER 2
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
63P7
64P7
REMARKS
REMARQUES
1
63P–W009A–02–9S
CYLINDER HEAD ASSY
CULASSE (ENS.)
11
2
63P–11110–00–9S
CYLINDER HEAD ASSY
JEU DE CULASSE
11
3
69J–11133–10
.GUIDE, VALVE 1
.GUIDE, SOUPAPE 1
16 16
4
90344–51019
.PLUG, TAPER SCREW
.PLOT, FILETE CONIQUE
33
5
91809–08006
.PIN, DOWEL
.GOUJON, D'ASSEMBLAGE
44
6
90119–07235
.BOLT/WASHER-CAM CAPS
.BOULON, AVEC RONDELLE
44
7
90119–07234
.BOLT, WITH WASHER
.BOULON, AVEC RONDELLE
16 16
8
97095–08014
BOLT
BOULON
44
9
90430–08143
GASKET
JOINT
44
10
90340–14M06
PLUG, STRAIGHT SCREW
PLOT, FILETE DROIT
22
11
90430–14115
GASKET
JOINT
22
12
69J–11301–00
ANODE COVER ASSY
COUVERCLE ANODE (ENS.)
22
13
67F–11325–01
.ANODE
.ANODE
11
14
67F–11328–00
.GROMMET, ANODE
.PASSE-FIL
11
15
90105–06M07
.BOLT, FLANGE
.BOULON
11
16
90430–06M03
.GASKET
.JOINT
11
17
97575–08540
BOLT, WITH WASHER
VIS HEXAGONAL AVC RONDELLE
22
18
63P–11181–00
GASKET, CYLINDER HEAD 1
JOINT, DE CULASSE 1
11
19
90387–10M08
COLLAR
COLLERETTE
22
20
90155–10001
SCREW, FLAT FILLISTER
VIS, TETE OVALE PLATE
10 10
21
90119–08M91
BOLT, WITH WASHER
BOULON, AVEC RONDELLE
10 10
22
63P–11191–00–9S
COVER, CYLINDER HEAD 1
COUVERCLE, CULASSE 1
11
23
63P–11135–00
.PLATE, BREATHER 3
.PLAQUE, RENIFLARD 3
11
24
98507–04008
.SCREW, PAN HEAD
.VIS, TETE TRONCONIQUE
88
25
92907–04600
.WASHER
.RONDELLE
88
26
63P–11193–00
GASKET, HEAD COVER 1
JOINT, COUVERCLE DE CULASSE 1
11
27
97095–06030
BOLT
BOULON
13 13
