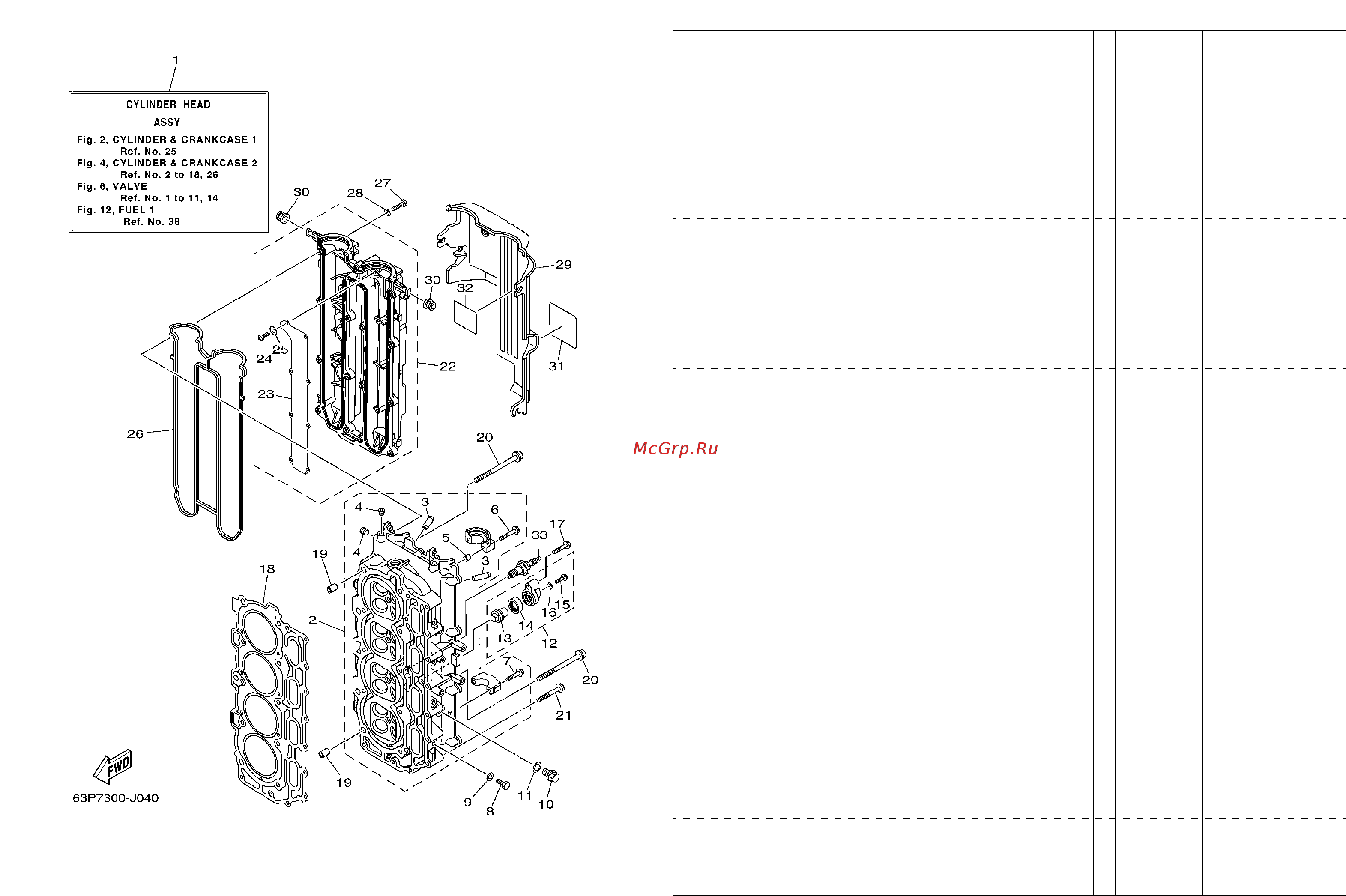

FIG. 4 CYLINDER & CRANKCASE 2 CYLINDRE & CARTER 2
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
63P7
64P7
REMARKS
REMARQUES
28
92995–06600
WASHER
RONDELLE
13 13
29
63P–11192–01
COVER, CYLINDER HEAD 2
COUVERCLE, CULASSE 2
11
30
90480–12072
GROMMET
PASSE-FIL
55
31
63P–83626–00
MARK 6
MARK 6
11
32
67F–12138–60
MARK, CAUTION
MAKER
11
33
94702–00391
PLUG, SPARK (NGK LFR5A-11)
BOUGIE D'ALLUMAGE(NGK LFR5A-11
44
