Yamaha F150 [7/78] Remarks remarques
![Yamaha F150 [7/78] Remarks remarques](/views2/1241095/page7/bg7.png)
1

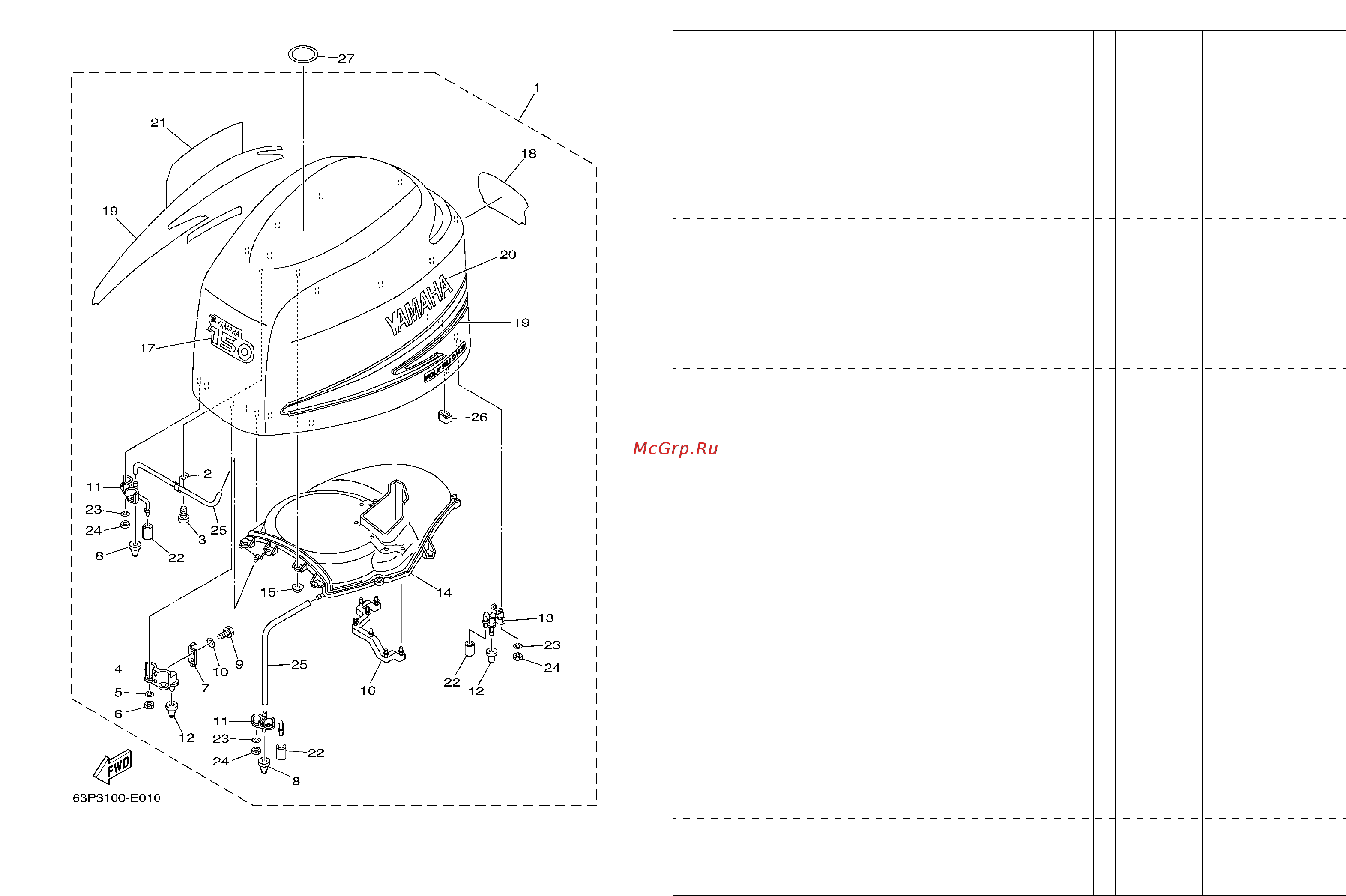

FIG. 1 TOP COWLING CAPOT SUPERIEUR
REF.
NO.
PART NO.
N° PIECES
DESCRIPTION
DESCRIPTION
63P7
64P7
REMARKS
REMARQUES
1
63P–42610–01–8D
TOP COWLING ASSY
CAPOT (ENS.)
11
2
90465–10032
.CLAMP
.BRIDE
11
3
97780–50620
.SCREW, TAPPING
.VIS, TETE BOMBEE
11
4
63P–42647–00–94
.HOLDER, CLAMP BAND
.SUPPORT, SANDOW DE SERRAGE
22
5
92990–06100
.WASHER, SPRING
.RONDELLE, GROWER
44
6
95380–06600
.NUT, HEXAGON
.ECROU
44
7
60V–42651–01
.HOOK
.CROCHET
22
8
69J–42663–00
.DAMPER
.AMORTISSEUR
22
9
97095–06016
.BOLT
.BOULON
44
10
92995–06600
.WASHER
.RONDELLE
44
11
63P–42643–00–94
.PLATE, CLAMP
.PLAQUE, PRESSE
22
12
68F–42663–00
.DAMPER
.AMORTISSEUR
44
13
63P–42644–00–94
.PLATE, CLAMP 2
.PLAQUE, PRESSE 2
22
14
63P–42613–00
.MOLDING, AIR DUCT
.MANCHON A AIR
11
15
90179–06M24
.NUT
.ECROU
10 10
16
63P–42617–00
.DAMPER, FORM
.BOURRELET, CAOUTCHOUC
11
17
63P–42677–00
.GRAPHIC, FRONT
.ADHESIF, AVANT
11
18
63P–42678–00
.GRAPHIC, REAR
.ADHESIF, ARRIERE
11
19
63P–W0070–00
.GRAPHIC SET
.JEU DIEMBLEMES
11
20
63P–42681–00
.MARK, COWLING
.ADHESIF, CAPOT
11
21
63P–42682–00
.MARK, COWLING
.ADHESIF, CAPOT
11
22
67F–13448–00
.CAP
.CAPUCHON
44
23
92990–06100
.WASHER, SPRING
.RONDELLE, GROWER
88
24
95380–06600
.NUT, HEXAGON
.ECROU
88
25
90445–11020
.HOSE (L400)
.DURITE (L400)
22
26
63P–42662–00
.DAMPER
.AMORTISSEUR
44
27
67F–13434–10
LABEL, CAUTION
ETIQUETTE, ATTENTION
11
