Activated Charcoal Filter (Recirculation Version)

• This cannot be washed or regenerated, and must be changed when all the command LEDs

start to flash, or at least once every 4 months.

Activating the alarm signal

• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at

a later date.

• Press and hold the Delay button (T4) on the keypad for 5 seconds and the following will be dis-

played:

• Leds (L1-L2-L3) flash twice – Activated Charcoal Filter saturation alarm ACTIVATED.

• Leds (L1-L2-L3) flash once – Activated Charcoal Filter saturation alarm DEACTIVAT-

ED.

CHANGING THE ACTIVATED CHARCOAL FILTER

Resetting the alarm signal

• Press button T1 (see the paragraph on Use).

Changing the Filter

• Pull the Comfort Panels to open them.

• Remove the Metal grease filters.

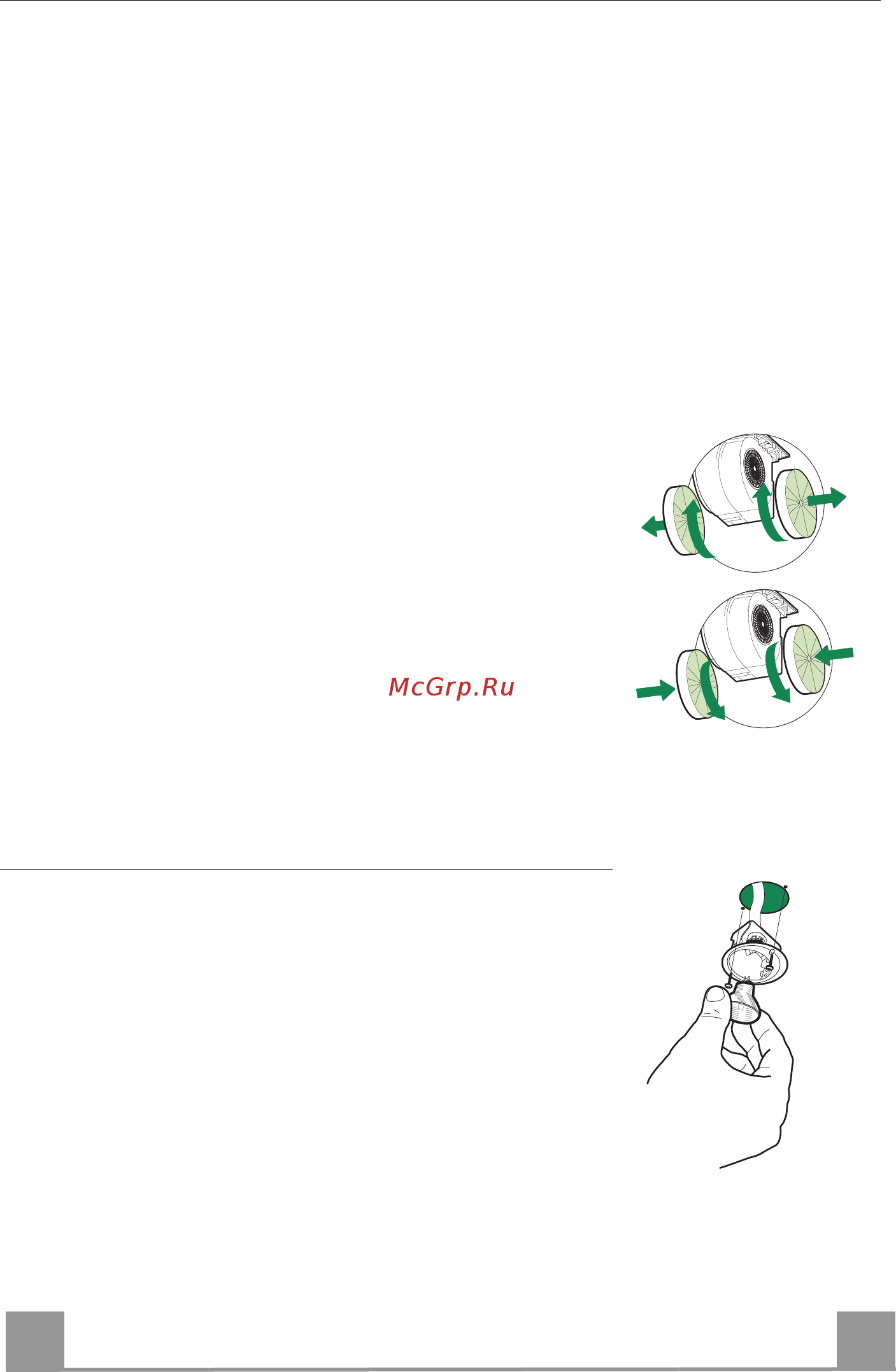

• Remove the saturated Activated Charcoal Filters, as indicated

(A).

• Fit the new Filters, as indicated (B).

• Replace the Metal grease filters.

• Close the comfort panel.s

Lighting

LIGHT REPLACEMENT

20 W halogen light.

• Remove the 2 screws fixing the Lighting support, and pull it

out of from the Hood.

• Extract the lamp from the Support.

• Replace with another of the same type, making sure that the

two pins are properly inserted in the lamp holder socket holes.

• Refit the Support, fixing it in place with the two screws re-

moved as above.
