TSC TTP-248M [15/31] Set up

different width of ribbon. Turn the ribbon tension knob clockwise and you will hear

a light click sound as the gear changes. The level of rewind ribbon is from loose to

tight, level 0 to level 5. You will hear a louder click for level 0.

3. Set Up

3.1 Setting Up the Printer

Place the printer on a flat, secure surface and make sure the POWER switch is

off.

Connect the printer to the computer with the provided RS-232C or Centronics

cable.

Plug the power cord into the power supply connector at the rear of the printer,

and then plug the power cord into a properly grounded power outlet.

3.2 Ribbon Installation

1. Open the printer right side cover.

2. Disengage the printer carriage lever.

3. Install a new ribbon roll onto the ribbon supply spindle.

※ It is to be noticed that ribbon should be placed to the left end of spindle.

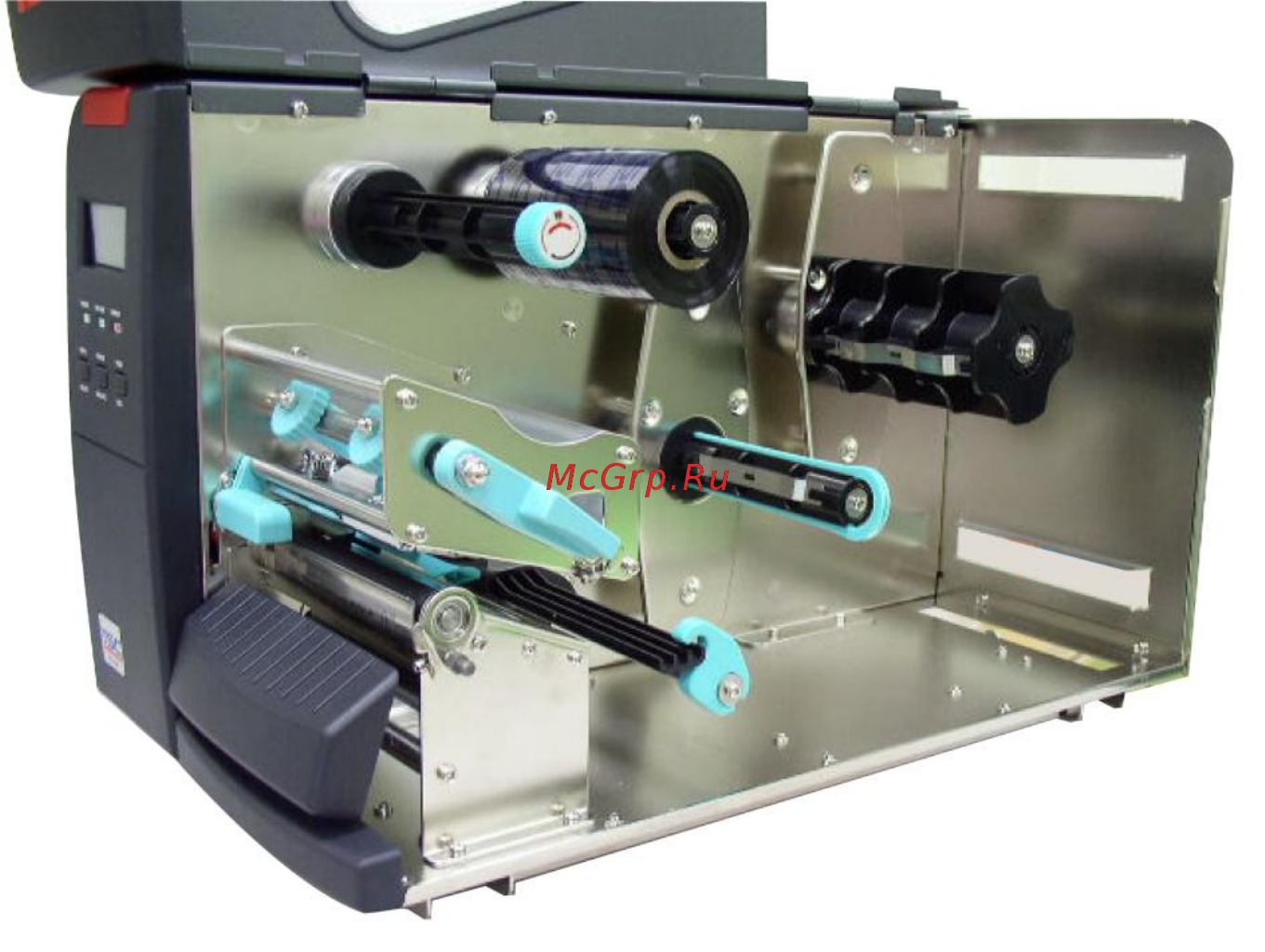

Figure 4. Ribbon installation
