TSC TTP-248M [16/31] Label roll installation

4. Place an empty paper core onto the ribbon rewind roll. (The diameter of

empty paper core must be larger then 34 mm)

5. Pull the ribbon roll leading edge forward through the ribbon sensor. Attach

the ribbon leading edge (with a tape) to the empty paper core.

6. Manually rotate the ribbon rewind roll until the ribbon overlaps the ribbon

leading edge and stretches tight.

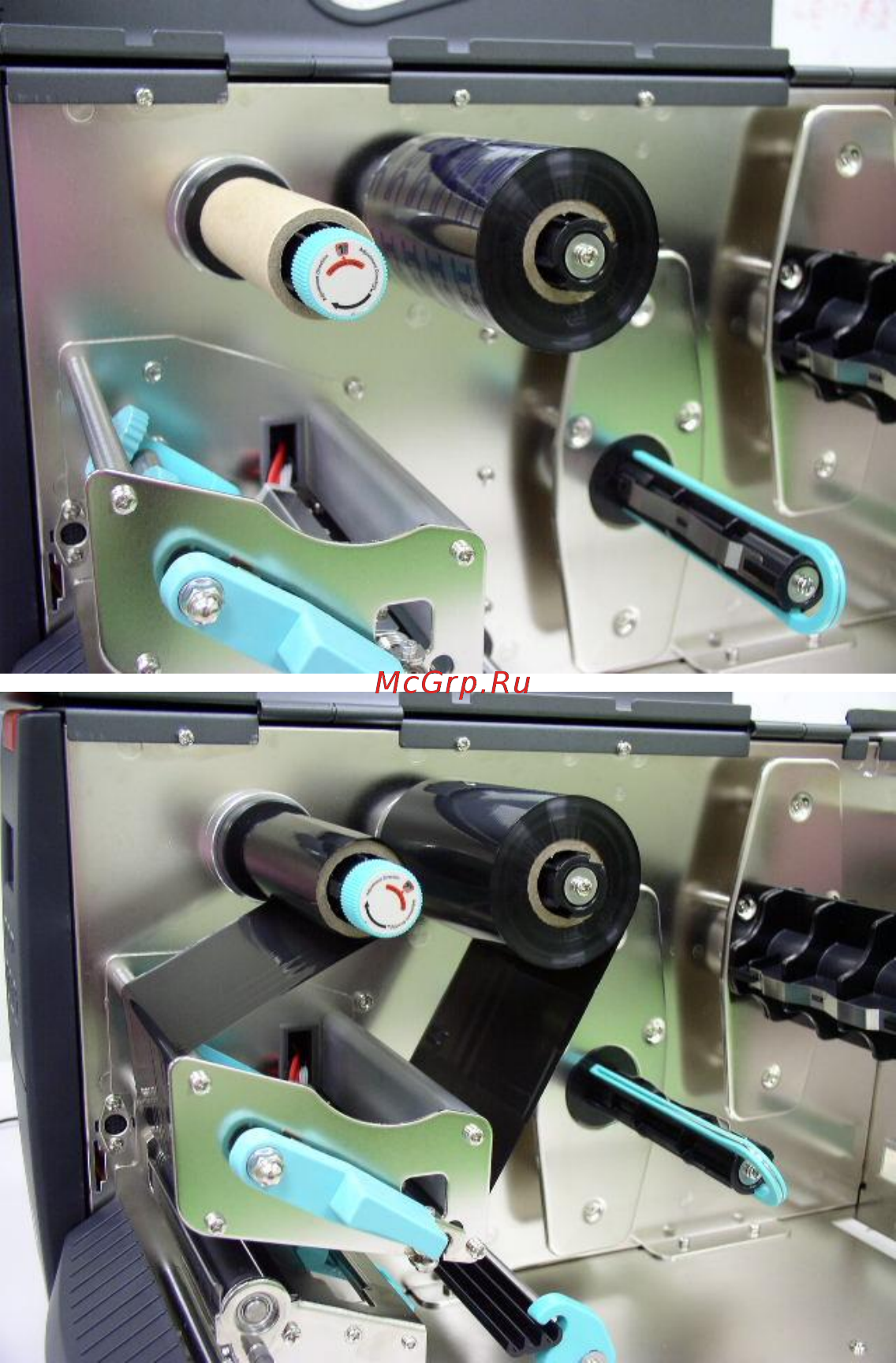

Figure 5. Installation of ribbon.

3.3 Label Roll Installation

1. Insert the label supply roll into the label spindle.

2. Pull the label roll leading edge forward through the black media guide bar,

gap/black mark sensor and place the label leading edge onto the platen

roller.

3. Adjust the label guide to meet the width of the label, and buckle it onto the

black media guide bar.
