Smart-UPS X 2000/2200/3000 Vac XL 120/208/230/240 VA Tower/Rack-Mount 4U 6
Display Interface
Display interface operation
Use the UP/DOWN arrow buttons to scroll through the main menu options. Press ENTER to view the
sub menus under each main menu option. Press
ESCAPE to exit a sub menu and return to a main menu.
Menu overview
The display interface has Standard and Advanced menu screens. The preference for Standard or Advanced menu
selections is made during initial installation and can be changed at any time through the Configuration menu.
The Standard menu screens are the most commonly used screens. Default settings are included on the Standard
menu screens.
The Advanced menu adds scrolling status screens and additional menus for UPS control and logs.
Note: Actual menu screens may differ by model and firmware revision.

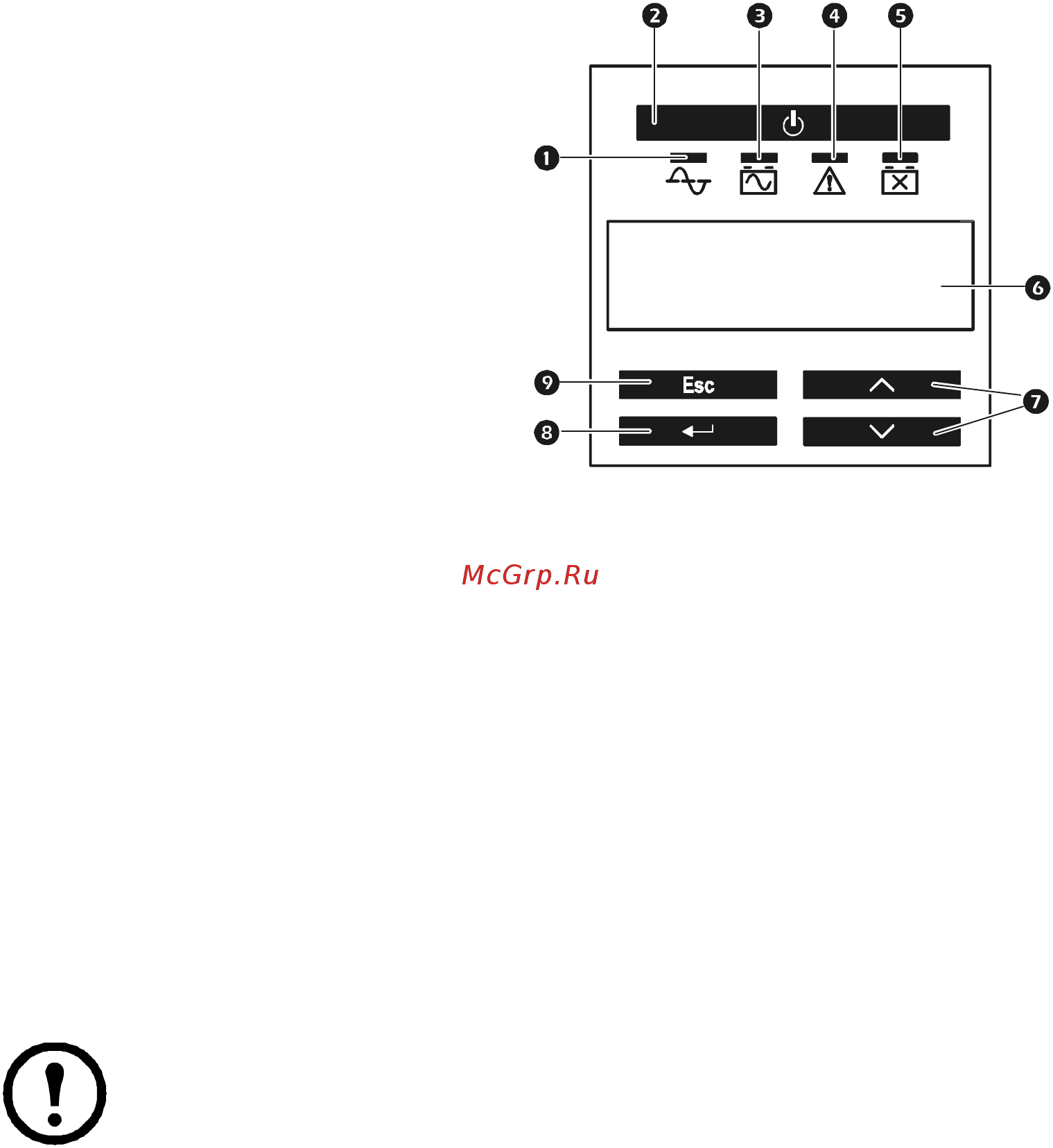

Online LED
UPS Output
ON/OFF button
On Battery LED
Fault LED
Replace Battery LED
Display screen
UP/DOWN arrow buttons
ENTER button
ESCAPE button
su0343a
APC By Schneider
Electric
