ASUS STRIX H270I GAMING
2-3
Chapter 2

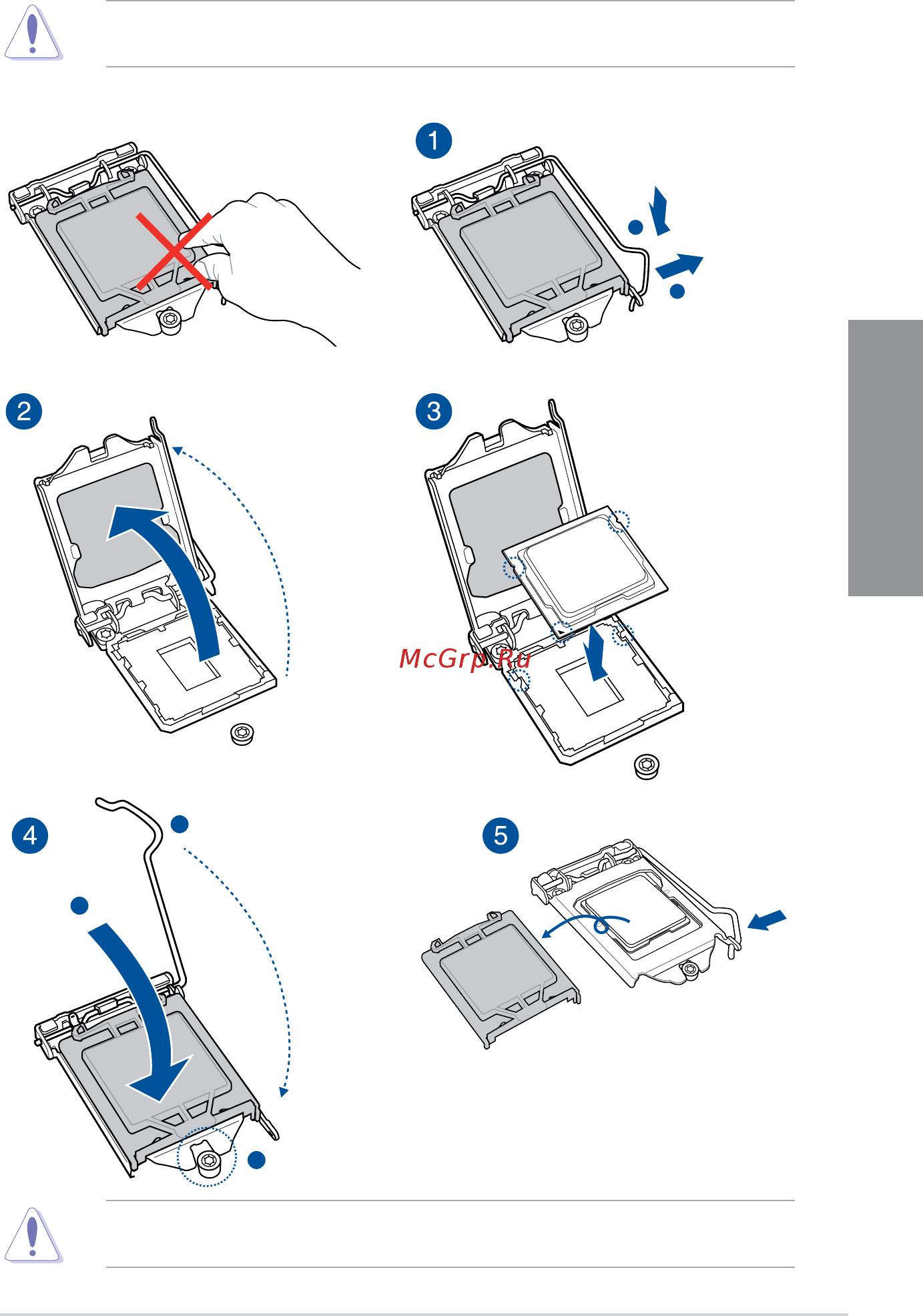

2.1.2 CPU installation
Ensure that you install the correct CPU designed for LGA1151 socket only. DO NOT install
a CPU designed for LGA1155 and LGA1156 sockets on the LGA1151 socket.
A
B
A
B
C
ASUS will not cover damages resulting from incorrect CPU installation/removal, incorrect
CPU orientation/placement, or other damages resulting from negligence by the user.
