4
Installation/Connection
Installation
General notes
• Choose the mounting location where the
unit will not interfere with the normal driving
function of the driver.
• Before finally installing the unit, connect
the wiring and make sure that the unit works
properly.
• Consult with your nearest dealer if
installation requires the drilling of holes or other
modifications of the vehicle.
• Install the unit where it does not get in the
driver’s way and cannot injure the passenger if
there is a sudden stop, like an emergency stop.
• Avoid installing the unit where it would
be subject to high temperature, such as from
direct sunlight, or from hot air, from the heater,
or where it would be subject to dust, dirt or
excessive vibration.

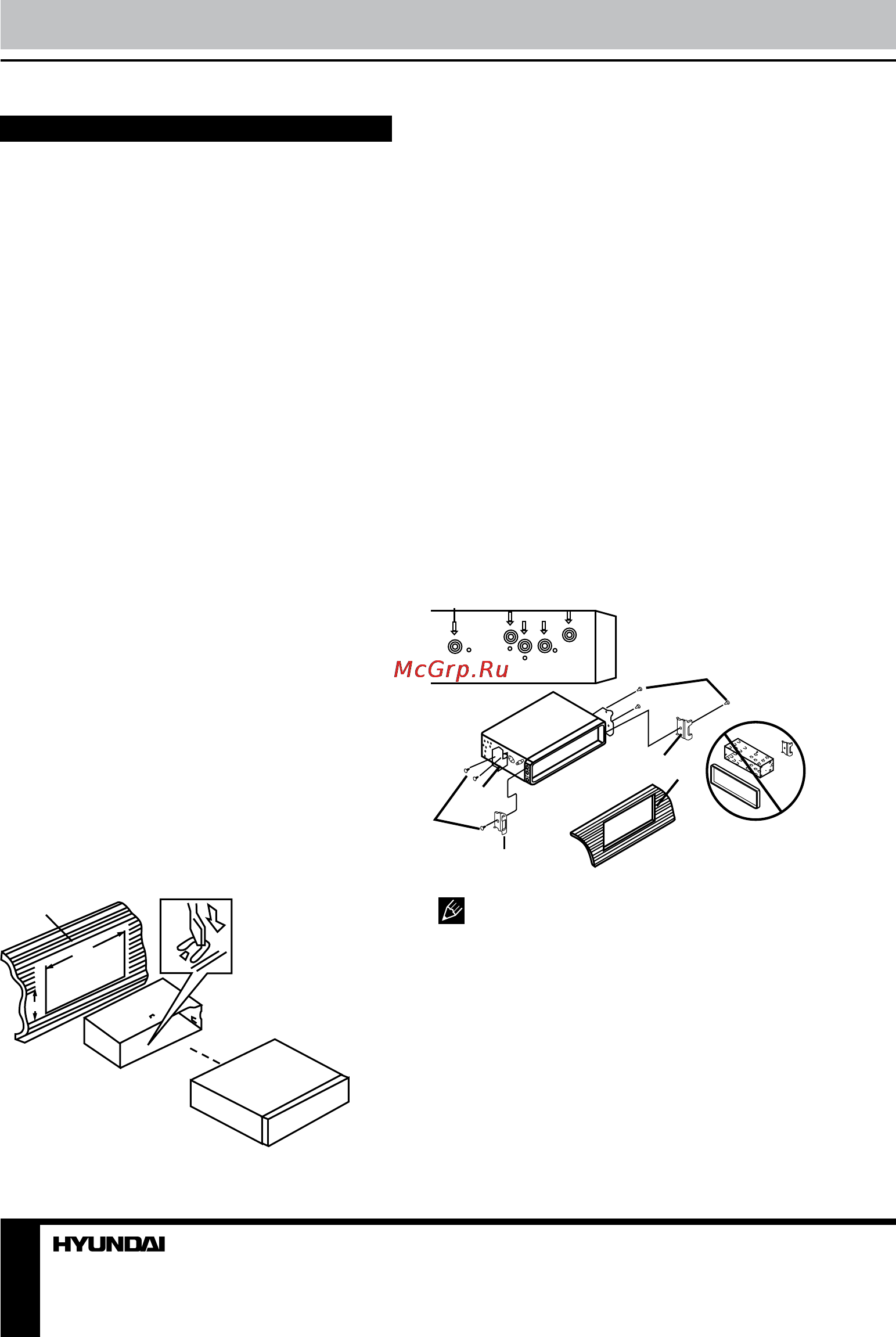

DIN front-mount (Method A)
1. Install the sleeve into the dashboard;
ensure it is installed with the correct side and
there are no obstacles (wires, dashboard
elements, etc) for the unit installation.
2. After installing the sleeve into the
dashboard, bend tabs fitting to the size of the
dashboard to fix the sleeve in place.
3. Make the necessary wire connections.
Ensure the connections are correct.
4. Install the unit into the sleeve until the side
locks are fixed.
2
1
182
53
1. Dashboard
2. Sleeve tab to bend
Trim frame installation
To install the trim frame, press it to the unit
body and push it to fix it in place. This should be
done before installing the front panel; otherwise
you are not able to install the trim frame.
DIN rear-mount (Method B)
For this method, use the screw holes in the
lateral sides of the unit. Fix the unit with the
help of the factory radio mounting brackets.
1. Select a position in which the screw holes
of the brackets (3) are aligned with the screw
holes in the unit body, and screw in two screws
(2) in each side.
2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).
2
2
5
5
4
3
The outer trim frame and mounting
sleeve are not used for method of installation.
Dismantling the unit
a – Trim frame
b – Frame uninstall direction
c – Release key insertion
