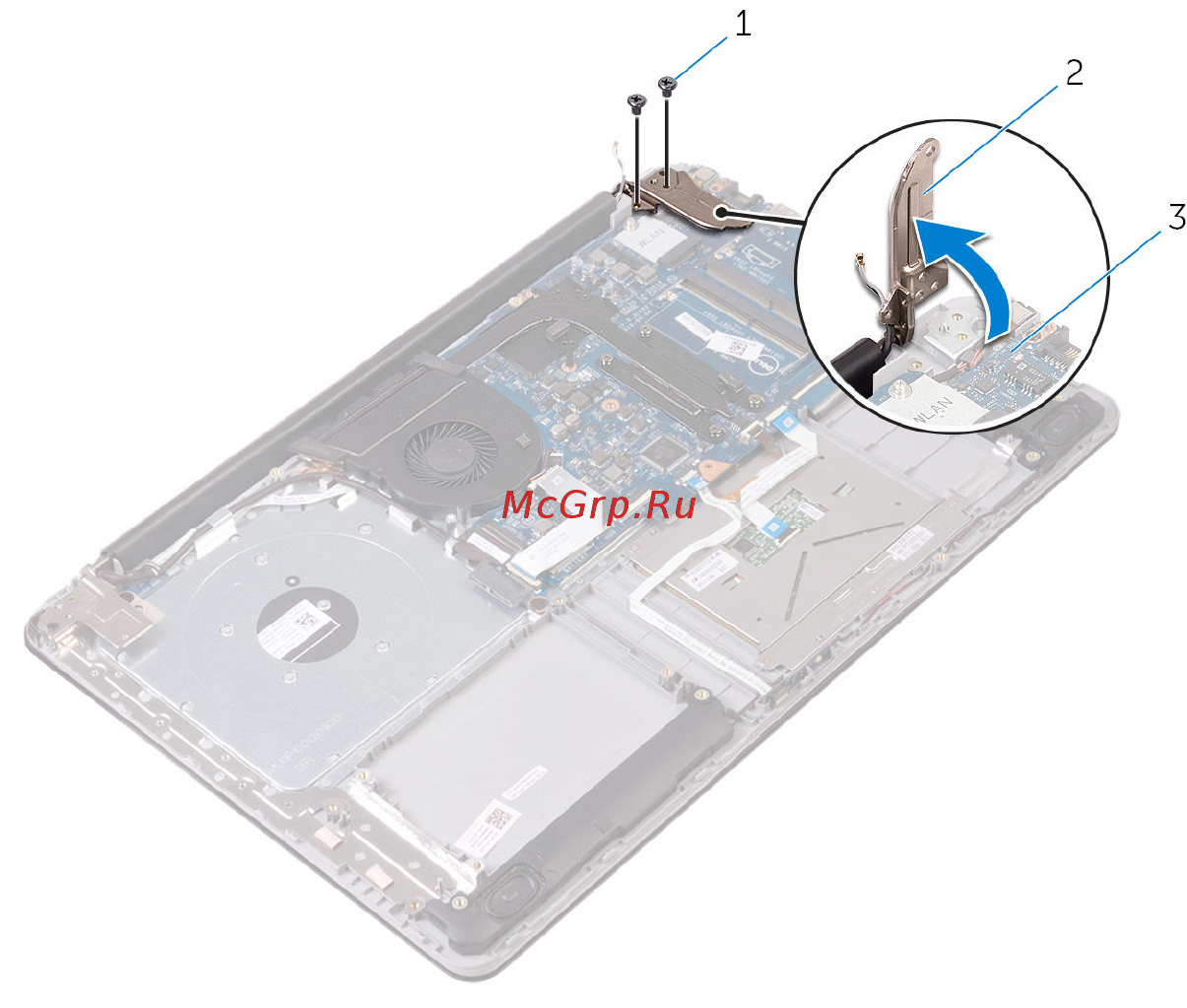

2 Open the right display hinge.
1 M2.5x5 screws (2) 2 right display hinge
3 system board
3 Open the latch and disconnect the display cable from the system board.
4 Lift the latch and pull the optical-drive interposer cable from the system
board and the optical-drive interposer.
5 Open the latch and disconnect the status-light board cable from the
system board.
6 Open the latches and disconnect the touch-pad cable, keyboard
backlight cable, and the keyboard cable from the system board.
56
