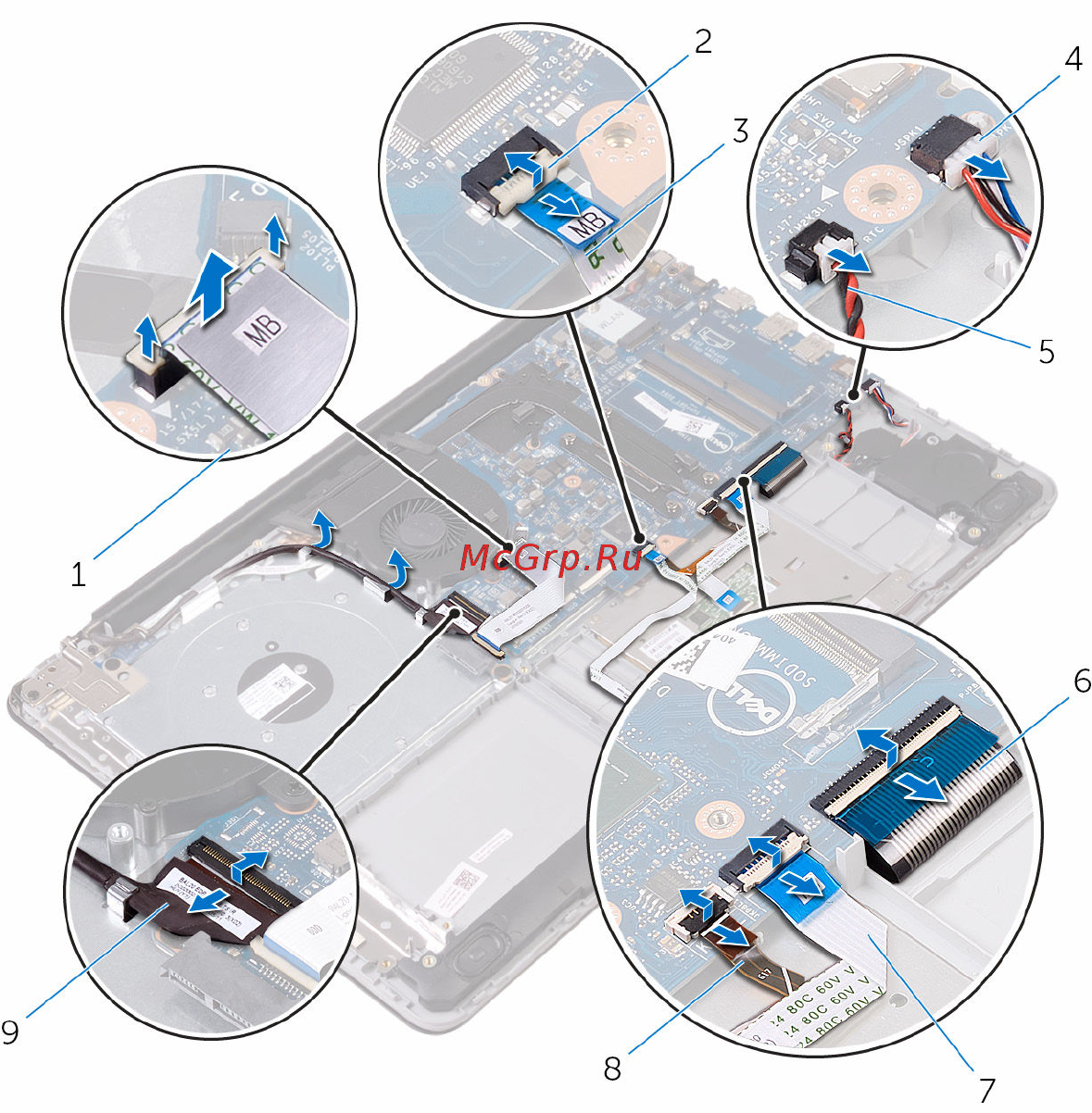

7 Disconnect the speaker cable and coin-cell battery cable from the
system board.
1 optical-drive interposer
cable
2 latches (4)
3 status-light board cable 4 speaker cable
5 coin-cell battery cable 6 keyboard cable
7 touch-pad cable 8 keyboard backlight cable
9 display cable
8 Remove the screws that secures the system board to the palm rest and
keyboard assembly.
9 Remove the screw that secures the heat-sink assembly to the system
board.
57
