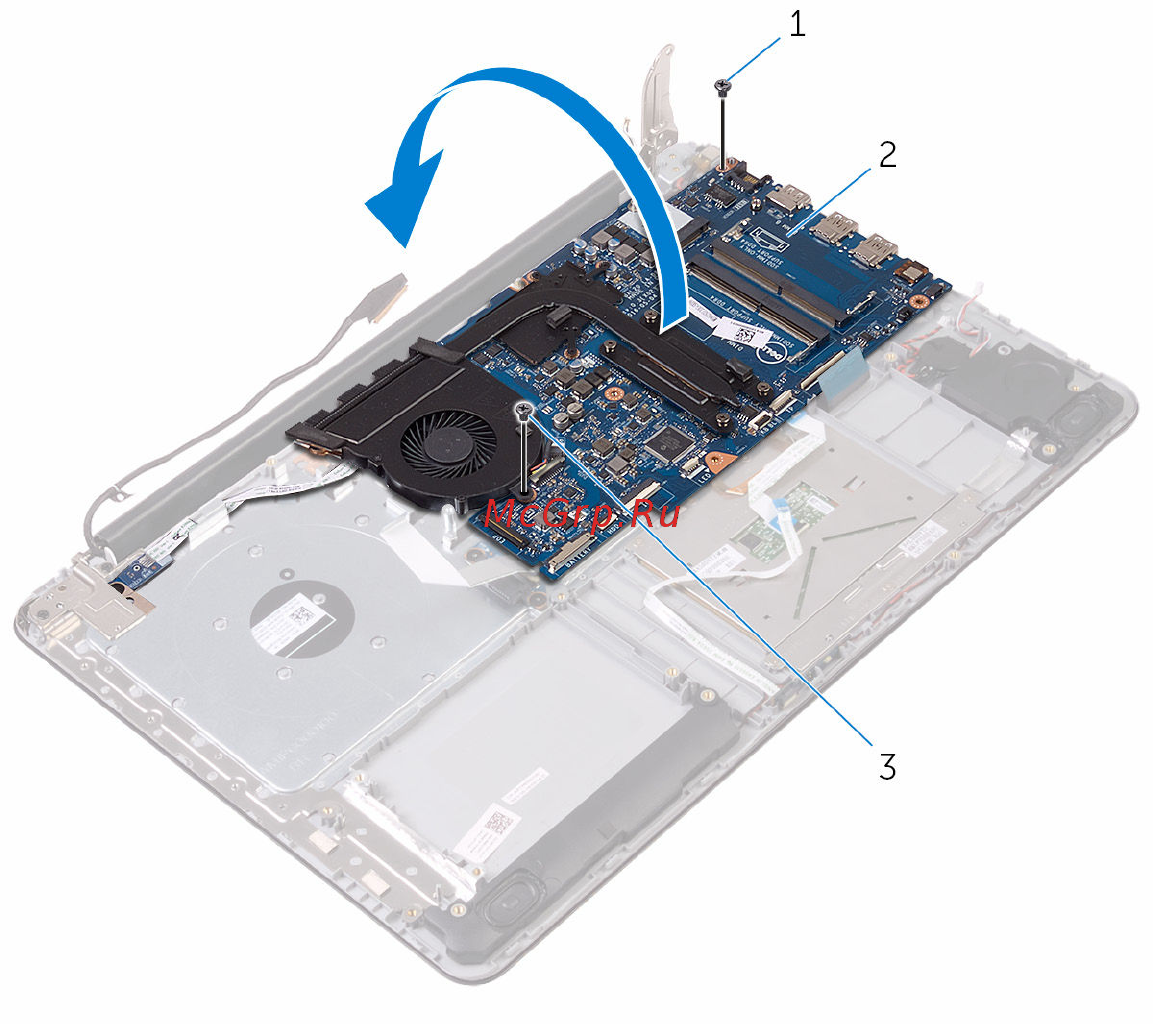

10 Carefully turn the system-board assembly over.
1 M2.5x5 screw 2 system board
3 M2.5x5 screw
11 Lift the latch and pull the power-adapter port cable from the system
board.
12 Disconnect the power-button cable from the system board.
58
