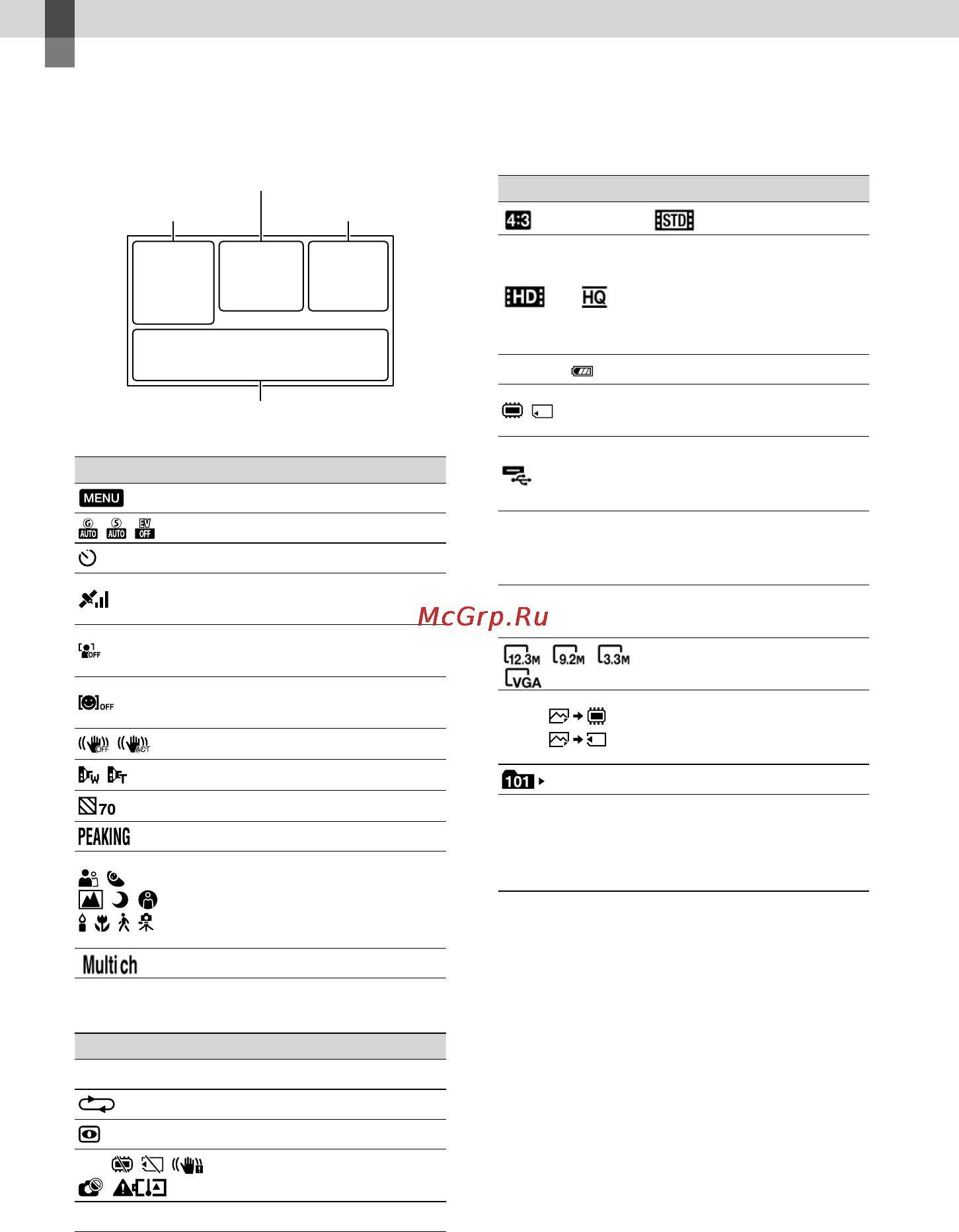

Sony HXR-NX70P [124/132] Screen indicators
![Sony HXR-NX70P [124/132] Screen indicators](/views2/1028732/page124/bg7c.png)
124
GB
Quick reference
Screen indicators
Left
Indicator Meaning
MENU button (74)
My Button (33)
Self-timer recording (82)
GPS triangulating status
(46)
[Face Detection] set to
[Off] (85)
[Smile Shutter] set to [Off]
(85)
SteadyShot (83)
Conversion Lens (83)
Zebra (87)
Peaking (87)
Intelligent Auto (face
detection/scene detection/
camera-shake detection)
(81)
Multichannel audio (103)
Center
Indicator Meaning
[STBY]/[REC] Recording status (31)
Slide show set
NightShot (45)
Warning (105)
Playback mode (36)
Right
Indicator Meaning
Wide Rec (89)
50i
Recording image quality
(HD/STD) (56), frame rate
(50p/50i/25p) (56) and
recording mode (PS/FX/
FH/HQ/LP) (57)
00h00m
Remaining battery
Recording/playback/
editing media (26)
While the camcorder is
connected to an external
media device (66)
00:00:00:00
Time code (hour:minute:
second:frame)/user bit
(47)
00h00m
Estimated recording
remaining time
Photo size (89)
9999
9999
Approximate number of
recordable photos and
photo size
Playback folder
100/112
Current playing movie or
photo/Number of total
recorded movies or photos
(36)
Left Right
Center
bottom
