Advanced operations
Inputting external sound

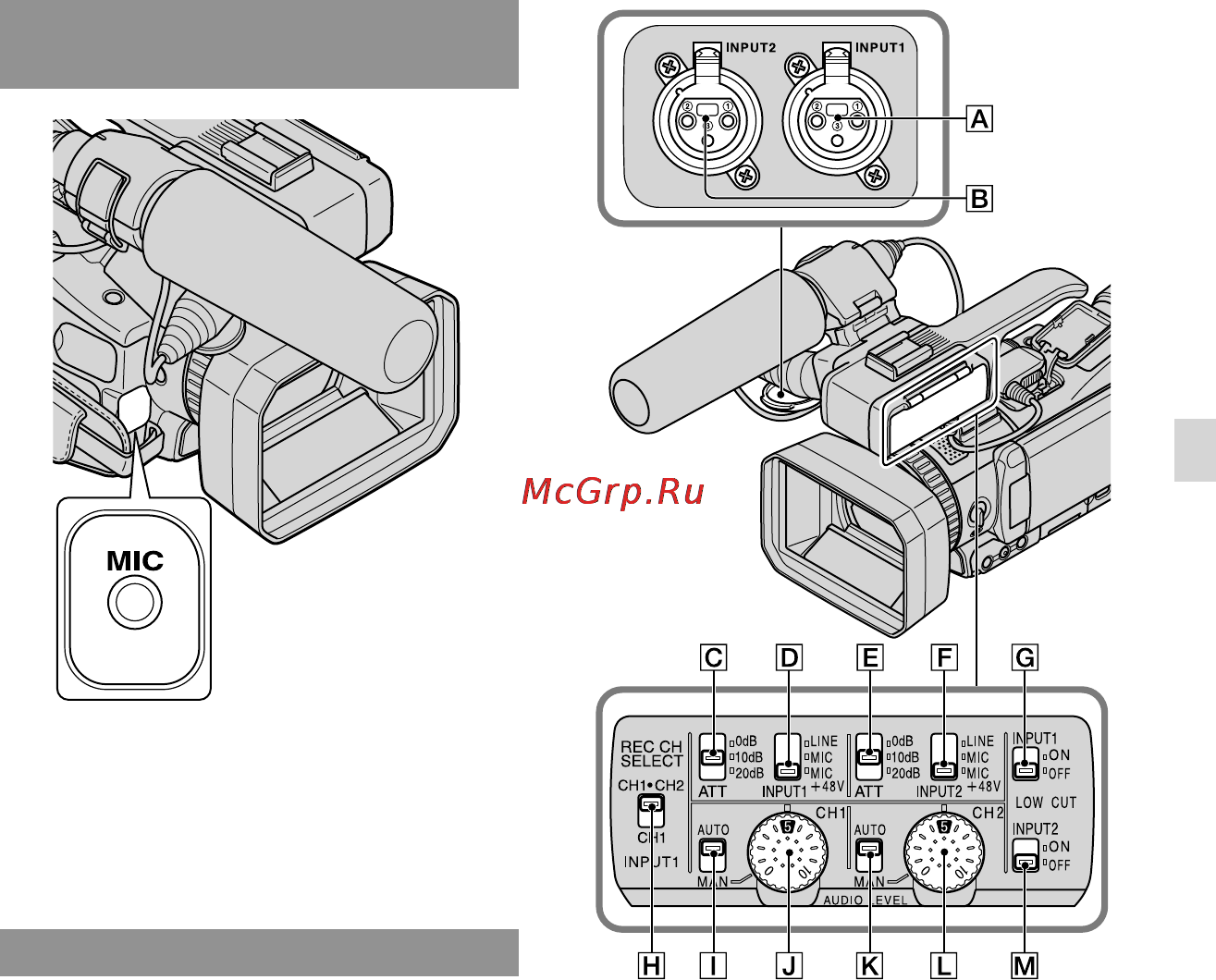

INPUT1 jack
INPUT2 jack
Selecting a sound source
INPUT1 (LINE/MIC/MIC+48V) switch
INPUT2 (LINE/MIC/MIC+48V) switch
Selecting a sound source level
ATT (INPUT1) switch
ATT (INPUT2) switch
Selecting channel setting for recording
REC CH SELECT (INPUT1) switch
Using an external microphone
(sold separately)
When an external microphone is connected
to the MIC input jack, sound is switched to
that of the external microphone.
Sound is not switched during recording.
Using the supplied microphone
Attach the XLR Adaptor when you use the
supplied microphone (ECM-XM1). You can
record monaural sound with the super-
directional microphone.
MIC input jack
