Additional Information

Index to parts and controls

Refer to the pages indicated in parentheses ( ) for details.

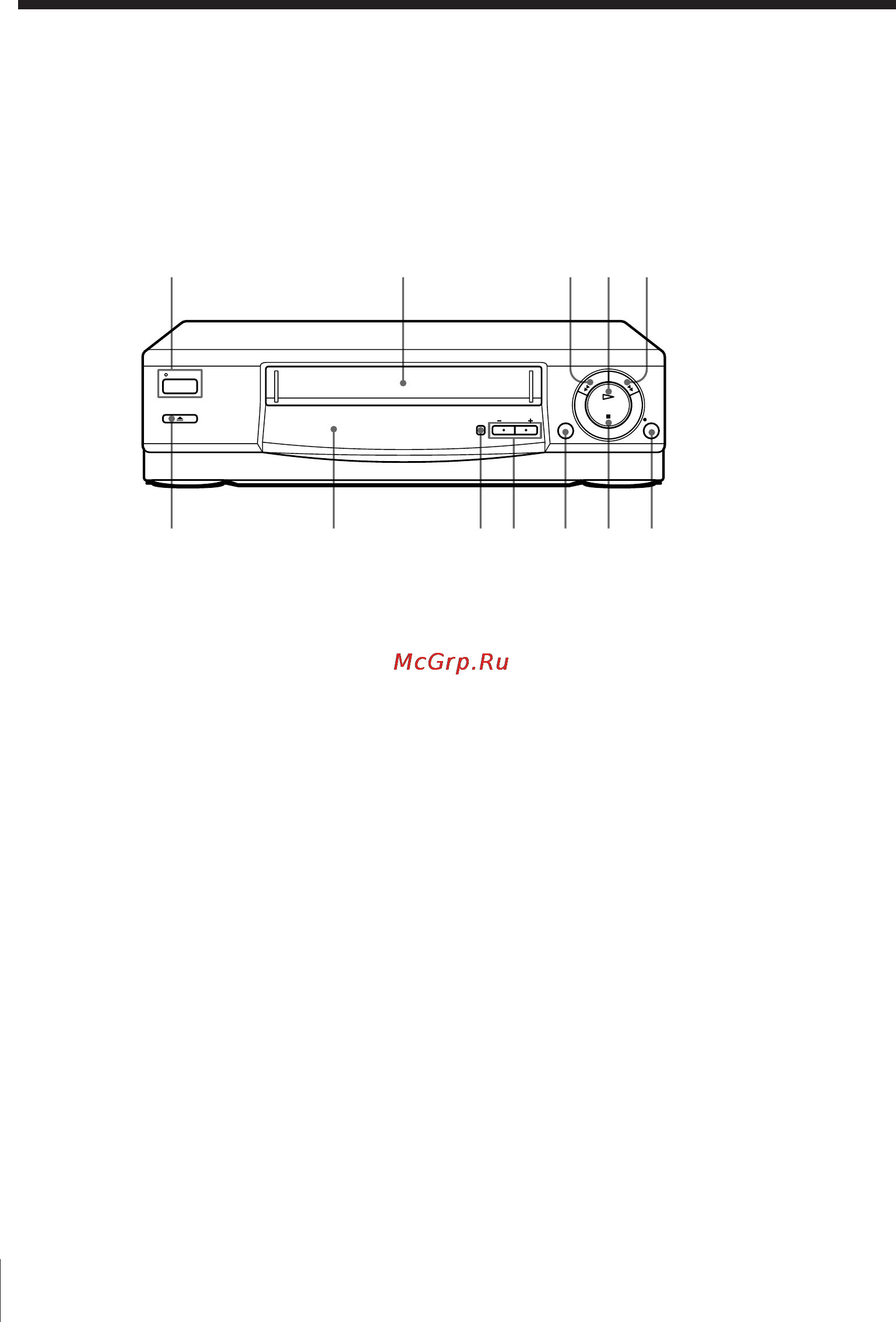

Front panel (SLV-E480EG/E477EG)

1 ON/STANDBY switch/indicator (8)

2 Tape compartment

303 REW (rewind) button (25, 38)

4Æ PLAY button (24, 38)

5)# FF (fast-forward) button (25,

38)

6r REC (record) button (28)

7p STOP button (25)

8P PAUSE button (25)

9 PROGRAM/TRACKING +/–

buttons (28, 43)

!… AUTO SET UP/RF (Radio

Frequency) CHANNEL button (8,

10)

!` Remote sensor (5)

!“ 6 EJECT button (25)
