Additional Information

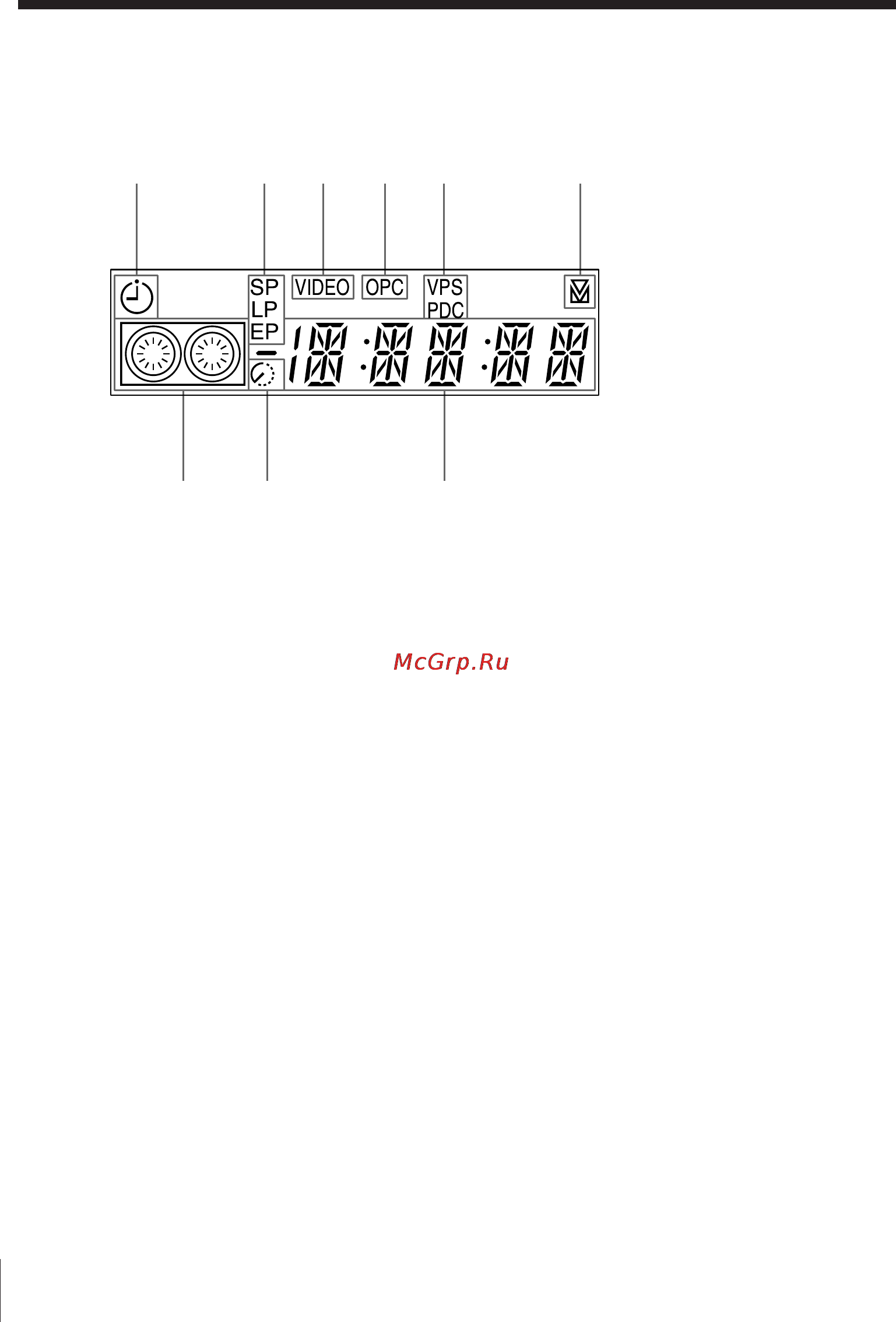

Display window

1 Timer indicator (36, 40)

2 Tape speed indicators (28)

3 VIDEO indicator (29)

4 OPC (Optimum Picture Control)

indicator (43)

5 VPS (Video Programme System)/

PDC (Programme Delivery Control)

indicator (SLV-E380EG only) (33, 37)

6 Tracking indicator (43)

7 Time counter/clock/line/

programme position indicator

(25, 27, 46)

8 Remaining time indicator (29)

9 Tape/recording indicator (28)
