ZENITH W/CARRIER ADAPTER

Содержание

Hx_zenith_carrier_adapter_um_cover_single_paged_2014 11 25_print 1
180 mm 3
Important 3
User manual 3
Ø 10 20 mm 3

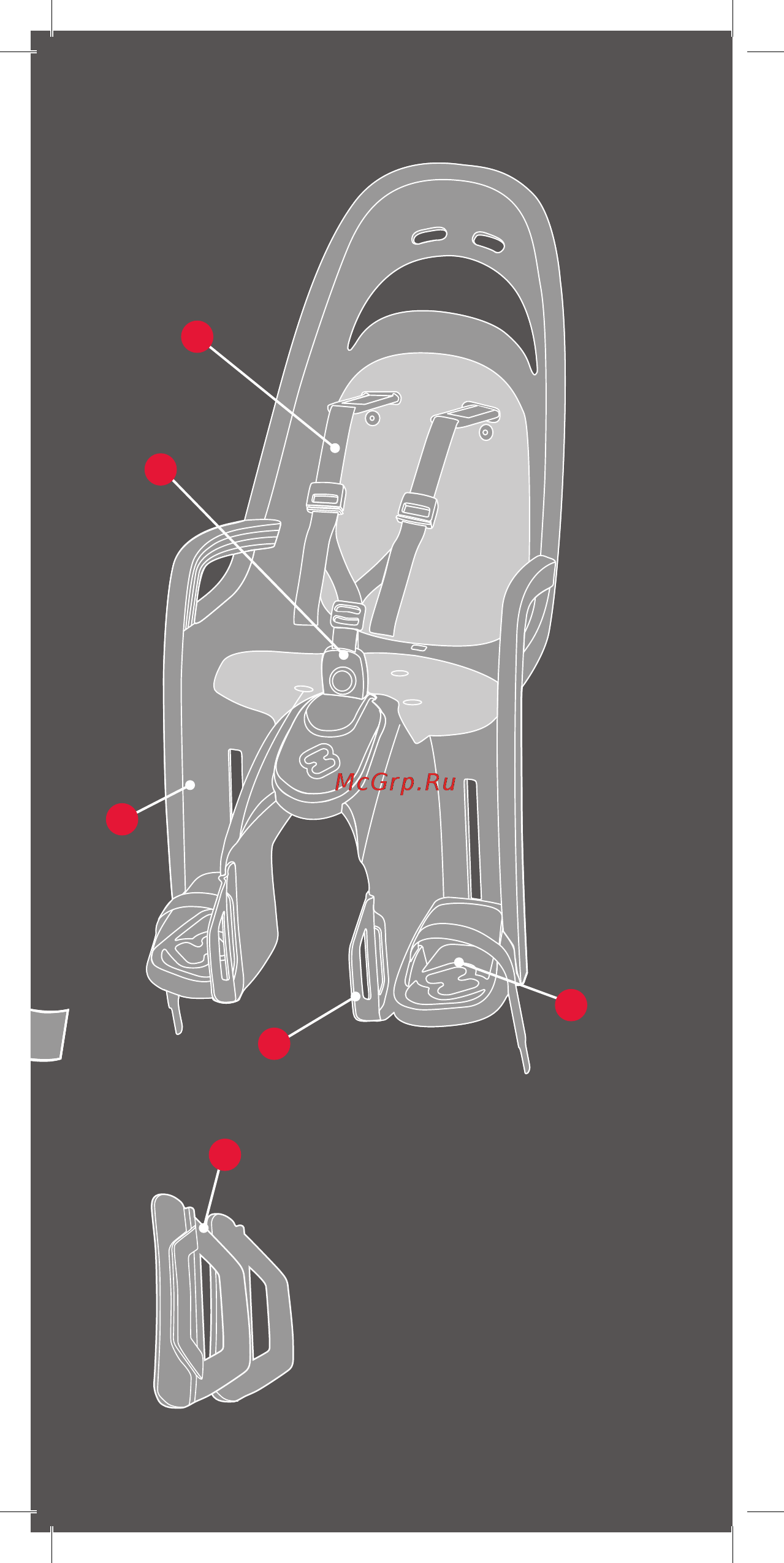

Zenith w carrier adapter 5
Zenith w carrier adapter 6
Hx_zenith_carrier_adapter_um_spreads_2014 11 25_print 9
Manuel de l utilisateur fr 10
Gebrauchsanleitung de 11
Monterings og bruksanvisning no 12
Monterings og bruksanvisning 13
Návod k použití cz 13
Brugervejledning dk 15
Manual del usuario es 16
Käyttöohjeet fi 17
Manual del usuario 17
Korisnički priručnik hr 18
Felhasználói útmutató hu 19
Korisnički priručnik 19
Manuale d uso it 20
Manuale d uso 21
경고 22
사용 22
사용자 설명서 kr 22
설치 22
Gebruikershandleiding nl 23
사용자 설명서 23
유지 보수 23
Instrukcja montażu i użytkowania pl 24
Instrukcja montażu i użytkowania 25
Instruções de utilização pt 25
Manualul utilizatorului ro 27
Руководство пользователя ru 28
Bruksanvisning se 29
Руководство пользователя 29
Uzivatelska prirucka si 30
Návod na použitie sk 31
Ръководство за потребителя bg 33
Kullanım kılavuzu tr 34
Посібник користувача ua 35
Screw the claws outward by turning the knob 5a counterclockwise untill the claws fit around the luggage carrier the knob needs to be pushed in while turning 38
Unscrew the carrier adapter 38
Zenith w carrier adapter 38
Place the seat on the luggage carrier 40
Position the seat 1 as much towards the front as possible while still leaving room for reclining the seat make sure the centre of gravity mark 8 is less than 10 cm behind the rear hub 40
Zenith w carrier adapter 40
Max 10 cm 41
Fasten the seat on the luggage carrier 42
Fix the seat to the luggage carrier by pushing in and turning the knob 5a clockwise until the claws grasp the side tubes of the luggage carrier tighten hard enough to fix the seat securely and prevent it from sliding make it a rule to check this before starting a trip with the bike 42
Zenith w carrier adapter 42
Fasten the additional security strap 44
The additional security strap needs to be secured to the frame or seat post lead the security strap 5c through the holes as shown in pic 1 2 then pull at the end to tighten it if needed the length of the strap can be adjusted 44
Zenith w carrier adapter 44
Foot rest adjustment 46
How to release the foot rest 4 release the footrest handle on the back by flipping it upwards move the foot rest 4 to the preferred height and fasten the foot rest by pressing the foot rest handle down 46
Zenith w carrier adapter 46
Foot strap adjustment 48
How to fasten release the foot strap a to fasten the foot strap put the strap into the track and pull down to preferred length the strap will automatically lock it s only possible to tighten the strap when it is in the track to loosen the foot strap just pull it out of the track 48
Zenith w carrier adapter 48
Extra footguard 50
To mount the extra footguard 6 press the footguard into the fitting grooves until it clicks 50
Zenith w carrier adapter 50
Opposite view 51
Restraint system 52
The restraint system 2 can be attached and detached by pressing in or out the buckle 3 shown in pic 1 it is important to press at the middle of the buckle button pic 2 3 when detaching the restraint system the buckle button needs an adult force to open this is for the safety of the child so they cannot open it 52
Zenith w carrier adapter 52
Ok not ok 53
Pic 2 pic 3 53
Where to push 53
Chest buckle adjustment 54
The restraint system length can be adjusted by adjusting buckle a and b to adjust buckles a b hold the buckle as shown in pic 1 by pressing the red button the belt loosens by pulling the buckle upwards to tighten the restraint system just pull end of the belt straps pic 2 move the buckle c up to secure the belt so it cannot fall down from the child s shoulders pic 3 54
Zenith w carrier adapter 54
Adjust the restraint system 2 adjust the foot rests 4 and fasten foot straps check if the carrier adapter 5 still is secured well and does not slide always wear helmets both child and adult 58
Before embarking on a bicycle trip 58
Nb never leave your child alone in the bicycle child seat please note that the kick stand is not a suitable support to hold the bicycle with a child in the seat 58
Zenith w carrier adapter 58
How to remove the carrier adapter 62
The carrier adapter for luggage carrier mounting can be taken off the zenith seat and can be replaced by a carrier bow to do this you need to take the seat off the carrier adapter unscrew the knob 5a by pushing it in and turning counterclockwise until the seat is loose enough to take off 62
Zenith w carrier adapter 62
How to remove the carrier adapter 66
Turn the seat 1 upside down twist the locking pin 5b to the unlocked position pic 1 then push it through from the opposite side of the seat while pulling it out pic 2 3 66
Zenith w carrier adapter 66
How to remove the carrier adapter 68
You can now separate the seat 1 and carrier adapter 5 by lifting off the carrier adapter 68
Zenith w carrier adapter 68
Changing to a carrier bow 70
For detailed instructions and illustrations to each step please see our website www hamax com 70
Mount the carrier bar to the seat insert the carrier bow through the holes lengthwise under the seat base insert a carrier bow locking pin note that this is a different part than the carrier adapter locking pin through the holes under the seat base keeping it in unlocked position to allow final adjustment insert the carrier bow into the fastening bracket on the bicycle and adjust the correct lengthwise position max 10 cm between the centre mark on the seat and the rear hub after adjustment lock the seat by turning the locking pin to locked position 70
Zenith w carrier adapter 70
