21

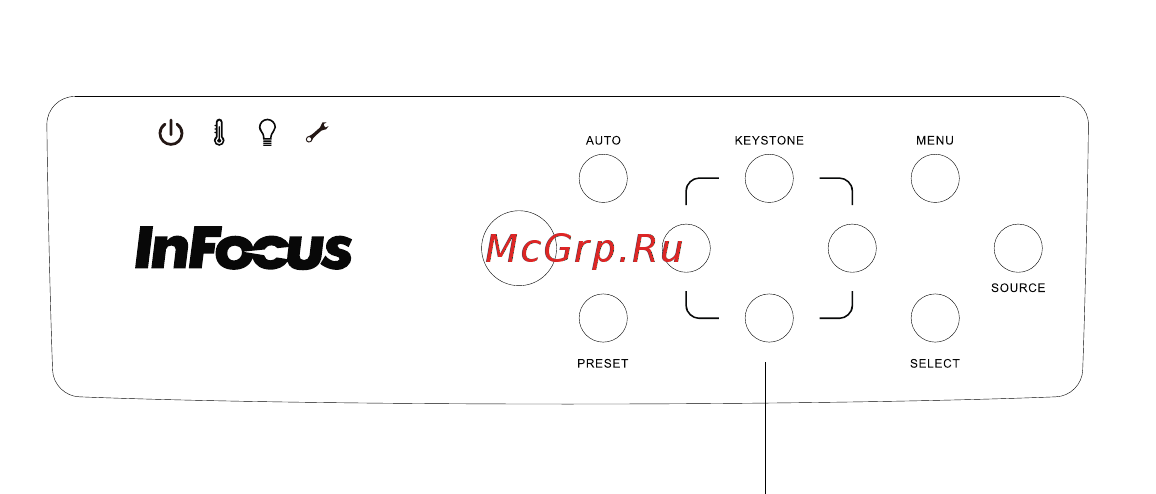

Using the keypad buttons
Most buttons are described in detail in other sections, but here is an overview of
their functions:
Power–turns the projector on and off (page 8).
Auto - Resynchronizes the projector to the source.
Preset - Toggles between the projector presets.
Right arrow - When the menu or LightCast is displayed, the right arrow button is
used for navigating.
Up arrow/Keystone - When the menu or LightCast is displayed, the up arrow but-
ton is used for navigating. When the menu is not displayed, this button adjusts the
squareness of the image (page 9).
Down arrow/Keystone - When the menu or LightCast is displayed, the down
arrow button is used for navigating. When the menu is not displayed, this button
adjusts the squareness of the image (
page 9).
Left arrow - When the menu or LightCast is displayed, the left arrow button is
used for navigating.
Menu - Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD
menu, exits and saves menu settings.
Select - Activates the selected On-Screen Display (OSD) menu item and selects
highlighted items in LightCast.
Source - Brings up a menu of available sources.
menu navigation
buttons
