3
Important Operating Considerations for Safety
• Refer to this guide for proper startup and shutdown procedures.
• Follow all warnings and cautions in this manual and on the projector.
• Locate the projector at least 4' (1.2m) away from any heating or cooling vents.
• Do not block ventilation openings. Locate the projector in a well-ventilated area
without obstructions to intake or exhaust vents. Do not place the projector on a
tablecloth or other soft covering that may block the vents.
• Do not place the projector in direct sunlight, humid, greasy or dusty places or in places
where the projector may come into contact with smoke or steam.
• Do not touch or block the projector lens with any objects as this can damage the
projector lens. Scratches, gouges and other lens damage are not covered by the
product warranty.
• Do not look directly into the lens while the projector is being used.
• Do not drop the projector.
• Do not spill liquid on the projector. Spilled liquid may damage the projector.
• Use the power cord provided. Connect the power cord to a receptacle with a
protective safety (earth) ground terminal. A surge-protected power strip is
recommended.
• Do not overload wall outlets.
• When disconnecting the power cord, hold the plug, not the cord.
• Wash hands after handling the cables supplied with this product.
• The projector remote control uses batteries. Make sure the batteries’ polarity (+/-) is
aligned correctly. Dispose of used batteries in accordance with local disposal laws.
• If you choose to install the projector on the ceiling, allow for proper ventilation. The
projector warranty does not cover any damage caused by using a second source
mounting kit or by installing in an improper location.
• When the projector is ceiling mounted, wear protective eyewear to prevent eye injury
before opening lamp door.
• Refer all service to qualified service personnel. Servicing your own projector can be
dangerous to you and will void the warranty.
• Only use replacement parts specified by InFocus. Unauthorized substitutions may
result in fire, electrical shock, or injury, and may void the warranty.
• Only genuine InFocus lamps are tested for use in this projector. Use of non InFocus
lamps may cause electrical shock and fire, and may void the projector warranty.
• Hg – Lamp contains mercury. Manage in accordance with local
disposal laws. See www.lamprecycle.org.
• The projector uses a high-pressure mercury glass lamp. The lamp may fail prematurely,
or it may rupture with a popping sound if jolted, scratched, or handled while hot. The
risk of lamp failure or rupture also increases as the lamp age increases; please replace
the lamp when you see the “Replace Lamp” message.

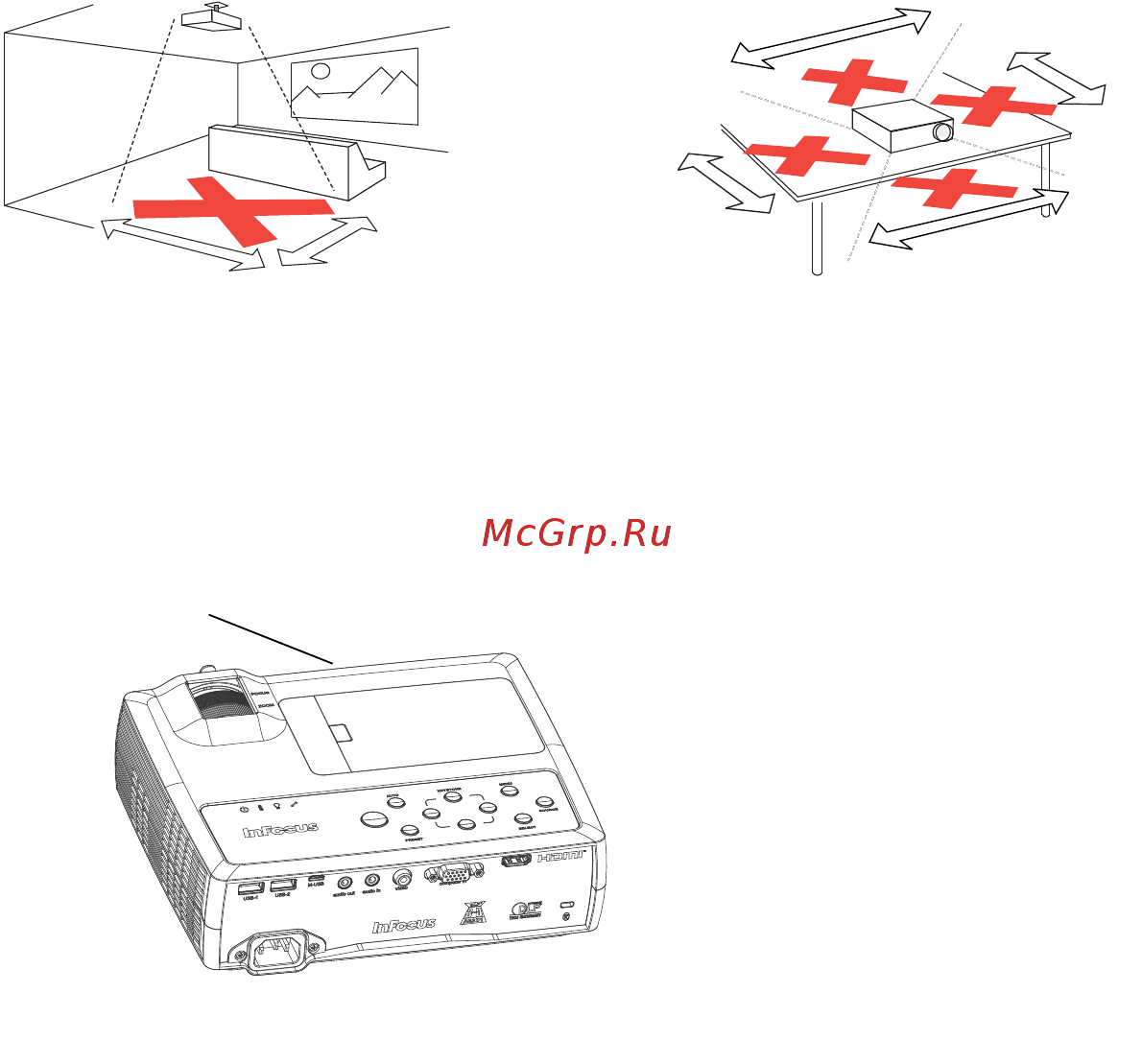

• In the unlikely event of a lamp rupture, particles may exit through the projector vents.
Please keep people, food, and drinks at least 3’ (1m) away from all projector vents. For
ceiling applications, keep people, food and drinks out of the "keep out" area under and
around the projector, as indicated by the illustration.
Follow these instructions to help ensure image quality and lamp life over the life of the
projector. Failure to follow these instructions may affect the warranty. For complete details
of the warranty, see the Warranty Booklet.
After projecting the front of the projector can get uncomfortably warm. Please handle the
projector from the rear or left side.
5
’
/1.5m
8
’
/2.4m
3’ / 1 m
3’ / 1 m
3’ / 1 m
3’ / 1 m
Attention: Hot
