InFocus IN1116 [6/36] Connector panel
![InFocus IN1116 [6/36] Connector panel](/views2/1298380/page6/bg6.png)
5

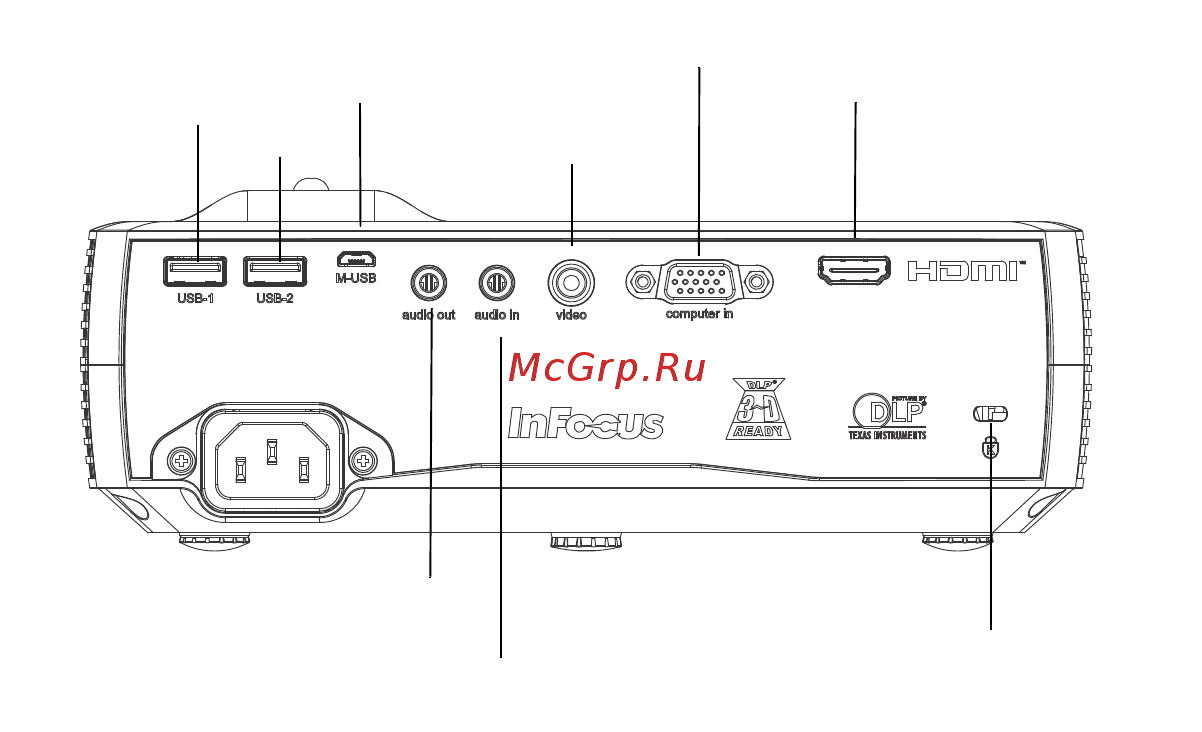

Connector panel
The projector provides both computer and video connection options.
• USB type A (2): for standard wireless mouse/keyboard, USB storage devices
to be accessed by LightCast.
• M-USB type B for firmware upgrades, slide advance and Screen Saver
prevention
• Audio output for external speakers
• Audio input for video and computer sources
• Video
• VGA computer
•HDMI
Computer
M-USB
Audio Out
security lock
HDMI
USB A
USB A
Audio In
Video
