7
Connecting a computer source
VGA connection
Connect one end of the provided computer cable to the Computer In connector
on the projector and the other to the VGA connector on your computer. If you
are using a desktop computer, you will need to disconnect the monitor cable from
the computer’s video port first.
HDMI connection
HDMI is a standard, uncompressed, all-digital audio/video interface. HDMI
provides an interface between sources, such as set-top boxes, DVD players, and
receivers and your projector. Plug an HDMI cable into the video-out connector on
the video device and into the HDMI connector on the projector.
Connecting power
Connect the black power cord to the Power connector on the rear of the
projector and to your electrical outlet. The Power LED turns steady amber. By
default, the Power Saving feature is off. You can change the setting, see page 27.
NOTE: Always use the power cord that shipped with the projector.
Optional computer connections
To get sound from the projector, connect an audio cable (optional cable, not
included) to your computer and to the Audio In connector on the projector. You
may also need an adapter.

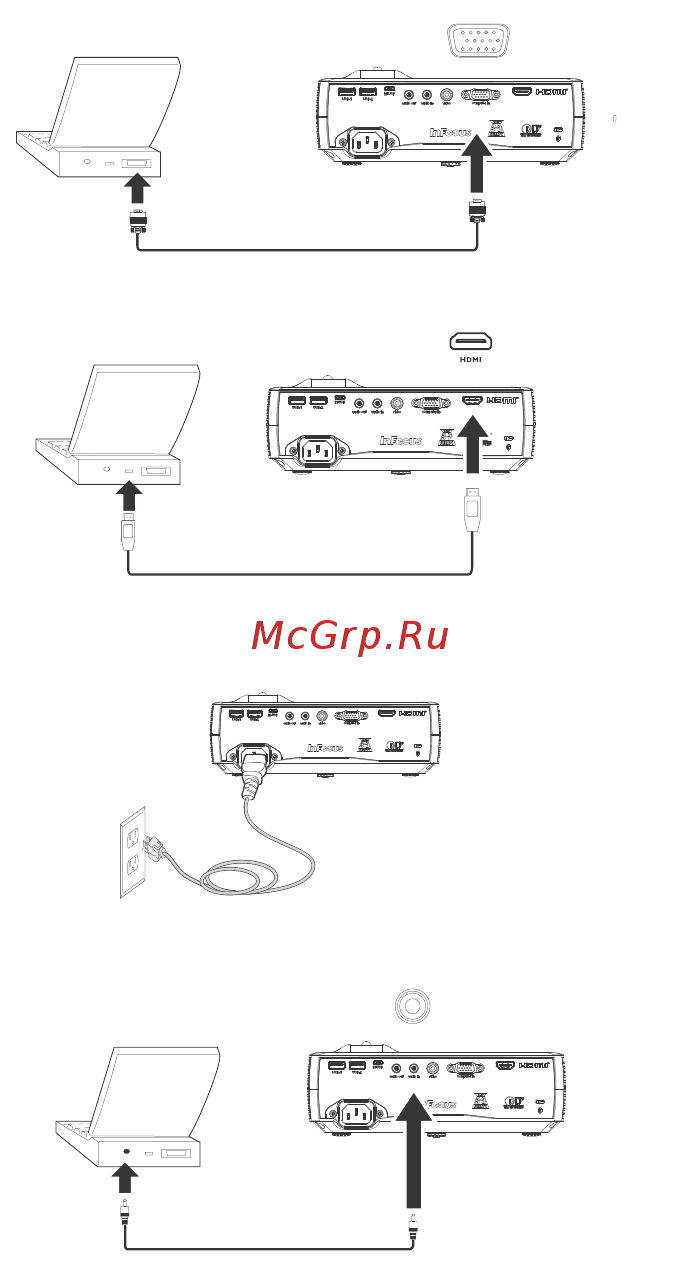

connect VGA cable
connect HDMI
connect power
connect audio cable
