INSTALLATION

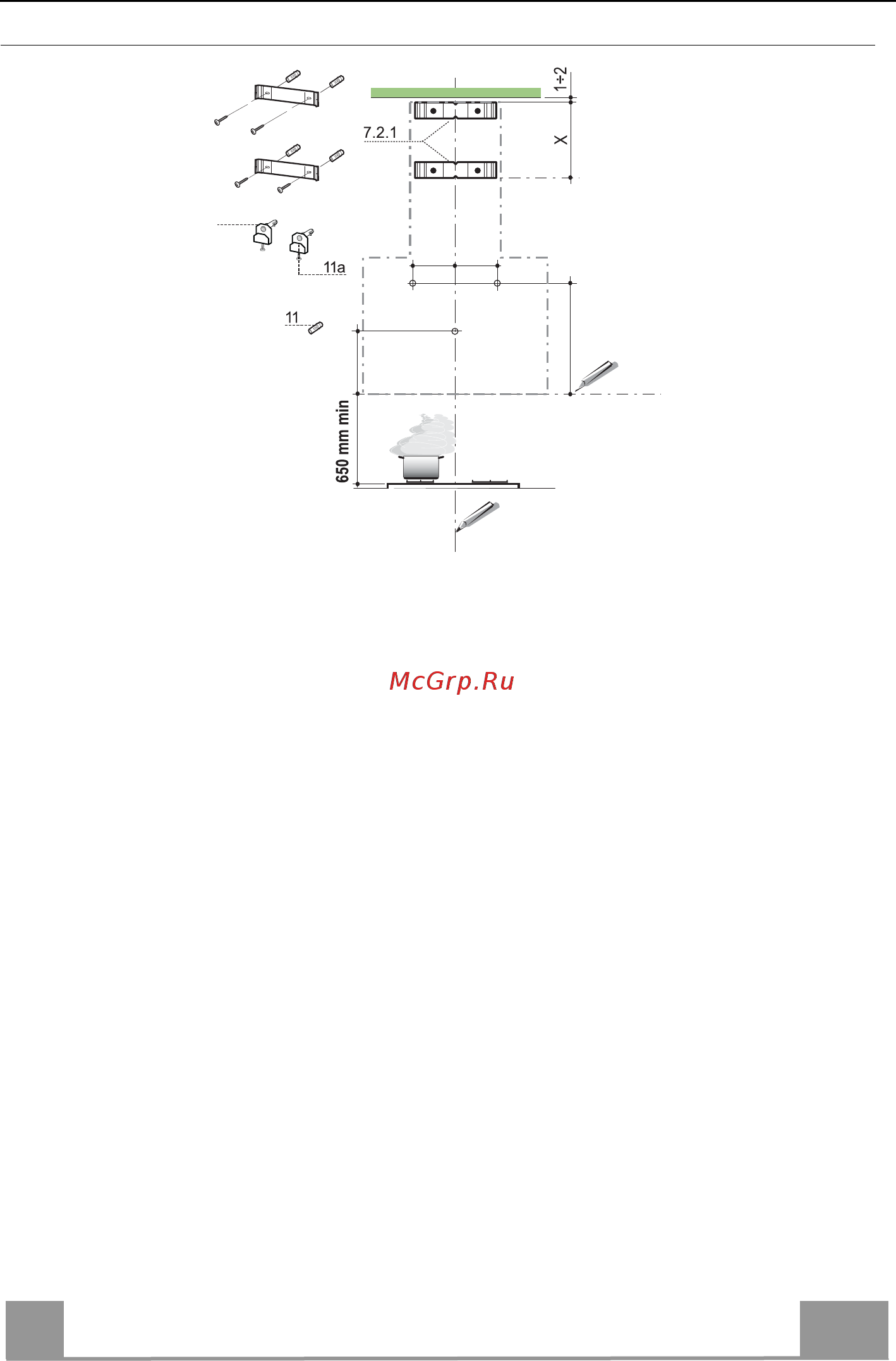

Drilling the Wall

373

105

150 150

12a

Mark the following on the wall:

• a vertical line up to the ceiling or surface above the hood, at the centre of the area in which

the hood itself is to be fitted;

• a horizontal line at: 650 mm min. above the Hob;

• Rest the Bracket 7.2.1 as indicated, 1-2 mm from the ceiling or surface above the hood,

aligning its centre (grooves) with the vertical reference line.

• Mark the centres of the holes in the bracket.

• Rest the Bracket 7.2.1 as indicated, X mm under the first bracket (X = height of the Upper

chimney provided), aligning its centre (grooves) with the vertical reference line.

• Mark the centres of the holes in the bracket.

• Mark a reference point as indicated at 105 mm from the horizontal reference line.

• Drill the points marked using an ø 8 mm bit.

• Insert the plugs 11 into the holes.

• Fix the Brackets, using the screws 12a (4.2 x 44.4) provided.

• As indicated above, mark a reference point 373 mm above the horizontal reference line, and

150 mm to the right of the vertical reference line.

• Repeat this operation on the opposite side, checking to ensure it is level.

• Drill the points marked using an ø 12 mm bit.

• Insert the plugs, screws and bracket 11a into the holes, and fasten.
