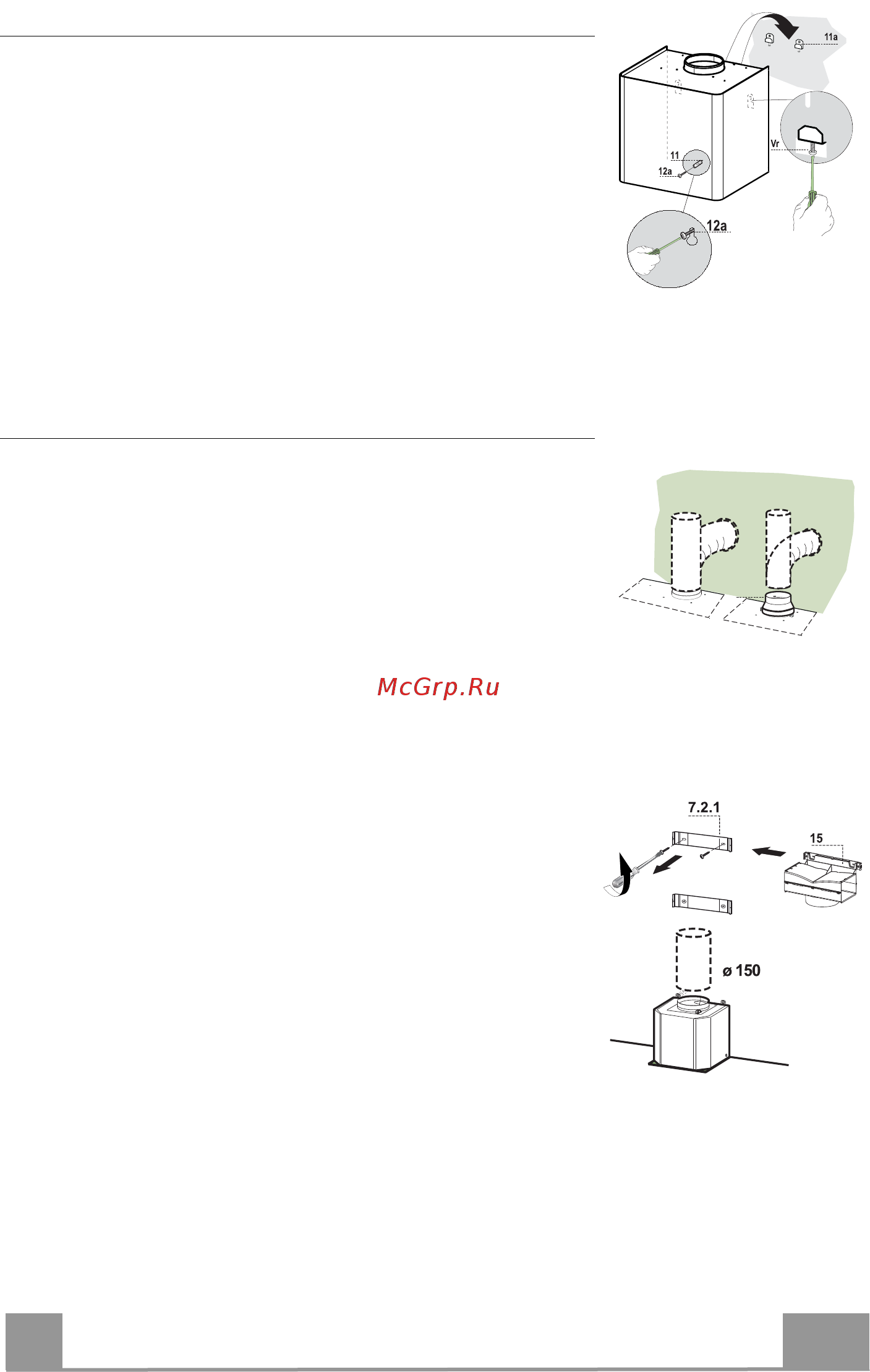

Mounting the hood body

• Remove the metal grease filters by turning the handles pro-

vided.

• Adjust the two screws Vr, on brackets 11a, to a minimum.

• Hook the hood canopy onto the two brackets 11a.

• From inside the hood canopy, adjust the screws Vr to set the

Hood Canopy level.

• Tighten the safety screws 12a.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe ø 150 or 120 mm,

the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the re-

ducer flange 9 on the hood body outlet.

• Fix the pipe in position using sufficient pipe clamps (not sup-

plied).

• Remove possible charcoal filters.

ø 150

ø 120

AIR OUTLET – RECIRCULATION VERSION

• Unfasten the 2 screws fixing the upper bracket 7.2.1.

• Fasten the air outlet connector 15 in its place, using the 2

screws removed as above.

• Join the Connector 15 to the Hood canopy outlet using a rigid

or flexible pipe ø150 mm, selection of which is at the

discretion of the installation technician.

• Make sure that the Activated charcoal odour filter has been

fitted.
